Hardware Specifications

Vendor/Brand	HiSense
Model	LTF7263-BH+
ODM	HiSense
ODM Product Code	LTF7263-BH+
Chipset	Cortina CA8271S
Flash	MT29F1G01ABAFDWB 128MB
RAM	128MB
CPU	Taroko V0.2 (MIPS)
CPU Clock	500MHz
Bootloader	SATURN uboot
System	Custom Linux by Cortina (Saturn SDK) based on Kernel 4.4 Saturn-sfpplus-r1
2.5GBaseX	Yes (Custom firmware only)
XGMII/XSGMII	Yes
Optics	SC/UPC
IP address	192.168.0.1
Web Gui	✅ Oliginal firmware : user admin, password system / Custom firmware : user admin, password admin
SSH	✅ Oliginal firmware : user root, password hbmtsfp / Custom firmware : user root, password ca8271
Telnet	✅ Oliginal firmware : user root, password hbmtsfp / Custom firmware : user root, password ca8271
Serial	✅
Serial baud	115200
Serial encoding	8-N-1
Form Factor	miniONT SFP

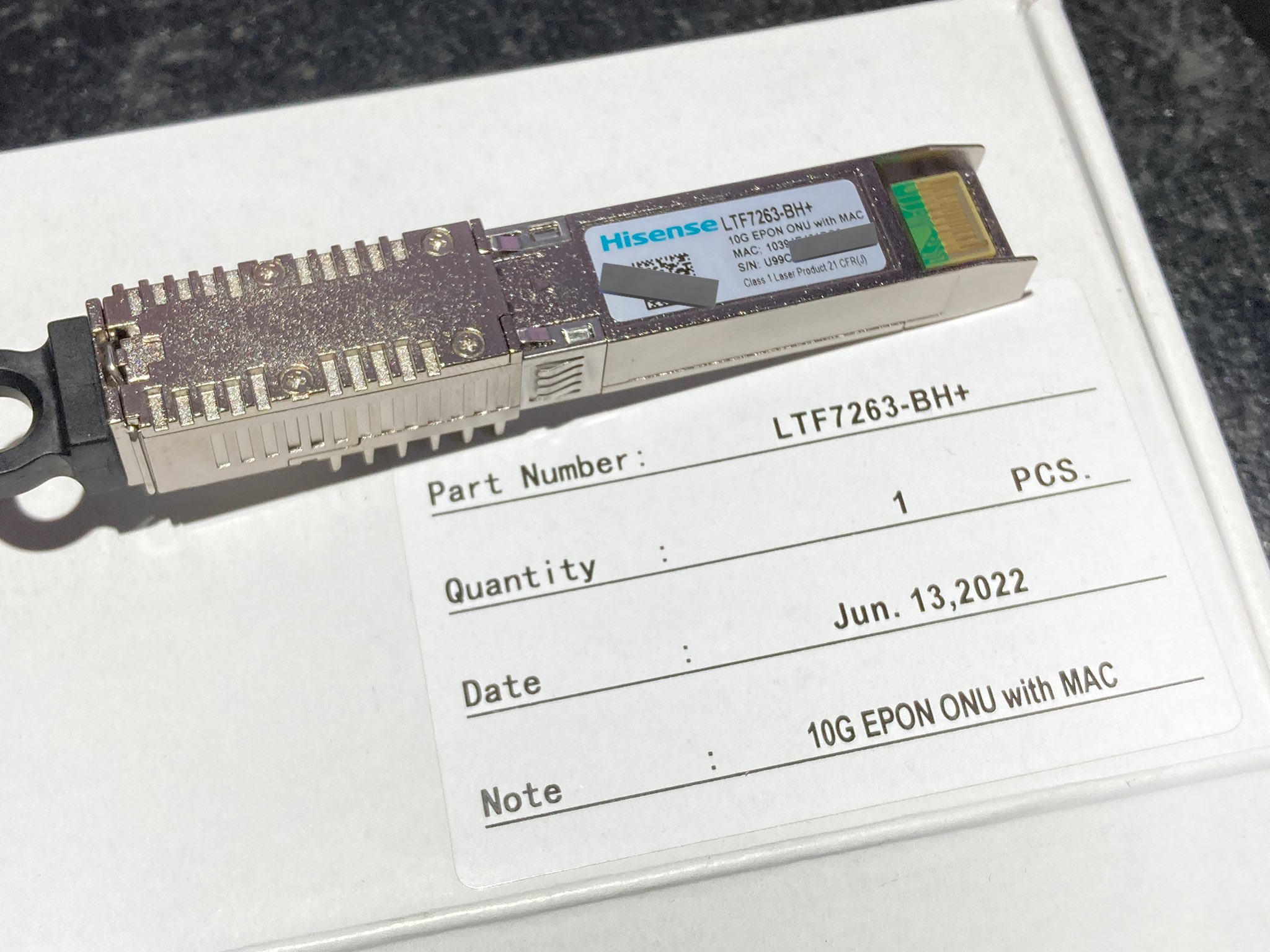

LTF-7263-BH front plate

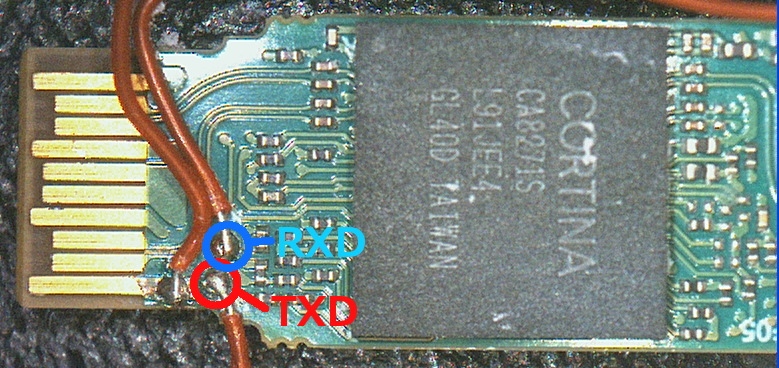

Serial

The stick has a TTL 3.3v UART console (configured as 115200 8-N-1) that can be accessed from the top surface. It’s near the SFP header. TX, RX and ground pads need to be connected to a USB2TTL adapter supporting 3V3 logic.

LTF-7263-BH UART

Custom firmware is interchangeable with

The custom firmware is compatible with the following.

• CIG XG-99S (GPON)
• ECIN EN-XGSFPP-OMAC v1 (GPON)
• FS XGS-ONU-25-20NI (GPON)
• Hisense LTF-7267-BH+ (GPON)
• CIG XE-99S
• Hisense LTF-7263-BH+

Firmware versions

Original firmware (SIEPON Package-C)

• 20210421024332

Custom Firmware (SIEPON Package-A)

• v1.0.0
• v1.1.0
• v1.2.0
• v1.3.0

Custom firmware files

• Firmware repository by YuukiJapanTech

List of partitions

dev	size	erasesize	name
mtd0	00040000	00020000	"ssb"
mtd1	00100000	00020000	"uboot-env"
mtd2	00100000	00020000	"dtb0"
mtd3	00600000	00020000	"kernel0"
mtd4	02800000	00020000	"rootfs0"
mtd5	00100000	00020000	"dtb1"
mtd6	00600000	00020000	"kernel1"
mtd7	02800000	00020000	"rootfs1"
mtd8	01400000	00020000	"userdata"

This ONT supports dual boot.

kernel0 and rootfs0 respectively contain the kernel and firmware of the first image, kernel1 and rootfs1 the kernel and firmware of the second one.

Usage

Configure IP Address

Set your PC’s IP address to 192.168.0.5/24

Download Custom Firmware

Download the following firmware files and place them on a TFTP server (e.g., 3CDaemon):

• SIEPONA_rootfs.bin
• SIEPONA_kernel.bin

Log in to the Stick root shell

$ ssh root@192.168.0.1
root@192.168.0.1's password: hbmtsfp

root@saturn-sfpplus-eng:~#

Upload Firmware to the Stick

Run the following commands to download the firmware via TFTP:

cd /tmp
tftp -r SIEPONA_kernel.bin -g 192.168.0.5
tftp -r SIEPONA_rootfs.bin -g 192.168.0.5

Reset Configuration

mkdir /userdata/upper
rm -r /overlay/upper/*

Flash the Firmware

Execute the following commands to write the firmware:

flash_erase /dev/$(awk -F: '$2 ~ /"kernel1"/ {print $1}' /proc/mtd) 0 0
nandwrite -p /dev/$(awk -F: '$2 ~ /"kernel1"/ {print $1}' /proc/mtd) /tmp/SIEPONA_kernel.bin
flash_erase /dev/$(awk -F: '$2 ~ /"rootfs1"/ {print $1}' /proc/mtd) 0 0
nandwrite -p /dev/$(awk -F: '$2 ~ /"rootfs1"/ {print $1}' /proc/mtd) /tmp/SIEPONA_rootfs.bin

flash_erase /dev/$(awk -F: '$2 ~ /"kernel0"/ {print $1}' /proc/mtd) 0 0
nandwrite -p /dev/$(awk -F: '$2 ~ /"kernel0"/ {print $1}' /proc/mtd) /tmp/SIEPONA_kernel.bin
flash_erase /dev/$(awk -F: '$2 ~ /"rootfs0"/ {print $1}' /proc/mtd) 0 0
nandwrite -p /dev/$(awk -F: '$2 ~ /"rootfs0"/ {print $1}' /proc/mtd) /tmp/SIEPONA_rootfs.bin

Reboot the Stick

Reboot or power off the device:

reboot

The reboot process takes approximately 180 seconds. If an error occurs with the reboot command, simply turn off the power.

Access the Web UI

Open the following URL in your browser:

• http://192.168.0.1

User	Password
admin	admin

Set PON MAC Address

From the menu, select "PON MAC Address" and configure the EPON MAC address of your ONT.

Configure Forced Bridge Mode

From the menu, select "Forced Bridge mode" and enable it.

Reboot the Stick

Select "Reboot" from the menu. The reboot process takes approximately 180 seconds.

Connect the Fiber

Connect the ISP fiber cable to the stick.

ONT Authentication

Once authentication is successful, the "PON" and "AUTH" status indicators under the "Status" menu will show "OK". At this point, the stick is successfully connected to the ISP network.

EPON ONT status

Getting the operational status of the ONT

Check the ONT Registration State with the following command:

ca-iros-> wca_epon_mpcp_registration_status_get -device_id 0 -port_id 0x20007 -llid 0
[deregistration_cause = 0]
[mpcp_llid = 65535]
[olt_mac_addr = 00:00:00:00:00:00]
[reg_state = 0]
[retry_times = 0]
Return Value : 0 - CA_E_OK
0

Check the ONT auth state with the following command:

ca-iros-> wca_epon_llid_traffic_enable_get -device_id 0 -port_id 0x20007 -llid 0x0
[downstream = 1]
[upstream = 1]
0

EPON/OAM TLV settings

The LTF7263-BH+ Custom firmware uses a web UI for configuration.

• http://192.168.0.1

User	Password
admin	admin

Getting/Setting ONT EPON MAC Address

Menu > PON Setup > PON MAC Address

Getting/Setting OAM firmware version (TLV D7/03)

Menu > TLV Setup > Firmware Info (D7/03)

Getting/Setting OAM chipset info (TLV D7/04)

Menu > TLV Setup > Chipset Info (D7/04)

Getting/Setting OAM manufacture date (TLV D7/05)

Menu > TLV Setup > Date of Manufacture (D7/05)

Getting/Setting OAM manufacture info (TLV D7/06)

Menu > TLV Setup > Date of Manufacture Info (D7/06)

Getting/Setting OAM vendor Name (TLV D7/11)

Menu > TLV Setup > Vendor Name (D7/11)

Getting/Setting OAM model Name (TLV D7/12)

Menu > TLV Setup > Model Number (D7/12)

Getting/Setting OAM hardware version (TLV D7/13)

Menu > TLV Setup > Hardware Version (D7/13)
