Hardware Specifications
| Vendor/Brand | YOTC |
| Model | M2-2050-G40 |
| Chipset | Realtek RTL9607C / RTL9607Cv2 |
| Flash | SPI NAND 128MB |
| RAM | 256MB |
| CPU | Formosa MIPS interAptiv (multi) V2.0 |
| CPU Clock | 900MHz / 1150MHz |
| BogoMIPS | 597.60MHz / 766.77MHz |
| System | Linux 4.4.140 (GCC Realtek MSDK-4.8.5p1 Build 3068) |
| Ethernet ports | 2x1G |
| Optics | SC/APC |
| IP address | 192.168.1.1 or 192.168.8.1 |
| Web Gui | ✅ user super, password opticalink OR user User, password User |
| Telnet | ✅ user super, password opticalink OR user User, password User |
| SSH | NO |
| Serial baud | 115200 |
| Serial encoding | 8-N-1 |
| Form Factor | ONT |

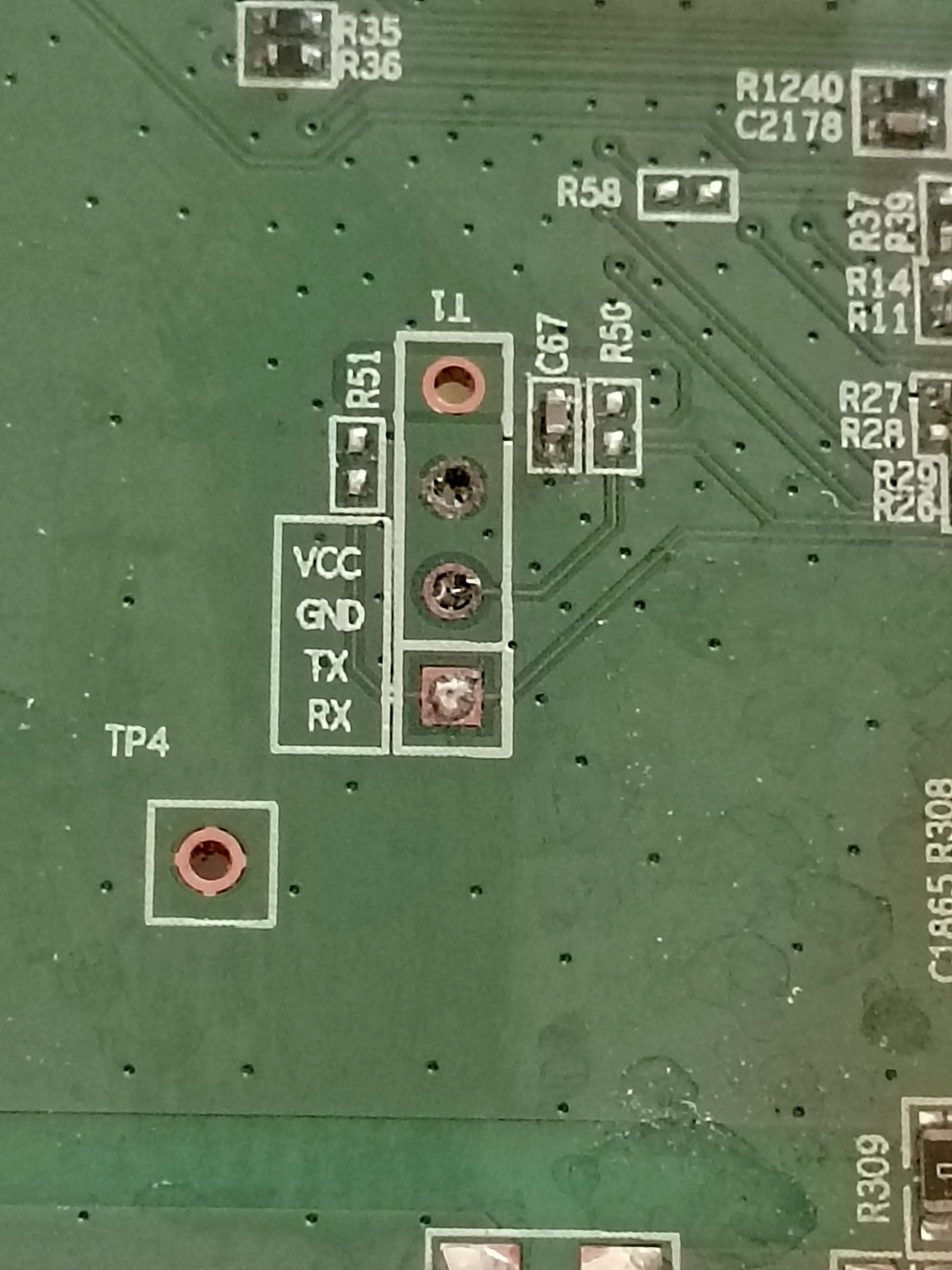

Serial
M2-2050-G40 boot dump
txt
Bismarck Preloader 3.7
II: LPLR:11267 PLR:5cb134c9 BD:24031315 TK:msdk-4.8.5-1004k-EB-3.18-u0.9.33-m32t-150818
II: TLB initial done:
.ro section works!
.text and .ro sections work!
II: cg_cpu_pll_init done
II: cg_sram_pll_init done
II: CPU0 900MHz, CPU1 500MHz, DDR3 600MHz, LX 200MHz, SRAM 500MHz, SPIF 100MHz
AK: ******* DRAM calibration version: v5.6 *******
AK: MEMPLL[31/63/95/127/159/191/223]=407f, c0000210, 2ea23980, 2d0f0030, fff, 0, 0
AK: TP=3, VD=1, CC=3, OT=2, EP=0, EB=0
ZQ: Clock: ODT/OCD=60/48, zq_zctrl_prog=0x c08033e, zq_zctrl_status=0x28a154
ZQ: Address: ODT/OCD=60/80, zq_zctrl_prog=0x1c080332, zq_zctrl_status=0x28a111
ZQ: DQ: ODT/OCD=60/60, zq_zctrl_prog=0x2c080338, zq_zctrl_status=0x28a132
ZQ: DQS: ODT/OCD=60/60, zq_zctrl_prog=0x3c080338, zq_zctrl_status=0x28a132
ZQ: INTERAL DDR3, ZQCL done, ZQCS Enable
AK: MRS: mr[0]=0x101a50, mr[1]=0x110004, mr[2]=0x120010, mr[3]=0x130000
AK: Start DDR_Calibration
AK: Bit/max_r_s/max_r_l/max_w_s/max_w_l Bit/max_r_s/max_r_l/max_w_s/max_w_l
[ 0] 0 1f 0 1f [16] 0 1f 0 1f
[ 1] 0 1f 0 1f [17] 0 1f 0 1f
[ 2] 0 1f 0 1f [18] 0 1f 0 1f
[ 3] 0 1f 0 1f [19] 0 1f 0 1f
[ 4] 0 1f 0 1f [20] 0 1f 0 1f
[ 5] 0 1f 0 1f [21] 0 1f 0 1f
[ 6] 0 1f 0 1f [22] 0 1f 0 1f
[ 7] 0 1f 0 1f [23] 0 1f 0 1f
[ 8] 0 1f 0 1f [24] 0 1f 0 1f
[ 9] 0 1f 0 1f [25] 0 1f 0 1f
[10] 0 1f 0 1f [26] 0 1f 0 1f
[11] 0 1f 0 1f [27] 0 1f 0 1f
[12] 0 1f 0 1f [28] 0 1f 0 1f
[13] 0 1f 0 1f [29] 0 1f 0 1f
[14] 0 1f 0 1f [30] 0 1f 0 1f
[15] 0 1f 0 1f [31] 0 1f 0 1f
AK: Finish DDR_Calibration
AK: DRAM size=0x10000000, tRFC[2]=0x165(nS), tREF=1920(nS)
AK: DCR=0x21321003, DTR[0:2]=0x99644828, 0x808051f, 0x6516000
II: Change Stack from 0x9f002edc to 0x806fffe0
II: U-boot Magic Number is 0x27051956
II: Inflating U-Boot (0x80700040 -> 0x83c00000)... OK
II: Starting U-boot...
U-Boot 2020.01-svn25833 (Mar 13 2024 - 15:43:16 -0400)
Board: RTL9607C, MIPS interAptiv:900MHz RLX5281:500MHz LX:200MHz DDR3:600MHz SCLK:100MHz
ICACHE: 64KB (32-byte/4-way/512-set)
DCACHE: 32KB (32-byte/4-way/256-set)
DRAM: Physical 256 MiB, uboot useable size 256 MiB
NAND:
SPI NAND: 0xEFAA21, Mode(111/111)
Create bbt:
NAND: 128 MiB
Loading Environment from NAND... OK
In: serial
Out: serial
Err: serial
II: Init Software Patch!
II: sw_test
II: Configurate otto_flash_layout
Saving Environment to NAND... Erasing redundant NAND...
Erasing at 0xe0000 -- 100% complete.
Writing to redundant NAND... OK
OK
NAND read: device 0 offset 0x0, size 0xc0000
786432 bytes read: OK
CRC32 for 81c80000 ... 81d3ffff ==> a03ba268
Net: LUNA GMAC
Warning: eth device name has a space!
Hit ctrl + b to stop autoboot: 1 0
swcore_init
multicast_start Using LUNA GMAC device
mcast upgrade timeout.
ubi0: attaching mtd5
ubi0: scanning is finished
ubi0: attached mtd5 (name "ubi_device", size 124 MiB)
ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
ubi0: good PEBs: 995, bad PEBs: 0, corrupted PEBs: 0
ubi0: user volume: 5, internal volumes: 1, max. volumes count: 128
ubi0: max/mean erase counter: 23/11, WL threshold: 4096, image sequence number: 1263745346
ubi0: available PEBs: 488, total reserved PEBs: 507, PEBs reserved for bad PEB handling: 20
No size specified -> Using max size (5332992)
Read 5332992 bytes from volume ubi_k0 to 83000000
## Booting kernel from Legacy Image at 83000000 ...
Image Name: Linux-4.4.140
Image Type: MIPS Linux Kernel Image (lzma compressed)
Data Size: 4103265 Bytes = 3.9 MiB
Load Address: 80010000
Entry Point: 80936a40
Verifying Checksum ... OK
Uncompressing Kernel Image
DEBUG_MEM_AUTO: mem_size=0x10000000, bankcnt=0x00000008, banksize=0x02000000 (dcr=0x21321003)
DEBUG_MEM_AUTO: BSP_DSP_MEM_BASE=0xf900000, SIZE=0x700000
DEBUG_MEM_AUTO: BSP_IPC_MEM_BASE=0xf800000, SIZE=0x100000
DEBUG_MEM_AUTO: LUNA_PBO_UL_DRAM_OFFSET = 0x0f700000, SIZE_BARRIER = 0x00100000
DEBUG_MEM_AUTO: LUNA_PBO_DL_DRAM_OFFSET = 0x0dc00000, SIZE_BARRIER = 0x00400000
DEBUG_MEM_AUTO: PAGE_SIZE = 0x00001000
DEBUG_MEM_AUTO: [bsp_prom_memmap]add_memory_region(0, 230686720, BOOT_MEM_RAM)
DEBUG_MEM_AUTO: [bsp_prom_memmap]add_memory_region(0x00000000, 0x0dc00000, BOOT_MEM_RAM)
DEBUG_MEM_AUTO: [bsp_prom_memmap]add_memory_region(234881024, 24117248, BOOT_MEM_RAM)
DEBUG_MEM_AUTO: [bsp_prom_memmap]add_memory_region(0x0e000000, 0x01700000, BOOT_MEM_RAM)
[ 0.000000] Initializing cgroup subsys cpuset
[ 0.000000] Initializing cgroup subsys cpu
[ 0.000000] Initializing cgroup subsys cpuacct
[ 0.000000] Linux version 4.4.140 (root@ubuntu) (gcc version 4.8.5 20150209 (prerelease) (Realtek MSDK-4.8.5p1 Build 3068) ) #13 SMP Mon Oct 30 14:05:55 EDT 2023
[ 0.000000] chip Id 0x00009607, 0x96071800
[ 0.000000] MIPS: machine is Realtek Semiconductor RTL8198D
[ 0.000000] [L2_DEBUG:(bsp_scache_config,54)] - L2_Bypass: Disable
[ 0.000000] [L2_DEBUG:(bsp_setup_scache,82)]SCache LineSize= 32 (B)
[ 0.000000] Disable SRAM PLL...done
[ 0.000000] bootconsole [early0] enabled
[ 0.000000] CPU0 revision is: 0001a120 (MIPS interAptiv (multi))
[ 0.000000] MIPS: machine is rtk,9607c
[ 0.000000] Determined physical RAM map:
[ 0.000000] memory: 0dc00000 @ 00000000 (usable)
[ 0.000000] memory: 01700000 @ 0e000000 (usable)
[ 0.000000] Zone ranges:
[ 0.000000] Normal [mem 0x0000000000000000-0x000000000f6fffff]
[ 0.000000] HighMem empty
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000000000000-0x000000000dbfffff]
[ 0.000000] node 0: [mem 0x000000000e000000-0x000000000f6fffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x000000000f6fffff]
[ 0.000000] VPE topology {2,2} total 4
[ 0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.000000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
[ 0.000000] PERCPU: Embedded 11 pages/cpu @85821000 s12352 r8192 d24512 u45056
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 61652
[ 0.000000] Kernel command line: console=ttyS0,115200 ubi.mtd=4 root=31:7 rootfs=squashfs mtdparts=spinand:768K(boot),128K(env),128K(env2),128K(static_conf),127360K(ubi_device)
[ 0.000000] PID hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes)
[ 0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes)
[ 0.000000] Writing ErrCtl register=00000000
[ 0.000000] Readback ErrCtl register=00000000
[ 0.000000] Memory: 158196K/248832K available (9401K kernel code, 6059K rwdata, 2776K rodata, 236K init, 69144K bss, 90636K reserved, 0K cma-reserved, 0K highmem)
[ 0.000000] Hierarchical RCU implementation.
[ 0.000000] Build-time adjustment of leaf fanout to 32.
[ 0.000000] NR_IRQS:256
[ 0.000000] CPU clock is 900
[ 0.000000] [apro_clocks_init]clk_data.clk_num=2, ocp=900000000, lx=200000000
[ 0.000000] clocksource: GIC: mask: 0xffffffffffffffff max_cycles: 0xcf914c9718, max_idle_ns: 440795231327 ns
[ 0.000000] sched_clock: 32 bits at 100 Hz, resolution 10000000ns, wraps every 21474836475000000ns
[ 0.010000] Console: colour dummy device 80x25
[ 0.010000] Calibrating delay loop... 597.60 BogoMIPS (lpj=2988032)
[ 0.070000] pid_max: default: 32768 minimum: 301
[ 0.070000] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.080000] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.080000] Initializing cgroup subsys io
[ 0.090000] Initializing cgroup subsys memory
[ 0.090000] Initializing cgroup subsys devices
[ 0.090000] Initializing cgroup subsys freezer
[ 0.100000] Initializing cgroup subsys debug
[ 0.100000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.100000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.100000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
[ 0.100000] CPU1 revision is: 0001a120 (MIPS interAptiv (multi))
[ 0.180000] Synchronize counters for CPU 1: done.
[ 0.180000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.180000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.180000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
[ 0.180000] CPU2 revision is: 0001a120 (MIPS interAptiv (multi))
[ 0.260000] Synchronize counters for CPU 2: done.
[ 0.260000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.260000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.260000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
[ 0.260000] CPU3 revision is: 0001a120 (MIPS interAptiv (multi))
[ 0.340000] Synchronize counters for CPU 3: done.
[ 0.340000] Brought up 4 CPUs
[ 0.340000] devtmpfs: initialized
[ 0.350000] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.360000] futex hash table entries: 1024 (order: 3, 32768 bytes)
[ 0.360000] NET: Registered protocol family 16
[ 0.390000] pm-cps: CPC does not support clock gating
[ 0.400000] SCSI subsystem initialized
[ 0.400000] usbcore: registered new interface driver usbfs
[ 0.410000] usbcore: registered new interface driver hub
[ 0.410000] usbcore: registered new device driver usb
[ 0.420000] clocksource: Switched to clocksource GIC
[ 0.430000] NET: Registered protocol family 2
[ 0.440000] TCP established hash table entries: 2048 (order: 1, 8192 bytes)
[ 0.440000] TCP bind hash table entries: 2048 (order: 2, 16384 bytes)
[ 0.450000] TCP: Hash tables configured (established 2048 bind 2048)
[ 0.460000] UDP hash table entries: 256 (order: 1, 8192 bytes)
[ 0.460000] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes)
[ 0.470000] NET: Registered protocol family 1
[ 0.480000] register USB PHY: ehci-phy, RTK USB PHY version: v1.1 (2021.03.10)
[ 0.710000] EHCI2 initialization2
[ 0.720000] register USB PHY: ehci2-phy, RTK USB PHY version: v1.1 (2021.03.10)
[ 0.960000] [Kthread : luan_watchdog ] init complete!
[ 0.960000] ************ Watchdog Setting ****************
[ 0.970000] WDT_E=0, (1-enable, 0-disable)
[ 0.970000] WDT_CLK_SC=3
[ 0.980000] PH1_TO=31
[ 0.980000] PH2_TO=0
[ 0.980000] WDT_RESET_MODE=0
[ 0.980000] **********************************************
[ 0.990000] ==== Luna Watchdog Regs =====
[ 1.000000] BSP_WDTCNTRR(0xb8003260): 0x00000000
[ 1.000000] BSP_WDTINTRR(0xb8003264): 0x00000000
[ 1.010000] BSP_WDTCTRLR(0xb8003268): 0xe7c00000
[ 1.010000] =================================
[ 1.020000] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 1.020000] ntfs: driver 2.1.32 [Flags: R/W].
[ 1.030000] fuse init (API version 7.23)
[ 1.040000] io scheduler noop registered
[ 1.040000] io scheduler deadline registered
[ 1.050000] io scheduler cfq registered (default)
[ 1.050000] rtk-mips-ia-gpio 1b000038.gpio-controller: resource - [mem 0x1b000038-0x1b000043 flags 0x200] mapped at 0xbb000038
[ 1.060000] rtk-mips-ia-gpio 1b000038.gpio-controller: resource - [mem 0x18003308-0x1800335b flags 0x200] mapped at 0xb8003308
[ 1.080000] rtk-mips-ia-gpio 1b000038.gpio-controller: Setting up IRQs for GPIO bank 0
[ 1.090000] rtk-mips-ia-gpio 1b000038.gpio-controller: Setting up IRQs for GPIO bank 1
[ 1.100000] rtk-mips-ia-gpio 1b000038.gpio-controller: Setting up IRQs for GPIO bank 2
[ 1.100000] Realtek GPIO Driver for Flash Reload Default
[ 1.110000] rtk_prco_led_init
[ 1.110000] rtk_led_probe
[ 1.120000] rtk_led_pin(306):-2,0
[ 1.120000] rtk_led_probe : btn_wps -2
[ 1.180000] Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled
[ 1.190000] console [ttyS0] disabled
[ 1.190000] 18002000.serial: ttyS0 at MMIO 0x18002000 (irq = 46, base_baud = 12327200) is a 16550A
[ 1.200000] console [ttyS0] enabled
[ 1.200000] console [ttyS0] enabled
[ 1.210000] bootconsole [early0] disabled
[ 1.210000] bootconsole [early0] disabled
[ 1.220000] aipcBoardChipId=0x96070001 aipcBoardChipRev=0x00000002 aipcBoardChipSubType=0x00000018
[ 1.230000] RTL9607C_CHIP_ID 0x96070001
[ 1.230000] CHIP_REV_ID_B 0x00000002
[ 1.340000] aipc: register chrdev(254,0)
[ 1.340000] aipc: create device successed
[ 1.350000] aipc: start aipc irq init
[ 1.350000] aipc: Request IRQ for IPC OK
[ 1.350000] aipc: create dsp console device successed
[ 1.360000] aipc: init done
[ 1.360000] Realtek Luna SPI NAND Flash Driver Rev:00:00:00 (ChaoYuan_Yang)
[ 1.370000] [SPINAND] Blocks number under 6 are protected
[ 1.380000] [SPINAND] Allow max 4 bits flip in blank page!
[ 1.380000] Use RTK bb func
[ 1.390000] Use RTK bb scan
[ 1.390000] nand: device found, Manufacturer ID: 0xef, Chip ID: 0xaa
[ 1.400000] nand: Unknown
[ 1.400000] nand: 128 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64
[ 1.470000] good block number 1024
[ 1.470000] 5 cmdlinepart partitions found on MTD device spinand
[ 1.480000] RTK: using dynamic nand partition
[ 1.480000] Creating 5 MTD partitions on "spinand":
[ 1.490000] 0x000000000000-0x0000000c0000 : "boot"
[ 1.490000] 0x0000000c0000-0x0000000e0000 : "env"
[ 1.500000] 0x0000000e0000-0x000000100000 : "env2"
[ 1.500000] 0x000000100000-0x000000120000 : "static_conf"
[ 1.510000] 0x000000120000-0x000007d80000 : "ubi_device"
[ 1.520000] Size of the first partition is 6 blocks.
[ 1.520000] Realtek SPINAND Flash Driver is successfully installing.
[ 1.530000] Init RTK Driver Module....rtk_switch_irq_init 364 irq=38 name=apl_sw
[ 1.600000] OK
[ 1.610000] Init RTK Core Dev Module....OK
[ 1.610000]
[ 1.610000] rtdrv_init !!!! for netfilter
[ 1.620000] [rtdrv_init]: rtdrv_ext_igmpHook_sockopts init.
[ 1.620000] [rtdrv_init]: rtdrv_ext_igmpHook_sockopts success.
[ 1.630000] pkt_redirect_init complete
[ 1.630000] interrupt broadcaster init ok!
[ 1.640000] drivers/net/ethernet/realtek/rtl86900/sdk/src/module/dspbo_queue/dspbo_queue_main.c:284 pDsPboQueueTask complete!
[ 1.650000] re8670_set_features 1056: enter
[ 1.660000] re8670_set_features 1056: enter
[ 1.660000] re8670_set_features 1056: enter
[ 1.670000] re8670_set_features 1056: enter
[ 1.670000] re8670_set_features 1056: enter
[ 1.680000] re8670_set_features 1056: enter
[ 1.680000] re8670_set_features 1056: enter
[ 1.690000] re8670_set_features 1056: enter
[ 1.690000] re8670_set_features 1056: enter
[ 1.700000] re8670_set_features 1056: enter
[ 1.700000] >>>> Set nas0 carrier off !!!
[ 1.750000] Disable gmac[0] padding
[ 1.750000]
[ 1.750000] rtk_gmac_netdev_init 11165: netdev name=eth0 exist
[ 1.770000] Disable gmac[1] padding
[ 1.780000]
[ 1.780000] rtk_gmac_netdev_init 11165: netdev name=eth0 exist
[ 1.800000] Disable gmac[2] padding
[ 1.800000] first entry: 0, portmask 2047, rx: 8093f008
[ 1.810000] [FCEXT] rtk_fc_extmodule_init
[ 1.830000] [FCMGR] module init @rtk_fc_mgr_init(647)
[ 1.840000] fc_db.controlFuc.mem_leak_debug = 0
[ 1.840000] fc_db.controlFuc.special_fast_forward_mode = 0
[ 1.850000] fc_db.controlFuc.hwnat_customize = 0
[ 1.850000] fc_db.controlFuc.hwnat_customize_nptv6_sram_acc_v2 = 0
[ 2.690000] RTK FleetConntrack Driver - core module init
[ 2.700000] - version: usdk_v2.2.0.0.189 (e7f11e6e) 05/10/22-22:23:09
[ 2.700000] - mem usage 6737 KB (malloc:2102904 fc_db:4796040 pro_db:532)
[ 2.710000] priority: 0, portmask 2047, rx: 8093f008
[ 2.720000] insert here, priority: 1, portmask 2047, rx: 80943b10
[ 2.720000] priority: 1, portmask 2047, rx: 80943b10
[ 2.730000] insert here, priority: 10, portmask 2047, rx: 809439b4
[ 2.730000] RTK FleetConntrack Driver - manager module init
[ 2.740000] - mem usage 87 KB (db:21976 nicrx_ipi:68096)
[ 2.750000] rtk_common_utility_init 355 common utility init!
[ 2.750000] PPP generic driver version 2.4.2
[ 2.760000] NET: Registered protocol family 24
[ 2.760000] PPTP driver version 0.8.5
[ 2.770000] MPPE/MPPC encryption/compression module registered
[ 2.770000] __rtl8192cd_init(18747): SIZE=2 b8b30000/ba000000/72
[ 2.780000] __rtl8192cd_init(18759): SIZE=2 b8b30000/ba000000/72
[ 2.790000] Realtek WLAN driver - version 4.0.8.3(2022-03-01)(SVN:25062)
[ 2.790000] DFS function - version 2.0.14
[ 2.800000] Adaptivity function - version 9.7.08
[ 2.830000] CFG0
[ 2.830000] PCIE0 reset pin is set to GPIO 40
[ 2.840000] ===> PCIE reset try 0
[ 3.050000] 9607c pcie port 0
[ 3.050000] IC-B v1.3 (2021.06.09)
[ 3.230000] Port0 Link@2.5GHz
[ 3.230000] rtl8192cd_init_one(15738): vendor_deivce_id(f81210ec) sub(f81210ec)
[ 3.240000]
[ 3.240000] found 8812F !!!
[ 3.260000] IS_RTL8812F_SERIES value8 = 14
[ 3.260000] Hardware type = RTL8812FE
[ 3.270000] MACHAL_version_init
[ 3.270000] 55772M
[ 3.270000] HALMAC_MAJOR_VER = 1
[ 3.270000] HALMAC_PROTOTYPE_VER = 6
[ 3.270000] HALMAC_MINOR_VER = 6
[ 3.270000] HALMAC_PATCH_VER = 23
[ 3.290000] [TRACE]halmac_init_adapter <===
[ 3.290000] halmac_init_adapter Succss
[ 3.300000] [MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 3.300000] [rtl8192cd_init_one][17034] init sae_peer_table
#######################################################
[ 3.480000] SKB_BUF_SIZE=9232 MAX_SKB_NUM=4096
[ 3.480000] #######################################################
[ 3.480000]
[ 3.500000] [wlan0] init sae_peer_table
[wlan0] init sae_peer_table
[wlan0] init sae_blacklist_table
[MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 3.520000] [MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 3.530000] [MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 3.540000] [MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 3.550000] [MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 3.580000] CFG1
[ 3.590000] PCIE1 reset pin is set to GPIO 39
[ 3.590000] ===> PCIE reset try 0
[ 3.800000] 9607c pcie port 1
[ 3.810000] IC-B v1.3 (2021.06.09)
[ 3.960000] Port1 Link@2.5GHz
[ 3.960000] rtl8192cd_init_one(15738): vendor_deivce_id(818c10ec) sub(818c10ec)
[ 3.980000] IS_RTL8192F_SERIES value8 = d
[ 3.990000] MACHAL_version_init
[ 3.990000] [MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 4.000000] [rtl8192cd_init_one][17034] init sae_peer_table
#######################################################
[ 4.050000] SKB_BUF_SIZE=4832 MAX_SKB_NUM=2048
[ 4.060000] #######################################################
[ 4.060000]
[ 4.080000] [wlan1] init sae_peer_table
[wlan1] init sae_peer_table
[wlan1] init sae_blacklist_table
[MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 4.100000] [MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 4.110000] [MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 4.120000] [MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 4.120000] [MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 4.130000] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 4.140000] ehci-platform: EHCI generic platform driver
[ 4.150000] ehci-platform ehci-platform.0: EHCI Host Controller
[ 4.150000] ehci-platform ehci-platform.0: new USB bus registered, assigned bus number 1
[ 4.160000] ehci-platform ehci-platform.0: irq 74, io mem 0x18021000
[ 4.190000] ehci-platform ehci-platform.0: USB 2.0 started, EHCI 1.00
[ 4.190000] hub 1-0:1.0: USB hub found
[ 4.200000] hub 1-0:1.0: 1 port detected
[ 4.200000] ehci-platform ehci-platform.1: EHCI Host Controller
[ 4.210000] ehci-platform ehci-platform.1: new USB bus registered, assigned bus number 2
[ 4.220000] ehci-platform ehci-platform.1: irq 40, io mem 0x18021200
[ 4.240000] ehci-platform ehci-platform.1: USB 2.0 started, EHCI 1.00
[ 4.240000] hub 2-0:1.0: USB hub found
[ 4.250000] hub 2-0:1.0: 1 port detected
[ 4.250000] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[ 4.260000] ohci-platform: OHCI generic platform driver
[ 4.260000] ohci-platform ohci-platform.0: Generic Platform OHCI controller
[ 4.270000] ohci-platform ohci-platform.0: new USB bus registered, assigned bus number 3
[ 4.280000] ohci-platform ohci-platform.0: irq 74, io mem 0x18020000
[ 4.350000] hub 3-0:1.0: USB hub found
[ 4.350000] hub 3-0:1.0: 1 port detected
[ 4.360000] ohci-platform ohci-platform.1: Generic Platform OHCI controller
[ 4.370000] ohci-platform ohci-platform.1: new USB bus registered, assigned bus number 4
[ 4.380000] ohci-platform ohci-platform.1: irq 40, io mem 0x18020200
[ 4.440000] hub 4-0:1.0: USB hub found
[ 4.440000] hub 4-0:1.0: 1 port detected
[ 4.450000] usbcore: registered new interface driver cdc_acm
[ 4.450000] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[ 4.460000] usbcore: registered new interface driver usblp
[ 4.470000] usbcore: registered new interface driver uas
[ 4.480000] usbcore: registered new interface driver usb-storage
[ 4.480000] usbcore: registered new interface driver usbserial
[ 4.490000] usbcore: registered new interface driver usbserial_generic
[ 4.500000] usbserial: USB Serial support registered for generic
[ 4.500000] usbcore: registered new interface driver ftdi_sio
[ 4.510000] usbserial: USB Serial support registered for FTDI USB Serial Device
[ 4.520000] usbcore: registered new interface driver option
[ 4.520000] usbserial: USB Serial support registered for GSM modem (1-port)
[ 4.530000] usbcore: registered new interface driver pl2303
[ 4.540000] usbserial: USB Serial support registered for pl2303
[ 4.540000] hidraw: raw HID events driver (C) Jiri Kosina
[ 4.550000] usbcore: registered new interface driver usbhid
[ 4.560000] usbhid: USB HID core driver
[ 4.560000] /proc/slicReadID created
[ 4.570000] u32 classifier
[ 4.570000] Netfilter messages via NETLINK v0.30.
[ 4.570000] nf_conntrack version 0.5.0 (2471 buckets, 9884 max)
[ 4.580000] ip_set: protocol 6
[ 4.580000] gre: GRE over IPv4 demultiplexor driver
[ 4.590000] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 4.600000] NET: Registered protocol family 10
[ 4.600000] ip6_tables: (C) 2000-2006 Netfilter Core Team
[ 4.610000] sit: IPv6 over IPv4 tunneling driver
[ 4.620000] NET: Registered protocol family 17
[ 4.620000] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this.
[ 4.640000] Bridge firewalling registered
[ 4.640000] Ebtables v2.0 registered
[ 4.650000] l2tp_core: L2TP core driver, V2.0
[ 4.650000] l2tp_ppp: PPPoL2TP kernel driver, V2.0
[ 4.660000] 8021q: 802.1Q VLAN Support v1.8
[ 4.660000] Register system dying gasp...Done
[ 4.670000] ubi0: attaching mtd4
[ 5.240000] ubi0: scanning is finished
[ 5.260000] ubi0: attached mtd4 (name "ubi_device", size 124 MiB)
[ 5.260000] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[ 5.270000] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[ 5.280000] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[ 5.280000] ubi0: good PEBs: 995, bad PEBs: 0, corrupted PEBs: 0
[ 5.290000] ubi0: user volume: 5, internal volumes: 1, max. volumes count: 128
[ 5.300000] ubi0: max/mean erase counter: 23/11, WL threshold: 4096, image sequence number: 1263745346
[ 5.310000] ubi0: available PEBs: 488, total reserved PEBs: 507, PEBs reserved for bad PEB handling: 20
[ 5.320000] ubi0: background thread "ubi_bgt0d" started, PID 75
[ 5.330000] input: gpio-keys as /devices/platform/gpio-keys/input/input0
[ 5.340000] VoIP control bind 1 (1) instances successfully.
[ 5.350000] index dsp_cpuid dsp_cch host_cch
[ 5.350000] ----- --------- ------- --------
[ 5.360000] 0 0 0 0
[ 5.360000] voip spin lock init done
[ 5.360000] VoIP RX netfilter hook init done!
[ 5.370000] VoIP RX netfilter hook for IPv6 init done!
[ 5.370000] =============RTK VOIP SUITE=============
[ 5.380000] SDK VoIP Version: VoIP-1.6-DSP-R5523-Luna-R24-Integrate_RTL_CA
[ 5.390000] Board CFG Model :
[ 5.390000] INITIAL VOIP MANAGER PROGRAM
[ 5.400000] VFS: Mounted root (squashfs filesystem) readonly on device 31:7.
[ 5.410000] devtmpfs: mounted
[ 5.410000] Freeing unused kernel memory: 236K
[ 5.960000] tv_sec:5 tv_usec:960215
[ 5.960000] CPU0 kick watchdog!
Bad inittab entry at line 34
starting pid 83, tty '': '/etc/init.d/rcS'
=== Start to run rc0 / rc63 ===
----- do_rc [/etc/init.d/rc2] -----
[ 6.140000] smuxdev: loading out-of-tree module taints kernel.
[ 6.150000] smuxdev: loaded
WARN: conflicting configurations in /etc/fstab and /etc/default/rcS
regarding the writability of rootfs. Please fix one of them.
[ 6.670000] UBIFS (ubi0:0): background thread "ubifs_bgt0_0" started, PID 113
[ 6.710000] UBIFS (ubi0:0): recovery needed
[ 6.850000] UBIFS (ubi0:0): recovery completed
[ 6.860000] UBIFS (ubi0:0): UBIFS: mounted UBI device 0, volume 0, name "ubi_Config"
[ 6.870000] UBIFS (ubi0:0): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 6.880000] UBIFS (ubi0:0): FS size: 6856704 bytes (6 MiB, 54 LEBs), journal size 1396736 bytes (1 MiB, 11 LEBs)
[ 6.890000] UBIFS (ubi0:0): reserved for root: 0 bytes (0 KiB)
[ 6.890000] UBIFS (ubi0:0): media format: w4/r0 (latest is w4/r0), UUID EAAA5809-5FD4-4191-9EA4-E0C0ECFE1435, small LPT model
----- do_rc [/etc/init.d/rc3] -----
--,mib_init
set_msgqueue_max_size:417> set msgqidds.msg_qbytes=36000 OK
set_msgqueue_max_size:417> set msgqidds.msg_qbytes=[ 8.130000] sys_capability_single_write:0,2,0,0,1,1
[ 8.130000]
36000 OK
[ 8.360000] aipc: (0419)prepare_BIR
aipc: write image successful. size=2881648 rc=2881648 wc=2881648 da=0xb02c0400 r[ 8.790000] aipc: (0528)aipc_dev_ioctl boot dsp
emain=0
[ 8.800000] aipc: (0530)aipc_dev_ioctl boot dsp done
Wait DSP 0/1 booting ......
.[ 9.330000] aipc: (0599)aipc_dsp_disable_mem
Wait DSP ok. wait_cnt=1
DSP 0 Software Ready!
rtkbosa: Don’t care pon mode, use general file
cat: can't open '/var/config/rtkbosa_k_checksum': No such file or directory
rtkbosa: checksumold =
rtkbosa: Use general file [/var/config/rtkbosa_k.bin]
rtkbosa: Version 2.10 (Oct 30 2023 - 14:17:43)
rtkbosa: Detecting RTL8290B ...
rtkbosa: Error (0x10): The chip is not found
rtkbosa: Detecting UX3320_S ...
rtkbosa: Read 0x51.0xF5(0x55): 0x80
rtkbosa: Read 0x51.0xF6(0x58): 0xD5
rtkbosa: Read 0x51.0xF7(0x33): 0x80
rtkbosa: Read 0x51.0xF8(0x33): 0x00
rtkbosa: Read 0x51.0xF9(0x32): 0x00
rtkbosa: Read 0x51.0xFA(0x30): 0x00
rtkbosa: Read 0x51.0xFB(0x53): 0x00
rtkbosa: Detecting UX3360 ...
rtkbosa: Read 0x51.0x80(0x55): 0xFF
rtkbosa: Read 0x51.0x81(0x58): 0xFF
rtkbosa: Read 0x51.0x82(0x33): 0xFF
rtkbosa: Read 0x51.0x83(0x33): 0xFF
rtkbosa: Read 0x51.0x84(0x36): 0xFF
rtkbosa: Read 0x51.0x85(0x30): 0xFF
rtkbosa: Detecting UX3361 ...
rtkbosa: Read 0x51.0x80(0x55): 0xFF
rtkbosa: Read 0x51.0x81(0x58): 0xFF
rtkbosa: Read 0x51.0x82(0x33): 0xFF
rtkbosa: Read 0x51.0x83(0x33): 0xFF
rtkbosa: Read 0x51.0x84(0x36): 0xFF
rtkbosa: Read 0x51.0x85(0x33): 0xFF
rtkbosa: Read 0x51.0x86(0x31): 0xFF
rtkbosa: Detecting Semtech Series (GN2xL9x) ...
rtkbosa: Read 0x51.0x7B(0x00): 0x00
rtkbosa: Read 0x51.0x7C(0x00): 0x00
rtkbosa: Read 0x51.0x7D(0x00): 0x00
rtkbosa: Read 0x51.0x7E(0x00): 0x00
rtkbosa: Detecting Semtech Bosa ID ...
rtkbosa: A2 Table ff: 0x80 = 0xff ; 0x85 = 0xff ; 0x86 = 0xff
rtkbosa: A2 Table 2: 0xD1 = 0xa3
rtkbosa: SEMTECH GN25L95 is Found
rtkbosa: A2 Table 0x02.0xc0 = 0x02
rtkbosa: none EEPROM exists.
rtkbosa: Starting Init GN25L95 ...
rtkbosa: Open file [/var/config/rtkbosa_k.bin]
rtkbosa: (0) Dump A0 (Disabled)
rtkbosa: (1) Dump LUTs4 Data
rtkbosa: (2) Dump LUTs5 Data
rtkbosa: (3) Dump LUTs6 Data
rtkbosa: (4) Dump A2.table2
rtkbosa: (5) Dump all slope and offsets - A2_TABLE2
rtkbosa: (6) Dump all alarms and warnings levels A2-Lower
rtkbosa: (7) Set PON_CONTROL
rtkbosa: (8) Enable all alarms and warnings
rtkbosa: Read reg (A2T1.249): c0
rtkbosa: Write reg (A2T1.249): c0
rtkbosa: Read reg (A2T1.253): c0
rtkbosa: Write reg (A2T1.253): c0
rtkbosa: (9) Soft TX disable reset
rtkbosa: Read Soft TX reg (A2T1.110): 40
rtkbosa: Write Soft TX reg (A2T1.110): 40
rtkbosa: Write Soft TX reg (A2T1.110): 00
rtkbosa: (10) Set Safe Mode Start Up
rtkbosa: (11) Set up the password level
rtkbosa: 9603C/9607C(Get): A2/0xBB = 0x1d
rtkbosa: 9603C/9607C(Set): A2/0xBB = 0x1d
rtkbosa: A2.T2/0xB1 = 0x0c
rtkbosa: A2.T2/0xB7 = 0x41
rtkbosa: Init done ...
rtkbosa: Do NOT save A0 data for Semtech BOSA
rtkbosa: done
diable printk= 0 parameter is 1
/etc/init.d/rc3: line 7: /bin/checkomci: not found
grep: /config/default_scfg.txt: No such file or directory
RTL Chip............
Loading modules: ca-ne ca-plat-kernel ca-sdk-cb libscfg find: /lib/modules/users/: No such file or directory
[ 10.930000] re8670_open 5211
[ 10.930000] re8670_open 5226
[ 10.950000] re8670_open 5226
[ 10.960000] re8670_open 5226
[ 10.970000] tv_sec:10 tv_usec:978987
[ 10.980000] CPU0 kick watchdog!
[ 10.990000] IPv6: eth0: IPv6 duplicate address fe80::200:ff:fe01:2 detected!
Unix Socket Connect to server failed!!!: No such file or directory
Unable to open unix socket file /var/run/systemd.usock!!!
[ 11.370000] pf_rt_fc: unknown parameter 'pon_speed' ignored
[ 11.400000] register_gpon_evt_state: register gpon event state Successfully !
[ 11.400000] omci platform db suc!
[ 11.410000] ponPort:5 cpuPort:9 rgmiiPort:8 uniPortMask:0x20f etherPortMask:0xf
[ 11.420000] omci platform attached!
Loading TR-142 Module...
[ 11.460000] Realtek TR-142 Module initialized.
[ 11.560000] [rtk_tr142_nl_recv_msg] rtk_tr142_nl_pid = 321
[ 11.570000] Set mapping_outermost_vlan_by_mac_from_lut to 0 OK.
TR142_FEATURE_API_INIT_LIB ret = 0
[rtk_tr142_debug_log_set] log_enable = 0
tr142_app app_log_enable = 0
[ 11.950000] random: nonblocking pool is initialized
running GPON mode ...
insmod: can't insert '/lib/modules/rldp_drv.ko': No such file or directory
Loading Realtek IGMP/ MLD Snooping Module...
[ 12.140000] multicast_moudle_init
----- do_rc [/etc/init.d/rc6] -----
pon auto detect: pon_detect_flash_var_get ret: [0]
pon auto detect: PON_MODE_AUTO_CHECK_ENABLE: [1]
----- do_rc [/etc/init.d/rc10] -----
----- do_rc [/etc/init.d/rc14] -----
----- do_rc [/etc/init.d/rc18] -----
----- do_rc [/etc/init.d/rc20] -----
----- do_rc [/etc/init.d/rc32] -----
Start rtk_ramonitor daemon!
----- do_rc [/etc/init.d/rc34] -----
write watchdog_flag to 0x00000001
REG32(BSP_WDTCTRLR) = 0xe7c00000
----- do_rc [/etc/init.d/rc35] -----
[setup_usock_thread:6341] Create new theread for usock
[setup_pushbtn_thread:5636] Create new theread for pushbtn
Input driver version is 1.0.1
Input device ID: bus 0x19 vendor 0x1 product 0x1 version 0x100
Input device name: "gpio-keys"
Supported events:
Event type 0 (Sync)
Event type 1 (Key)
Event code 238
Event code 408
Event code 529
Event type 20 (Repeat)
Grab succeeded, ungrabbing.
run rcm voip script...
Reset value to -1
Turn on phy power...
Reset value to -1
Reset value to -1
ponmode PON_MODE=1
Reset value to -1
Testing ... (intReset value to -1
errupt to exit)
Reset value to -1
Inactive PIN_CS:
<<<<<<<<<<< Si3219x Driver Version 9.1.0 >>>>>>>>>>
------------------------------
SLIC 32192 HW intf 0 CS=0
Reset value to -1
aipc: (0296)aipc_module_voip_set_pcm_fs IO_MODE_EN=0x0000a050
Pull low GPIO 28
diable printk= 0 parameter is 0
Reset value to -1
Reset value to -1
Reset value to -1
>> Disable NIC SRAM accerlate - DRAM mode <<
/bin/sh: can't create /proc/rtl8686gmac/dynamic_sram_desc: nonexistent directory
re8670_reset 11419 enter
re8670_reset 11459 gmac=0
re8670_reset 11464 Enable LX bus 0 timeout monitor
re8670_hardware_reset 11357 enter
Disable gmac[0] padding
re8670_hardware_reset 11400 exit
4 cpu
Pull high GPIO 28
Start SLIC init....
starting pid 547, tty '/dev/ttyS0': '/bin/login -p'
starting pid 552, tty '': '/bin/inetd'
cs0
MSIF_LOCK 0x1, cs 0x0
Start SLIC init....
/var/config/omci_ignore_mib_tbl.conf meClassId:255
/var/config/omci_ignore_mib_tbl.conf subType:0
/var/config/omci_ignore_mib_tbl.conf meClassId:247
/var/config/omci_ignore_mib_tbl.conf subType:0
/var/config/omci_ignore_mib_tbl.conf meClassId:65305
/var/config/omci_ignore_mib_tbl.conf subType:0
<fMgmtInit:601> is the so is not a regular file.
<fMgmtInit:601> is the so is not a regular file.
<fMgmtInit:601> is the so is not a regular file.
Module libigmpipc.so is loaded and inited
Module libomcivoip.so is loaded and inited
[libtr142][OMCI] == rtk_tr142.so is loaded ==
[rtk_tr142_debug_log_set] log_enable = 0
Module libtr142.so is loaded and inited
login: service /bin/ftpd port 21 tcp enabled
service /bin/telnetd port 23 tcp enabled
service /bin/tftpd port 69 udp enabled
re8670_reset 11529 Disable LX bus 0 timeout monitor
re8670_reset 11459 gmac=1
re8670_reset 11474 Enable LX bus 1 timeout monitor
re8670_hardware_reset 11357 enter
Disable gmac[1] padding
re8670_hardware_reset 11400 exit
ubi0 error: ubi_open_volume: cannot open device 0, volume 0, error -16
SLIC0 ID: str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
regvalue = 0
Unknow SLIC Unknown Version Si3219x_Init_with_Options(605) size = 1 init_opt = 0
Si3219x: register 0 read = 0x00
Si3219x: : failed to detect any ProSLICs
ERROR: proslic SLIC Initialization failed
Init error!
re8670_reset 11537 Disable LX bus 1 timeout monitor
re8670_reset 11459 gmac=2
re8670_reset 11464 Enable LX bus 0 timeout monitor
re8670_hardware_reset 11357 enter
Disable gmac[2] padding
re8670_hardware_reset 11400 exit
re8670_reset 11529 Disable LX bus 0 timeout monitor
re8670_reset 11570 exit
0
meter set pon-tick-token tick-period 73 token 97
RTK.0> command:[rtk_qos_tick_tocken_init:222] Enable 9607C 8000Kbps base !!
meter set tick-token tick-period 71 token 151
RTK.0> command:register set 0x801030 0x80004797
RTK.0> command:Error: cannot open /sys/class/net/eth0.2.0/ifindex
Error: cannot open /sys/class/net/eth0.3.0/ifindex
Error: cannot open /sys/class/net/eth0.4.0/ifindex
Error: cannot open /sys/class/net/eth0.5.0/ifindex
[rtk_tr142_veip_get_transparent_ifIndex] ifIndex = 0
CMD: /bin/sh -c /bin/echo 5 nas0 > /proc/eth_nic/dev_port_mapping
port 5 assign to nas0
CMD: /bin/sh -c echo 0x20 > /proc/fc/ctrl/wan_port_mask
CMD: /bin/smuxctl --if nas0 --set-if-rsmux --set-if-rx-policy DROP --set-if-tx-policy CONTINUE --set-if-rxmc-policy DROP --set-if-rx-multi 1
CMD: /bin/sh -c echo auto_reserve_vlan 1 > proc/rtk_smuxdev/cSet auto_reserve_vlan to 1 OK.
onfigure
MIB chain descriptors checking (total 63) ok !
CMD: /bin/mkdir -p /var/network
>>> Disable /dev/console XON XOFF !!!
CMD: /bin/touch /var/wan_sockmark_file
CMD: /bin/ifconfig eth0.2 hw ether *redacted*
CMD: /bin/ifconfig eth0.3 hw ether *redacted*
CMD: /bin/ifconfig eth0.4 hw ether *redacted*
CMD: /bin/ifconfig eth0.5 hw ether *redacted*
<utility.c 981 setup_mac_addr> macAddr[5]+1 = a0
CMD: /bin/ifconfig wlan0 hw ether 921a69dc31a0
CMD: /bin/ifconfig wlan0 mtu 1500
CMD: /bin/ifconfig wlan0-vap0 hw ether 921a69dc31a1
CMD: /bin/ifconfig wlan0-vap0 mtu 1500
CMD: /bin/ifconfig wlan0-vap1 hw ether 921a69dc31a2
CMD: /bin/ifconfig wlan0-vap1 mtu 1500
CMD: /bin/ifconfig wlan0-vap2 hw ether 921a69dc31a3
CMD: /bin/ifconfig wlan0-vap2 mtu 1500
CMD: /bin/ifconfig wlan0-vap3 hw ether 921a69dc31a4
CMD: /bin/ifconfig wlan0-vap3 mtu 1500
<utility.c 981 setup_mac_addr> macAddr[5]+1 = a1
CMD: /bin/ifconfig wlan1 hw ether 621a69dc31a1
CMD: /bin/ifconfig wlan1 mtu 1500
CMD: /bin/ifconfig wlan1-vap0 hw ether 621a69dc31a2
CMD: /bin/ifconfig wlan1-vap0 mtu 1500
CMD: /bin/ifconfig wlan1-vap1 hw ether 621a69dc31a3
CMD: /bin/ifconfig wlan1-vap1 mtu 1500
CMD: /bin/ifconfig wlan1-vap2 hw ether 621a69dc31a4
CMD: /bin/ifconfig wlan1-vap2 mtu 1500
CMD: /bin/ifconfig wlan1-vap3 hw ether 621a69dc31a5
CMD: /bin/ifconfig wlan1-vap3 mtu 1500
CMD: /bin/ifconfig eth0 up
CMD: /bin/ifconfig eth0 mtu 1500
CMD: /bin/sh -c /bin/echo 0 eth0.2 > /proc/eth_nic/dev_port_mapping
port 0 assign to eth0.2
CMD: /bin/ifconfig eth0.2 up
CMD: /bin/ifconfig eth0.2 mtu 1500
CMD: /bin/smuxctl --if-create-name eth0.2 eth0.2.0 --set-if-rsmux
CMD: /bin/smuxctl --if eth0.2 --rx --tags 0 --set-rxif eth0.2.0 --rule-alias eth0.2-rx-default --rule-append
CMD: /bin/sh -c /bin/echo 1 eth0.3 > /proc/eth_nic/dev_port_mapping
port 1 assign to eth0.3
CMD: /bin/ifconfig eth0.3 up
CMD: /bin/ifconfig eth0.3 mtu 1500
CMD: /bin/smuxctl --if-create-name eth0.3 eth0.3.0 --set-if-rsmux
CMD: /bin/smuxctl --if eth0.3 --rx --tags 0 --set-rxif eth0.3.0 --rule-alias eth0.3-rx-default --rule-append
CMD: /bin/sh -c /bin/echo 2 eth0.4 > /proc/eth_nic/dev_port_mapping
port 2 assign to eth0.4
CMD: /bin/ifconfig eth0.4 up
CMD: /bin/ifconfig eth0.4 mtu 1500
CMD: /bin/smuxctl --if-create-name eth0.4 eth0.4.0 --set-if-rsmux
CMD: /bin/smuxctl --if eth0.4 --rx --tags 0 --set-rxif eth0.4.0 --rule-alias eth0.4-rx-default --rule-append
CMD: /bin/sh -c /bin/echo 3 eth0.5 > /proc/eth_nic/dev_port_mapping
port 3 assign to eth0.5
CMD: /bin/ifconfig eth0.5 up
CMD: /bin/ifconfig eth0.5 mtu 1500
CMD: /bin/smuxctl --if-create-name eth0.5 eth0.5.0 --set-if-rsmux
CMD: /bin/smuxctl --if eth0.5 --rx --tags 0 --set-rxif eth0.5.0 --rule-alias eth0.5-rx-default --rule-append
CMD: /bin/brctl addbr br0
CMD: /bin/ifconfig br0 hw ether *redacted*
CMD: /bin/ifconfig br0 mtu 1500
CMD: /bin/ifconfig eth0 hw ether *redacted*
ifconfig: SIOCSIFHWADDR: Device or resource busy
CMD: /bin/sh -c echo 0 > /proc/sys/net/ipv4/conf/br0/rp_filter
[rtk_fc_stp_clean@3349]: ERROR! No such file or directory
[rtk_fc_stp_clean@3361]: ERROR! No such file or directory
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --rx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --tx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --rx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --tx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --rx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --tx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --rx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --tx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --rx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --tx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --rx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --tx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --rx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --tx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --rx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --tx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --rx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --tx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --rx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --tx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --rx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --tx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --rx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --tx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/brctl stp br0 off
CMD: /bin/brctl setfd br0 1
CMD: /bin/brctl setageing br0 7200
setupUniPortCapability:883 line is 2;2;2;2
setupUniPortCapability:887 pch is 2
setupUniPortCapability:968 pcdevice eth0.2.0 entered promiscuous mode
h is 2, port 0, UNI_PORT_GE
setupUniPortCapability:887 pch is 2
setupUniPortCapability:968 pch is 2, port 1, UNI_PORT_GE
setupUniPortCapability:887 pch is 2
setupUniPortCapability:968 pch is 2, port 2, UNI_PORT_GE
setupUniPortCapability:887 pch is 2
setupUniPortCapability:968 pch is 2
, port 3, UNI_PORT_GE
CMD: /bin/ifconfig eth0.2.0 mtu 1500
CMD: /bin/brctl addif br0 eth0.2.0
CMD: /bin/ifconfig eth0.2.0 down
CMD: /bin/ifconfig eth0.2 down
<<<<<<<<<<<<<<<<<<<<<<<<>>>>>>>>>>>>>>>>>>>>>>
CMD: /bin/ifconfig eth0.2.0 up
All DSP Software Ready. VoIP Defer Init done.
start watch dog
CMD: /bin/ifconfig eth0.2 up
[restart_ethernet@16749] eth0.2.0 is up
getUniPortCapability:1163 line is 2;2;2;2
getUniPortCapability:1170 pch is 2, port is 0
CMD: /bin/ifconfig eth0.3.0 mtu 1500
device eth0.3.0 entered promiscuous mode
CMD: /bin/brctl addif br0 eth0.3.0
stat failed: /lib/features/internal/bdp_00000002.so
CMD: /bin/ifconfig eth0.3.0 down
CMD: /bin/ifconfig eth0.3 down
CMD: /bin/ifconfig eth0.3.0 up
CMD: /bin/ifconfig eth0.3 up
[restart_ethernet@16749] eth0.3.0 is up
getUniPortCapability:1163 line is 2;2;2;2
getUniPortCapability:1170 pch is 2, port is 1
Module /lib/features/internal/bdp_00000200.so is inited
CMD: /bin/ifcodevice eth0.4.0 entered promiscuous mode
nfig eth0.4.0 mtu 1500
CMD: /bin/brctl addif br0 eth0.4.0
CMD: /bin/ifconfig eth0.4.0 down
CMD: /bin/ifconfig eth0.4 down
Module /lib/features/internal/me_00010000.so is inited
CMD: /bin/ifconfig eth0.4.0 up
CMD: /bin/ifconfig eth0.4 up
[restart_ethernet@16749] eth0.4.0 is up
getUniPortCapability:1163 line is 2;2;2;2
getUniPortCapability:1170 pch is 2, port is 2
CMD: /bin/ifconfig eth0.5.0 mtu 1500
load moduleOptInitFunc
Module /device eth0.5.0 entered promiscuous mode
lib/features/internal/me_00020000.so is inited
Module /lib/features/internal/me_00040000.so is inited
CMD: /bin/brctl addif br0 eth0.5.0
CMD: /bin/ifconfig eth0.5.0 down
CMD: /bin/ifconfig eth0.5 down
####################### voice_rtk_init_voip_cfg() #######################
voip omci line state share size = 1152
codec_suporrt_list 1279
### voice_rtk_init_voip_cfg()###, pFlash=0x76e01528, g_pLineState=0x77310000
CMD: /bin/ifconfig eth0.5.0 up
CMD: /bin/ifconfig eth0.5 up
[restart_ethernet@16749] eth0.5.0 is up
getUniPortCapability:1163 line is 2;2;2;2
getUniPortCapability:1170 pch is 2
, port is 3
CMD: /bin/sh -c echo 4 > /proc/sys/net/ipv6/conf/br0/dad_transmits
CMD: /bin/ifconfig br0 up
CMD: /bin/ifconfig br0 192.168.33.3 netmask 255.255.254.0 mtu 1500
Find ATM_VC_TBL interface br0 Fail!
<subr_net.c 12530 set_ipv4_lan_policy_route> Set IPv4 LAN route for ifname (br0), table(260)
omci_wrapper_getTransceiverStatus ioctl failed 4
omci_GetTransceiverInfo 8144 : get WAVE length fail
Auto Link-Local Address for br0
IPv6: ADDRCONF(NETDEV_UP): br0: link is not ready
CMD: /bin/sh -c echo 0 > /proc/sys/net/ipv6/rtk_ip6_logo_test
mode=0 , rtk_op_mode = 0
iptables: Bad rule (does a matching rule exist in that chain?).
CMD: /bin/spppd
do_restart_dnsrelay:4133 no delay dns
[update_monitor_list_file:23673] process_name = dnsmasq, action = 0
Open file /var/tmp/hosts failed !
!!!DNSMAQS :detect upd port at 33549
rm: can't remove '/var/localtime': No such file or directory
CMD: /bin/vsntp -s clock.fmt.he.net -s clock.nyc.he.net
==================allocate_sfd===============
intname = ,source_addr = 0.0.0.0,sin_port = 33549
=============================================
CMD: /bin/arp_monitor -F -d -t 3 -nf 3 -nt 7 -i br+
[update_monitor_list_file:23673] process_name = dnsmasq, action = 1
omci_wrapper_msgHandler: devMode 1,receiveState 1,usrLogLvl 1, drvLogLvl 1,sn YOTCi�1�
drivers/net/ethernet/realtek/rtl86900/sdk/src/rtk/pon_led.c:1501 led sw blink init complete!
rtk_pon_led_SpecType_set 0
CMD: /bin/sh -c /bin/ip rule add from all lookup 257 pref 27900
CMD: /bin/sh -c /bin/ip rule add from all lookup 260 pref 28000
CMD: /bin/sh -c /bin/ip -6 rule add from all lookup 257 pref 27900
CMD: /bin/sh -c /bin/ip -6 rule add from all lookup 260 pref 28000
CMD: /bin/sh -c /bin/ip -6 rule add from all lookup 259 pref 27950
CMD: /bin/sh -c /bin/ip -6 rule add from all lookup 258 pref 27945
[restart_ethernet@16749] eth0.2.0 is up
getUniPortCapability:1163 line is 2;2;2;2
getUniPortCapability:1170 pch is 2, port is 0
[restart_ethernet@16749] eth0.3.0 is up
getUniPortCapability:1163 line is 2;2;2;2
getUniPortCapability:1170 pch is 2, port is 1
[restart_ethernet@16749] eth0.4.0 is up
getUniPortCapability:1163 line is 2;2;2;2
getUniPortCapability:1170 pch is 2, port is 2
getaddrinfo: Temporary failure in name resolution
connect clock.fmt.he.net: No such file or directory
[restart_ethernet@16749] eth0.5.0 is up
getUniPortCapability:1163 line is 2;2;2;2
getUniPortCapability:1170 pch is 2
, port is 3
<subr_net.c 26370 startWan> startWan Start all WAN
CMD: /bin/ifconfig nas0 hw ether *redacted*
getaddrinfo: Temporary failure in name resolution
connect clock.nyc.he.net: No such file or directory
CMD: /bin/ifconfig nas0 up
CMD: /bin/ifconfig nas0 mtu 1500
CMD: /bin/ethtool -k nas0 gso on
Ignore classId:287
MIB_Table_Init Init mib table:mib_ExtendedOnuGZTE.so fail, error code is:1...
ethtool: bad command line argument(s)
For more information run ethtool -h
CMD: /bin/iptables -P INPUT DROP
CMD: /bin/iptables -P FORWARD ACCEPT
CMD: /bin/iptables -A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT
CMD: /bin/iptables -A FORWARD -p tcp -o ppp+ --tcp-flags SYN,RST SYN -j TCPMSS --clamp-mss-to-pmtu
CMD: /bin/iptables -A FORWARD -p tcp -i ppp+ --tcp-flags SYN,RST SYN -m tcpmss --mss 1452:65495 -j TCPMSS --set-mss 1452
CMD: /bin/ip6tables -A FORWARD -p tcp -o ppp+ --tcp-flags SYN,RST SYN -j TCPMSS --clamp-mss-to-pmtu
CMD: /bin/ip6tables -A FORWARD -p tcp -i ppp+ --tcp-flags SYN,RST SYN -m tcpmss --mss 1432:65475 -j TCPMSS --set-mss 1432
CMD: /bin/iptables -A INPUT -p udp --dport 520 -j ACCEPT
CMD: /bin/iptables -A INPUT ! -i br+ -d 239.255.255.250 -j DROP
CMD: /bin/iptables -A INPUT -d 224.0.0.0/4 -j ACCEPT
CMD: /bin/iptables -A INPUT -i lo -j ACCEPT
CMD: /bin/ip6tables -A INPUT -i lo -j ACCEPT
CMD: /bin/iptables -N aclblock
CMD: /bin/iptables -t nat -N aclblock
CMD: /bin/iptables -t mangle -N aclblock
CMD: /bin/iptables -F aclblock
CMD: /bin/iptables -t nat -F aclblock
Ignore classId:65305
MIB_Table_Init Init mib table:mib_Me65305.so fail, error code is:1...
CMD: /bin/iptables -t mangle -F aclblock
CMD: /bin/iptables -A aclblock -i lo -j RETURN
CMD: /bin/iptables -A aclblock ! -i br+ -m mark --mark 0x1000 -j ACCEPT
CMD: /bin/iptables -A aclblock -m state --state ESTABLISHED,RELATED -j ACCEPT
CMD: /bin/iptables -A aclblock ! -i br+ -j DROP
CMD: /bin/iptables -A INPUT -j aclblock
CMD: /bin/iptables -t nat -A PREROUTING -j aclblock
CMD: /bin/iptables -t mangle -A PREROUTING -j aclblock
CMD: /bin/ip6tables -N aclblock
CMD: /bin/ip6tables -F aclblock
CMD: /bin/ip6tables -P INPUT DROP
CMD: /bin/ip6tables -A INPUT -j aclblock
CMD: /bin/iptables -N cwmp_aclblock
CMD: /bin/iptables -t mangle -N cwmp_aclblock
CMD: /bin/iptables -F cwmp_aclblock
CMD: /bin/iptables -t mangle -F cwmp_aclblock
CMD: /bin/iptables -A INPUT -j cwmp_aclblock
CMD: /bin/iptables -t mangle -D PREROUTING -j cwmp_aclblock
CMD: /bin/iptables -t mangle -A PREROUTING -j cwmp_aclblock
CMD: /bin/ebtables -N br_lan_forward -P RETURN
CMD: /bin/ebtables -A FORWARD -j br_lan_forward
CMD: /bin/ebtables -D br_lan_forward -p IPv4 --ip-proto igmp -j BR_IGMP_MLD_DROP
Illegal target name 'BR_IGMP_MLD_DROP'.
CMD: /bin/ebtables -D br_lan_forward -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 143:143/0:255 -j BR_IGMP_MLD_DROP
Illegal target name 'BR_IGMP_MLD_DROP'.
CMD: /bin/ebtables -D br_lan_forward -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 130:132/0:255 -j BR_IGMP_MLD_DROP
Illegal target name 'BR_IGMP_MLD_DROP'.
CMD: /bin/ebtables -F BR_IGMP_MLD_DROP
Chain 'BR_IGMP_MLD_DROP' doesn't exist.
CMD: /bin/ebtables -X BR_IGMP_MLD_DROP
Chain 'BR_IGMP_MLD_DROP' doesn't exist.
CMD: /bin/ebtables -N BR_IGMP_MLD_DROP
Ignore classId:255 SubType:0
MIB_Table_Init Init mib table:mib_PrivateTellionOntStatistics.so fail, error code is:1...
CMD: /bin/ebtables -P BR_IGMP_MLD_DROP RETURN
CMD: /bin/ebtables -A BR_IGMP_MLD_DROP -i eth+ -o eth+ -j DROP
CMD: /bin/ebtables -A BR_IGMP_MLD_DROP -i eth+ -o wlan+ -j DROP
CMD: /bin/ebtables -A BR_IGMP_MLD_DROP -i wlan+ -o eth+ -j DROP
CMD: /bin/ebtables -A BR_IGMP_MLD_DROP -i wlan+ -o wlan+ -j DROP
CMD: /bin/ebtables -A br_lan_forward -p IPv4 --ip-proto igmp -j BR_IGMP_MLD_DROP
CMD: /bin/ebtables -A br_lan_forward -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 143:143/0:255 -j BR_IGMP_MLD_DROP
CMD: /bin/ebtables -A br_lan_forward -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 130:132/0:255 -j BR_IGMP_MLD_DROP
CMD: /bin/ebtables -N br_wan
CMD: /bin/ebtables -P br_wan RETURN
CMD: /bin/ebtables -N br_wan_out
CMD: /bin/ebtables -P br_wan_out RETURN
CMD: /bin/ebtables -N br_lan_out
CMD: /bin/ebtables -P br_lan_out RETURN
CMD: /bin/ebtables -A INPUT -j br_wan
CMD: /bin/ebtables -A OUTPUT -j br_wan_out
CMD: /bin/ebtables -A OUTPUT -j br_lan_out
<subr_net.c 12530 set_ipv4_lan_policy_route> Del IPv4 LAN route for ifname (br0), table(260)
CMD: /bin/ebtables -N br_wan_forward
CMD: /bin/ebtables -P br_wan_forward RETURN
Find ATM_VC_TBL interface br0 Fail!
<subr_net.c 12530 set_ipv4_lan_policy_route> Set IPv4 LAN route for ifname (br0), table(260)
CMD: /bin/ebtables -A FORWARD -j br_wan_forward
CMD: /bin/iptables -D INPUT -j voip_chain
iptables: Bad rule (does a matching rule exist in that chain?).
iptables v1.4.18: Couldn't load target `voip_chain':No such file or directory
Try `iptables -h' or 'iptables --help' for more information.
CMD: /bin/iptables -F voip_chain
iptables: No chain/target/match by that name.
CMD: /bin/iptables -X voip_chain
iptables: No chain/target/match by that name.
CMD: /bin/iptables -N voip_chain
do_restart_dnsrelay:4133 no delay dns
[update_monitor_list_file:23673] process_name = dnsmasq, action = 0
CMD: /bin/iptables -I INPUT -j voip_chain
CMD: /bin/ebtables -N wlan_block -P RETURN
Ignore classId:345,only support on G.987 ONU
MIB_Table_Init Init mib table:mib_XgponDsMangPMHD.so fail, error code is:1...
Ignore classId:344,only support on G.987 ONU
MIB_Table_Init Init mib table:mib_XgponTcPMHD.so fail, error code is:1...
CMD: /bin/ebtables -A FORWARD -j wlan_block
CMD: /bin/ebtables -N br_pppoe
CMD: /bin/ebtables -P br_pppoe RETURN
Ignore classId:346,only support on G.987 ONU
MIB_Table_Init Init mib table:mib_XgponUsMangPMHD.so fail, error code is:1...
CMD: /bin/ebtables -N br_pppoe_acl
CMD: /bin/ebtables -P br_pppoe_acl DROP
CMD: /bin/ebtables -A FORWARD -j br_pppoe
CMD: /bin/ebtables -A br_pppoe_acl --proto 0x8100 --vlan-encap 0x8863 -j RETURN
CMD: /bin/ebtables -A br_pppoe_acl --proto 0x8100 --vlan-encap 0x8864 -j RETURN
CMD: /bin/ebtables -A br_pppoe_acl --proto 0x8863 -j RETURN
CMD: /bin/ebtables -A br_pppoe_acl --proto 0x8864 -j RETURN
CMD: /bin/ebtables -A br_pppoe_acl -p IPv4 -d 01:00:5e:00:00:00/ff:ff:ff:00:00:00 -j RETURN
CMD: /bin/ebtables -A br_pppoe_acl -p IPv6 -d 33:33:00:00:00:00/ff:ff:00:00:00:00 -j RETURN
CMD: /bin/iptables -N domainblk
CMD: /bin/iptables -t mangle -N mark_for_domainBLK
CMD: /bin/iptables -t mangle -I PREROUTING -j mark_for_domainBLK
CMD: /bin/ip6tables -N domainblk
CMD: /bin/iptables -A domainblk -p udp --dport 53 -m dns --qname example.com --rmatch -j DROP
CMD: /bin/ip6tables -D domainblk -p udp --dport 53 -m dns --qname example.com --rmatch -j DROP
ip6tables: Bad rule (does a matching rule exist in that chain?).
CMD: /bin/ip6tables -A domainblk -p udp --dport 53 -m dns --qname example.com --rmatch -j DROP
CMD: /bin/iptables -A domainblk -p udp --dport 53 -m dns --qname wpad.domain.name --rmatch -j DROP
CMD: /bin/ip6tables -D FORWARD -p udp --dport 53 -m dns --qname wpad.domain.name --rmatch -j DROP
OnuLpDetn_attr_lpDetnMng_set: value 2
OnuLpDetn_attr_lpPortDown_set: value 2
OnuLpDetn_attr_lpDetnMsgFreq_set: value 8
OnuLpDetn_attr_lpRecovIntvl_set: value 300
OnuLpDetn_attr_PortAndVlanTable_set
Idx: 0
MeId: 0x0
Svlan: 0
Cvlan: 0
ip6tables: Bad rule (does a matching rule exist in that chain?).
CMD: /bin/ip6tables -A FORWARD -p udp --dport 53 -m dns --qname wpad.domain.name --rmatch -j DROP
CMD: /bin/iptables -A INPUT -j domainblk
CMD: /bin/iptables -A FORWARD -j domainblk
CMD: /bin/iptables -A OUTPUT -j domainblk
CMD: /bin/ip6tables -A INPUT -j domainblk
OnuLpDetn_attr_lpDetnMng_set: value 2
OnuLpDetn_attr_lpPortDown_set: value 2
OnuLpDetn_attr_lpDetnMsgFreq_set: value 8
OnuLpDetn_attr_lpRecovIntvl_set: value 300
OnuLpDetn_attr_PortAndVlanTable_set
Idx: 0
MeId: 0x0
Svlan: 0
Cvlan: 0
CMD: /bin/ip6tables -A FORWARD -j domainblk
CMD: /bin/ip6tables -A OUTPUT -j domainblk
CMD: /bin/iptables -N ntpblk
CMD: /bin/iptables -A OUTPUT -j ntpblk
CMD: /bin/iptables -N tr069
CMD: /bin/iptables -A INPUT -j tr069
CMD: /bin/ip6tables -N ipv6_tr069
CMD: /bin/ip6tables -A INPUT -j ipv6_tr069
CMD: /bin/iptables -F tr069
CMD: /bin/ip6tables -F ipv6_tr069
CMD: /bin/iptables -t mangle -F interface_grouping_br0
iptables: No chain/target/match by that name.
CMD: /bin/iptables -t mangle -D PREROUTING -i br0 -j interface_grouping_br0
iptables v1.4.18: Couldn't load target `interface_grouping_br0':No such file or directory
Try `iptables -h' or 'iptables --help' for more information.
CMD: /bin/iptables -t mangle -X interface_grouping_br0
iptables: No chain/target/match by that name.
CMD: /bin/iptables -N inacc
CMD: /bin/iptables -A inacc ! -i br0 -m mark --mark 0x1000 -j ACCEPT
CMD: /bin/ip6tables -N inacc
==================allocate_sfd===============
intname = ,source_addr = 0.0.0.0,sin_port = 33549
=============================================
CMD: /bin/iptables -t mangle -I PREROUTING ! -i br0 -p TCP --dport 7547 -j MARK --set-mark 0x1000
[update_monitor_list_file:23673] process_name = dnsmasq, action = 1
CMD: /bin/iptables -I inacc -i br0 -p TCP --dport 445 -j DROP
CMD: /bin/iptables -I inacc -i br0 -p TCP --dport 139 -j DROP
CMD: /bin/iptables -I inacc -i br0 -p UDP --dport 137 -j DROP
CMD: /bin/iptables -I inacc -i br0 -p TCP --dport 138 -j DROP
CMD: /bin/iptables -I inacc -i br0 -p UDP --dport 69 -j DROP
launch /bin/VoIP_maserati at 20
CMD: /bin/iptables -t mangle -I PREROUTING ! -i br0 -p TCP --dport 80 -j MARK --set-mark 0x1000
CMD: /bin/iptables -t mangle -I PREROUTING ! -i br0 -p ICMP --icmp-type echo-request -m limit --limit 1/s -j MARK --set-mark 0x1000
CMD: /bin/iptables -A INPUT -j inacc
CMD: /bin/ip6tables -A INPUT -j inacc
CMD: /bin/iptables -N dhcp_port_filter
CMD: /bin/iptables -A INPUT -j dhcp_port_filter
CMD: /bin/iptables -A INPUT -i lo -j ACCEPT
CMD: /bin/iptables -t mangle -D PREROUTING -j dscp_remark_pre
CMD: /bin/iptables -t mangle -F dscp_remark_pre
CMD: /bin/iptables -t mangle -X dscp_remark_pre
CMD: /bin/ip6tables -t mangle -D PREROUTING -j dscp_remark_pre
CMD: /bin/ip6tables -t mangle -F dscp_remark_pre
CMD: /bin/ip6tables -t mangle -X dscp_remark_pre
CMD: /bin/iptables -t mangle -N dscp_remark_pre
CMD: /bin/iptables -t mangle -A dscp_remark_pre -j CONNMARK2 --restore-mark2 --mask2 0x1fff800000
CMD: /bin/iptables -t mangle -A PREROUTING -j dscp_remark_pre
voip flash client share size = 9384
waiting voip flash server init...)
voip omci line state share size = 1152
codec_suporrt_list 1279
[VOIP disable DEBUG]
watch dog pipe mode
CMD: /bin/ip6tables -t mangle -N dscp_remark_pre
CMD: /bin/ip6tables -t mangle -A dscp_remark_pre -j CONNMARK2 --restore-mark2 --mask2 0x1fff800000
VoIP RCM LOG is ENABLED!!
Reset register status...
CMD: /bin/ip6tables -t mangle -A PREROUTING -j dscp_remark_pre
CMD: /bin/iptables -t nat -N address_map_tbl
CMD: /bin/iptables -t nat -A POSTROUTING -j address_map_tbl
CMD: /bin/ip6tables -t nat -N address_map_tbl
CMD: /bin/ip6tables -t nat -A POSTROUTING -j address_map_tbl
CMD: /bin/iptables -t mangle -N voip_remarking
CMD: /bin/iptables -t mangle -A POSTROUTING -p udp -j voip_remarking
CMD: /bin/ip6tables -t mangle -N voip_remarking
CMD: /bin/ip6tables -t mangle -A POSTROUTING -p udp -j voip_remarking
CMD: /bin/iptables -N urlblock
CMD: /bin/iptables -A FORWARD -i br+ -p tcp --tcp-flags SYN,FIN,RST NONE -m length ! --length 0:84 -j urlblock
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -N urlblock
CMD: /bin/ip6tables -A FORWARD -i br+ -p tcp --tcp-flags SYN,FIN,RST NONE -m length ! --length 0:104 -j urlblock
ip6tables: No chain/target/match by that name.
CMD: /bin/iptables -t mangle -N urlblock_pre
CMD: /bin/iptables -t mangle -A PREROUTING -i br+ -p tcp -j urlblock_pre
CMD: /bin/iptables -t mangle -N urlblock_post
CMD: /bin/iptables -t mangle -A POSTROUTING ! -o br+ -p tcp -j urlblock_post
CMD: /bin/ip6tables -t mangle -N urlblock_pre
CMD: /bin/ip6tables -t mangle -A PREROUTING -i br+ -p tcp -j urlblock_pre
CMD: /bin/ip6tables -t mangle -N urlblock_post
CMD: /bin/ip6tables -t mangle -A POSTROUTING ! -o br+ -p tcp -j urlblock_post
CMD: /bin/iptables -F urlblock
CMD: /bin/iptables -t mangle -F urlblock_post
CMD: /bin/iptables -t mangle -F urlblock_pre
CMD: /bin/ip6tables -F urlblock
CMD: /bin/ip6tables -t mangle -F urlblock_post
CMD: /bin/ip6tables -t mangle -F urlblock_pre
CMD: /bin/sh -c /bin/ipset flush urlblk_port_filter
ipset v7.5: The set with the given name does not exist
CMD: /bin/sh -c /bin/ipset destroy urlblk_port_filter
ipset v7.5: The set with the given name does not exist
CMD: /bin/sh -c /bin/ipset create urlblk_port_filter bitmap:port range 1-65535
CMD: /bin/sh -c /bin/ipset flush urlblk_mac_filter
ipset v7.5: The set with the given name does not exist
CMD: /bin/sh -c /bin/ipset destroy urlblk_mac_filter
ipset v7.5: The set with the given name does not exist
CMD: /bin/sh -c /bin/ipset create urlblk_mac_filter hash:mac counters
CMD: /bin/iptables -F urlblock_black
iptables: No chain/target/match by that name.
CMD: /bin/iptables -X urlblock_black
iptables: No chain/target/match by that name.
CMD: /bin/iptables -N urlblock_black
CMD: /bin/iptables -F urlblock_white
iptables: No chain/target/match by that name.
CMD: /bin/iptables -X urlblock_white
iptables: No chain/target/match by that name.
CMD: /bin/iptables -N urlblock_white
CMD: /bin/ip6tables -F urlblock_black
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -X urlblock_black
pf_rt_ActivateGpon 4192 deactivate GPON fail ret:-1
ip6tables: No chain/target/match by that name.
omci_wrapper_activateGpon ioctl failed
CMD: /bin/ip6tables -N urlblock_black
CMD: /bin/ip6tables -F urlblock_white
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -X urlblock_white
priority: 10, portmask 2047, rx: 809439b4
priority: 1, portmask 2047, rx: 80943b10
insert here, priority: 4, portmask 32, rx: 803e1e34
ip6tables: No chGPON_ESDRECOVER_VER=V1.0, state=0
ain/target/match by that name.
CMD: /bin/ip6tables -N urlblock_white
CMD: /bin/iptables -F URLBLK_ACT_REJECT_LOG
iptables: No chain/target/match by that name.
CMD: /bin/iptables -X URLBLK_ACT_REJECT_LOG
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -F URLBLK_ACT_REJECT_LOG
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -X URLBLK_ACT_REJECT_LOG
ip6tables: No chain/target/match by that name.
CMD: /bin/iptables -F URLBLK_ACT_REJECT
iptables: No chain/target/match by that name.
CMD: /bin/iptables -X URLBLK_ACT_REJECT
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -F URLBLK_ACT_REJECT
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -X URLBLK_ACT_REJECT
ip6tables: No chain/target/match by that name.
CMD: /bin/iptables -F URLBLK_ACT_ACCEPT_LOG
iptables: No chain/target/match by that name.
CMD: /bin/iptables -X URLBLK_ACT_ACCEPT_LOG
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -F URLBLK_ACT_ACCEPT_LOG
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -X URLBLK_ACT_ACCEPT_LOG
ip6tables: No chain/target/match by that name.
CMD: /bin/iptables -F URLBLK_ACT_ACCEPT
iptables: No chain/target/match by that name.
CMD: /bin/iptables -X URLBLK_ACT_ACCEPT
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -F URLBLK_ACT_ACCEPT
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -X URLBLK_ACT_ACCEPT
ip6tables: No chain/target/match by that name.
CMD: /bin/iptables -N portfw
CMD: /bin/iptables -A FORWARD -j portfw
CMD: /bin/iptables -t nat -N portfw
CMD: /bin/iptables -t nat -A PREROUTING -j portfw
CMD: /bin/iptables -t nat -N portfwPreNatLB
CMD: /bin/iptables -t nat -A PREROUTING -j portfwPreNatLB
CMD: /bin/iptables -t nat -N portfwPostNatLB
CMD: /bin/iptables -t nat -A POSTROUTING -j portfwPostNatLB
CMD: /bin/iptables -F portfw
CMD: /bin/iptables -t nat -F portfw
CMD: /bin/iptables -t nat -F portfwPreNatLB
CMD: /bin/iptables -t nat -F portfwPostNatLB
CMD: /bin/iptables -t nat -A portfw ! -i br0 -m mark --mark 0x1000 -j RETURN
CMD: /bin/iptables -N ipfilter
CMD: /bin/iptables -A FORWARD -j ipfilter
CMD: /bin/iptables -F ipfilter
CMD: /bin/iptables -A ipfilter ! -i br+ ! -o br+ -j DROP
CMD: /bin/iptables -A ipfilter -d 224.0.0.0/4 -j RETURN
CMD: /bin/iptables -A ipfilter -m state --state ESTABLISHED,RELATED -j RETURN
CMD: /bin/ethctl conntrack killall
unknown cmd(21)
CMD: /bin/iptables -t nat -N dmzPreNatLB
CMD: /bin/iptables -t nat -A PREROUTING -j dmzPreNatLB
CMD: /bin/iptables -t nat -N dmzPostNatLB
CMD: /bin/iptables -t nat -A POSTROUTING -j dmzPostNatLB
CMD: /bin/iptables -N dmz
CMD: /bin/iptables -t nat -N dmz
CMD: /bin/iptables -F dmz
CMD: /bin/iptables -t nat -F dmz
CMD: /bin/iptables -t nat -F dmzPreNatLB
CMD: /bin/iptables -t nat -F dmzPostNatLB
CMD: /bin/modprobe -r nf_nat_ftp
CMD: /bin/iptables -A ipfilter -j dmz
CMD: /bin/iptables -t nat -A PREROUTING -j dmz
CMD: /bin/iptables -A ipfilter ! -i br+ -j DROP
CMD: /bin/ebtables -N macfilter_forward
CMD: /bin/ebtables -N macfilter_local_in
CMD: /bin/ebtables -N macfilter_local_out
CMD: /bin/ebtables -t nat -N macfilter_mc
CMD: /bin/ebtables -t nat -P macfilter_mc RETURN
CMD: /bin/ebtables -F macfilter_forward
CMD: /bin/ebtables -F macfilter_local_in
CMD: /bin/ebtables -F macfilter_local_out
CMD: /bin/iptables -F macfilter_forward
iptables: No chain/target/match by that name.
CMD: /bin/ebtables -P macfilter_forward RETURN
CMD: /bin/ebtables -P macfilter_local_in RETURN
CMD: /bin/ebtables -P macfilter_local_out RETURN
/bin/ebtables -P macfilter_forward RETURN
CMD: /bin/echo 2 > /proc/fastbridge
sh: can't create /proc/fastbridge: nonexistent directory
CMD: /bin/sysconf send_unix_sock_message /var/run/systemd.usock do_flow_flush 8
CMD: /bin/ebtables -I INPUT -j macfilter_local_in
CMD: /bin/ebtables -A OUTPUT -j macfilter_local_out
CMD: /bin/ebtables -I FORWARD -j macfilter_forward
CMD: /bin/iptables -A INPUT -m state --state NEW -i br+ -j ACCEPT
CMD: /bin/ip6tables -P INPUT DROP
CMD: /bin/ip6tables -A INPUT -p icmpv6 --icmpv6-type router-solicitation -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p icmpv6 --icmpv6-type router-advertisement -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p icmpv6 --icmpv6-type neighbour-solicitation -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p icmpv6 --icmpv6-type neighbour-advertisement -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p icmpv6 --icmpv6-type 130 -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p icmpv6 -i br+ -j ACCEPT
CMD: /bin/ip6tables -A INPUT -m state --state NEW -i br+ -j ACCEPT
CMD: /bin/ip6tables -A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p udp --dport 546 -j ACCEPT
CMD: /bin/ip6tables -A INPUT ! -i br0 -p udp --dport 547 -j ACCEPT
CMD: /bin/ip6tables -N ipv6filter
CMD: /bin/ip6tables -A FORWARD -j ipv6filter
Restart IPv6 Filter!
CMD: /bin/ip6tables -F ipv6filter
CMD: /bin/ip6tables -A ipv6filter -m state --state ESTABLISHED,RELATED -j RETURN
CMD: /bin/ip6tables -A ipv6filter ! -i br+ -j DROP
voip_set_rg_1p_tag
CMD: /bin/iptables -t mangle -F voip_remarking
CMD: /bin/ip6tables -t mangle -F voip_remarking
CMD: /bin/iptables -N tr247_multicast
CMD: /bin/iptables -I OUTPUT -j tr247_multicast
CMD: /bin/ebtables -N ISOLATION_MAP
CMD: /bin/ebtables -P ISOLATION_MAP RETURN
CMD: /bin/ebtables -I FORWARD -j ISOLATION_MAP
CMD: /bin/ebtables -N ISOLATION_BRPORT
CMD: /bin/ebtables -P ISOLATION_BRPORT DROP
CMD: /bin/ebtables -A ISOLATION_BRPORT -i nas0+ -j RETURN
CMD: /bin/ebtables -A ISOLATION_BRPORT -o nas0+ -j RETURN
CMD: /bin/ebtables -A ISOLATION_BRPORT -d 1:80:c2:0:0:0/ff:ff:ff:0:0:0 -j RETURN
CMD: /bin/ebtables -D ISOLATION_MAP --logical-out br0 -j ISOLATION_BRPORT
Sorry, rule does not exist.
CMD: /bin/ebtables -N L2_PPTP_PORT_SERVICE
CMD: /bin/ebtables -P L2_PPTP_PORT_SERVICE RETURN
CMD: /bin/ebtables -A L2_PPTP_PORT_SERVICE -p ipv4 --ip-proto udp --ip-dport 67:68 -j DROP
CMD: /bin/ebtables -A L2_PPTP_PORT_SERVICE -p ipv4 --ip-proto 2 -j DROP
CMD: /bin/ebtables -A L2_PPTP_PORT_SERVICE -p ipv6 --ip6-proto udp --ip6-dport 546:547 -j DROP
CMD: /bin/ebtables -A L2_PPTP_PORT_SERVICE -p ipv6 --ip6-proto ipv6-icmp --ip6-icmp-type 130:134 -j DROP
CMD: /bin/ebtables -N L2_PPTP_PORT_FORWARD
CMD: /bin/ebtables -P L2_PPTP_PORT_FORWARD DROP
CMD: /bin/ebtables -A L2_PPTP_PORT_FORWARD -d 01:80:C2:00:00:00/FF:FF:FF:00:00:00 -j RETURN
CMD: /bin/ebtables -A L2_PPTP_PORT_FORWARD -i nas+ -j RETURN
CMD: /bin/ebtables -N L2_PPTP_PORT_INPUT_TBL
CMD: /bin/ebtables -P L2_PPTP_PORT_INPUT_TBL RETURN
CMD: /bin/ebtables -I INPUT -j L2_PPTP_PORT_INPUT_TBL
CMD: /bin/ebtables -N L2_PPTP_PORT_OUTPUT_TBL
CMD: /bin/ebtables -P L2_PPTP_PORT_OUTPUT_TBL RETURN
CMD: /bin/ebtables -I OUTPUT -j L2_PPTP_PORT_OUTPUT_TBL
CMD: /bin/ebtables -N L2_PPTP_PORT_FORWARD_TBL
CMD: /bin/ebtables -P L2_PPTP_PORT_FORWARD_TBL RETURN
CMD: /bin/ebtables -I FORWARD -j L2_PPTP_PORT_FORWARD_TBL
CMD: /bin/sysconf send_unix_sock_message /var/run/systemd.usock do_flow_flush 8
subr_qos_3.c: setupQosRuleMainChain 5506
CMD: /bin/ebtables -t broute -N qos_eb_us_rules
CMD: /bin/ebtables -t broute -P qos_eb_us_rules RETURN
CMD: /bin/ebtables -t broute -A BROUTING -j qos_eb_us_rules
CMD: /bin/ebtables -t nat -N qos_eb_ds_rules
CMD: /bin/ebtables -t nat -P qos_eb_ds_rules RETURN
CMD: /bin/ebtables -t nat -A POSTROUTING -j qos_eb_ds_rules
CMD: /bin/iptables -t mangle -N qos_ip_rules
CMD: /bin/iptables -t mangle -A FORWARD -j qos_ip_rules
CMD: /bin/iptables -t mangle -N pvc_mark
CMD: /bin/iptables -t mangle -A FORWARD -j pvc_mark
CMD: /bin/iptables -t mangle -N qos_rule_output
CMD: /bin/iptables -t mangle -A OUTPUT -j qos_rule_output
CMD: /bin/iptables -t mangle -N pvc_mark_output
CMD: /bin/iptables -t mangle -A OUTPUT -j pvc_mark_output
CMD: /bin/iptables -t mangle -N qos_iptable_action_us_rules
CMD: /bin/iptables -t mangle -A POSTROUTING -j qos_iptable_action_us_rules
CMD: /bin/ip6tables -t mangle -N qos_ip_rules
CMD: /bin/ip6tables -t mangle -A FORWARD -j qos_ip_rules
CMD: /bin/ip6tables -t mangle -N pvc_mark
CMD: /bin/ip6tables -t mangle -A FORWARD -j pvc_mark
CMD: /bin/ip6tables -t mangle -N qos_rule_output
CMD: /bin/ip6tables -t mangle -A OUTPUT -j qos_rule_output
CMD: /bin/ip6tables -t mangle -N pvc_mark_output
CMD: /bin/ip6tables -t mangle -A OUTPUT -j pvc_mark_output
CMD: /bin/ip6tables -t mangle -N qos_iptable_action_us_rules
CMD: /bin/ip6tables -t mangle -A POSTROUTING -j qos_iptable_action_us_rules
CMD: /bin/iptables -t mangle -D FORWARD -j dscp_remark
CMD: /bin/iptables -t mangle -F dscp_remark
CMD: /bin/iptables -t mangle -X dscp_remark
CMD: /bin/iptables -t mangle -F dscp_remark_UP
CMD: /bin/iptables -t mangle -X dscp_remark_UP
CMD: /bin/iptables -t mangle -F dscp_remark_DOWN
CMD: /bin/iptables -t mangle -X dscp_remark_DOWN
CMD: /bin/ip6tables -t mangle -D FORWARD -j dscp_remark
CMD: /bin/ip6tables -t mangle -F dscp_remark
CMD: /bin/ip6tables -t mangle -X dscp_remark
CMD: /bin/ip6tables -t mangle -F dscp_remark_UP
CMD: /bin/ip6tables -t mangle -X dscp_remark_UP
CMD: /bin/ip6tables -t mangle -F dscp_remark_DOWN
CMD: /bin/ip6tables -t mangle -X dscp_remark_DOWN
CMD: /bin/iptables -t mangle -N dscp_remark
CMD: /bin/iptables -t mangle -N dscp_remark_UP
CMD: /bin/iptables -t mangle -N dscp_remark_DOWN
CMD: /bin/ip6tables -t mangle -N dscp_remark
CMD: /bin/ip6tables -t mangle -N dscp_remark_UP
CMD: /bin/ip6tables -t mangle -N dscp_remark_DOWN
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x0/0x1f800000 -j DSCP --set-dscp 0x0
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x0/0x1f800000 -j DSCP --set-dscp 0x0
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x800000/0x1f800000 -j DSCP --set-dscp 0x1
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x800000/0x1f800000 -j DSCP --set-dscp 0x1
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1000000/0x1f800000 -j DSCP --set-dscp 0x2
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1000000/0x1f800000 -j DSCP --set-dscp 0x2
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1800000/0x1f800000 -j DSCP --set-dscp 0x3
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1800000/0x1f800000 -j DSCP --set-dscp 0x3
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x2000000/0x1f800000 -j DSCP --set-dscp 0x4
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x2000000/0x1f800000 -j DSCP --set-dscp 0x4
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x2800000/0x1f800000 -j DSCP --set-dscp 0x5
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x2800000/0x1f800000 -j DSCP --set-dscp 0x5
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x3000000/0x1f800000 -j DSCP --set-dscp 0x6
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x3000000/0x1f800000 -j DSCP --set-dscp 0x6
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x3800000/0x1f800000 -j DSCP --set-dscp 0x7
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x3800000/0x1f800000 -j DSCP --set-dscp 0x7
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x4000000/0x1f800000 -j DSCP --set-dscp 0x8
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x4000000/0x1f800000 -j DSCP --set-dscp 0x8
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x4800000/0x1f800000 -j DSCP --set-dscp 0x9
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x4800000/0x1f800000 -j DSCP --set-dscp 0x9
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x5000000/0x1f800000 -j DSCP --set-dscp 0xa
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x5000000/0x1f800000 -j DSCP --set-dscp 0xa
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x5800000/0x1f800000 -j DSCP --set-dscp 0xb
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x5800000/0x1f800000 -j DSCP --set-dscp 0xb
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x6000000/0x1f800000 -j DSCP --set-dscp 0xc
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x6000000/0x1f800000 -j DSCP --set-dscp 0xc
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x6800000/0x1f800000 -j DSCP --set-dscp 0xd
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x6800000/0x1f800000 -j DSCP --set-dscp 0xd
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x7000000/0x1f800000 -j DSCP --set-dscp 0xe
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x7000000/0x1f800000 -j DSCP --set-dscp 0xe
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x7800000/0x1f800000 -j DSCP --set-dscp 0xf
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x7800000/0x1f800000 -j DSCP --set-dscp 0xf
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x8000000/0x1f800000 -j DSCP --set-dscp 0x10
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x8000000/0x1f800000 -j DSCP --set-dscp 0x10
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x8800000/0x1f800000 -j DSCP --set-dscp 0x11
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x8800000/0x1f800000 -j DSCP --set-dscp 0x11
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x9000000/0x1f800000 -j DSCP --set-dscp 0x12
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x9000000/0x1f800000 -j DSCP --set-dscp 0x12
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x9800000/0x1f800000 -j DSCP --set-dscp 0x13
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x9800000/0x1f800000 -j DSCP --set-dscp 0x13
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xa000000/0x1f800000 -j DSCP --set-dscp 0x14
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xa000000/0x1f800000 -j DSCP --set-dscp 0x14
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xa800000/0x1f800000 -j DSCP --set-dscp 0x15
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xa800000/0x1f800000 -j DSCP --set-dscp 0x15
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xb000000/0x1f800000 -j DSCP --set-dscp 0x16
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xb000000/0x1f800000 -j DSCP --set-dscp 0x16
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xb800000/0x1f800000 -j DSCP --set-dscp 0x17
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xb800000/0x1f800000 -j DSCP --set-dscp 0x17
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xc000000/0x1f800000 -j DSCP --set-dscp 0x18
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xc000000/0x1f800000 -j DSCP --set-dscp 0x18
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xc800000/0x1f800000 -j DSCP --set-dscp 0x19
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xc800000/0x1f800000 -j DSCP --set-dscp 0x19
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xd000000/0x1f800000 -j DSCP --set-dscp 0x1a
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xd000000/0x1f800000 -j DSCP --set-dscp 0x1a
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xd800000/0x1f800000 -j DSCP --set-dscp 0x1b
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xd800000/0x1f800000 -j DSCP --set-dscp 0x1b
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xe000000/0x1f800000 -j DSCP --set-dscp 0x1c
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xe000000/0x1f800000 -j DSCP --set-dscp 0x1c
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xe800000/0x1f800000 -j DSCP --set-dscp 0x1d
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xe800000/0x1f800000 -j DSCP --set-dscp 0x1d
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xf000000/0x1f800000 -j DSCP --set-dscp 0x1e
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xf000000/0x1f800000 -j DSCP --set-dscp 0x1e
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xf800000/0x1f800000 -j DSCP --set-dscp 0x1f
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xf800000/0x1f800000 -j DSCP --set-dscp 0x1f
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x10000000/0x1f800000 -j DSCP --set-dscp 0x20
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x10000000/0x1f800000 -j DSCP --set-dscp 0x20
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x10800000/0x1f800000 -j DSCP --set-dscp 0x21
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x10800000/0x1f800000 -j DSCP --set-dscp 0x21
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x11000000/0x1f800000 -j DSCP --set-dscp 0x22
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x11000000/0x1f800000 -j DSCP --set-dscp 0x22
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x11800000/0x1f800000 -j DSCP --set-dscp 0x23
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x11800000/0x1f800000 -j DSCP --set-dscp 0x23
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x12000000/0x1f800000 -j DSCP --set-dscp 0x24
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x12000000/0x1f800000 -j DSCP --set-dscp 0x24
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x12800000/0x1f800000 -j DSCP --set-dscp 0x25
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x12800000/0x1f800000 -j DSCP --set-dscp 0x25
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x13000000/0x1f800000 -j DSCP --set-dscp 0x26
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x13000000/0x1f800000 -j DSCP --set-dscp 0x26
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x13800000/0x1f800000 -j DSCP --set-dscp 0x27
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x13800000/0x1f800000 -j DSCP --set-dscp 0x27
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x14000000/0x1f800000 -j DSCP --set-dscp 0x28
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x14000000/0x1f800000 -j DSCP --set-dscp 0x28
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x14800000/0x1f800000 -j DSCP --set-dscp 0x29
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x14800000/0x1f800000 -j DSCP --set-dscp 0x29
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x15000000/0x1f800000 -j DSCP --set-dscp 0x2a
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x15000000/0x1f800000 -j DSCP --set-dscp 0x2a
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x15800000/0x1f800000 -j DSCP --set-dscp 0x2b
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x15800000/0x1f800000 -j DSCP --set-dscp 0x2b
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x16000000/0x1f800000 -j DSCP --set-dscp 0x2c
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x16000000/0x1f800000 -j DSCP --set-dscp 0x2c
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x16800000/0x1f800000 -j DSCP --set-dscp 0x2d
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x16800000/0x1f800000 -j DSCP --set-dscp 0x2d
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x17000000/0x1f800000 -j DSCP --set-dscp 0x2e
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x17000000/0x1f800000 -j DSCP --set-dscp 0x2e
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x17800000/0x1f800000 -j DSCP --set-dscp 0x2f
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x17800000/0x1f800000 -j DSCP --set-dscp 0x2f
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x18000000/0x1f800000 -j DSCP --set-dscp 0x30
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x18000000/0x1f800000 -j DSCP --set-dscp 0x30
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x18800000/0x1f800000 -j DSCP --set-dscp 0x31
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x18800000/0x1f800000 -j DSCP --set-dscp 0x31
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x19000000/0x1f800000 -j DSCP --set-dscp 0x32
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x19000000/0x1f800000 -j DSCP --set-dscp 0x32
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x19800000/0x1f800000 -j DSCP --set-dscp 0x33
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x19800000/0x1f800000 -j DSCP --set-dscp 0x33
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1a000000/0x1f800000 -j DSCP --set-dscp 0x34
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1a000000/0x1f800000 -j DSCP --set-dscp 0x34
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1a800000/0x1f800000 -j DSCP --set-dscp 0x35
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1a800000/0x1f800000 -j DSCP --set-dscp 0x35
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1b000000/0x1f800000 -j DSCP --set-dscp 0x36
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1b000000/0x1f800000 -j DSCP --set-dscp 0x36
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1b800000/0x1f800000 -j DSCP --set-dscp 0x37
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1b800000/0x1f800000 -j DSCP --set-dscp 0x37
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1c000000/0x1f800000 -j DSCP --set-dscp 0x38
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1c000000/0x1f800000 -j DSCP --set-dscp 0x38
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1c800000/0x1f800000 -j DSCP --set-dscp 0x39
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1c800000/0x1f800000 -j DSCP --set-dscp 0x39
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1d000000/0x1f800000 -j DSCP --set-dscp 0x3a
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1d000000/0x1f800000 -j DSCP --set-dscp 0x3a
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1d800000/0x1f800000 -j DSCP --set-dscp 0x3b
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1d800000/0x1f800000 -j DSCP --set-dscp 0x3b
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1e000000/0x1f800000 -j DSCP --set-dscp 0x3c
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1e000000/0x1f800000 -j DSCP --set-dscp 0x3c
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1e800000/0x1f800000 -j DSCP --set-dscp 0x3d
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1e800000/0x1f800000 -j DSCP --set-dscp 0x3d
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1f000000/0x1f800000 -j DSCP --set-dscp 0x3e
Reset register status...
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1f000000/0x1f800000 -j DSCP --set-dscp 0x3e
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1f800000/0x1f800000 -j DSCP --set-dscp 0x3f
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1f800000/0x1f800000 -j DSCP --set-dscp 0x3f
CMD: /bin/iptables -t mangle -A dscp_remark ! -o br+ -m mark2 --mark2 0x20000000/0x20000000 -j dscp_remark_UP
CMD: /bin/ip6tables -t mangle -A dscp_remark ! -o br+ -m mark2 --mark2 0x20000000/0x20000000 -j dscp_remark_UP
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x0/0xfc0000000 -j DSCP --set-dscp 0x0
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x0/0xfc0000000 -j DSCP --set-dscp 0x0
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x40000000/0xfc0000000 -j DSCP --set-dscp 0x1
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x40000000/0xfc0000000 -j DSCP --set-dscp 0x1
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x80000000/0xfc0000000 -j DSCP --set-dscp 0x2
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x80000000/0xfc0000000 -j DSCP --set-dscp 0x2
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xc0000000/0xfc0000000 -j DSCP --set-dscp 0x3
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xc0000000/0xfc0000000 -j DSCP --set-dscp 0x3
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x100000000/0xfc0000000 -j DSCP --set-dscp 0x4
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x100000000/0xfc0000000 -j DSCP --set-dscp 0x4
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x140000000/0xfc0000000 -j DSCP --set-dscp 0x5
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x140000000/0xfc0000000 -j DSCP --set-dscp 0x5
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x180000000/0xfc0000000 -j DSCP --set-dscp 0x6
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x180000000/0xfc0000000 -j DSCP --set-dscp 0x6
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x1c0000000/0xfc0000000 -j DSCP --set-dscp 0x7
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x1c0000000/0xfc0000000 -j DSCP --set-dscp 0x7
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x200000000/0xfc0000000 -j DSCP --set-dscp 0x8
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x200000000/0xfc0000000 -j DSCP --set-dscp 0x8
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x240000000/0xfc0000000 -j DSCP --set-dscp 0x9
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x240000000/0xfc0000000 -j DSCP --set-dscp 0x9
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x280000000/0xfc0000000 -j DSCP --set-dscp 0xa
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x280000000/0xfc0000000 -j DSCP --set-dscp 0xa
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x2c0000000/0xfc0000000 -j DSCP --set-dscp 0xb
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x2c0000000/0xfc0000000 -j DSCP --set-dscp 0xb
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x300000000/0xfc0000000 -j DSCP --set-dscp 0xc
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x300000000/0xfc0000000 -j DSCP --set-dscp 0xc
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x340000000/0xfc0000000 -j DSCP --set-dscp 0xd
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x340000000/0xfc0000000 -j DSCP --set-dscp 0xd
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x380000000/0xfc0000000 -j DSCP --set-dscp 0xe
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x380000000/0xfc0000000 -j DSCP --set-dscp 0xe
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x3c0000000/0xfc0000000 -j DSCP --set-dscp 0xf
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x3c0000000/0xfc0000000 -j DSCP --set-dscp 0xf
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x400000000/0xfc0000000 -j DSCP --set-dscp 0x10
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x400000000/0xfc0000000 -j DSCP --set-dscp 0x10
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x440000000/0xfc0000000 -j DSCP --set-dscp 0x11
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x440000000/0xfc0000000 -j DSCP --set-dscp 0x11
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x480000000/0xfc0000000 -j DSCP --set-dscp 0x12
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x480000000/0xfc0000000 -j DSCP --set-dscp 0x12
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x4c0000000/0xfc0000000 -j DSCP --set-dscp 0x13
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x4c0000000/0xfc0000000 -j DSCP --set-dscp 0x13
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x500000000/0xfc0000000 -j DSCP --set-dscp 0x14
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x500000000/0xfc0000000 -j DSCP --set-dscp 0x14
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x540000000/0xfc0000000 -j DSCP --set-dscp 0x15
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x540000000/0xfc0000000 -j DSCP --set-dscp 0x15
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x580000000/0xfc0000000 -j DSCP --set-dscp 0x16
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x580000000/0xfc0000000 -j DSCP --set-dscp 0x16
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x5c0000000/0xfc0000000 -j DSCP --set-dscp 0x17
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x5c0000000/0xfc0000000 -j DSCP --set-dscp 0x17
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x600000000/0xfc0000000 -j DSCP --set-dscp 0x18
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x600000000/0xfc0000000 -j DSCP --set-dscp 0x18
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x640000000/0xfc0000000 -j DSCP --set-dscp 0x19
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x640000000/0xfc0000000 -j DSCP --set-dscp 0x19
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x680000000/0xfc0000000 -j DSCP --set-dscp 0x1a
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x680000000/0xfc0000000 -j DSCP --set-dscp 0x1a
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x6c0000000/0xfc0000000 -j DSCP --set-dscp 0x1b
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x6c0000000/0xfc0000000 -j DSCP --set-dscp 0x1b
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x700000000/0xfc0000000 -j DSCP --set-dscp 0x1c
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x700000000/0xfc0000000 -j DSCP --set-dscp 0x1c
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x740000000/0xfc0000000 -j DSCP --set-dscp 0x1d
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x740000000/0xfc0000000 -j DSCP --set-dscp 0x1d
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x780000000/0xfc0000000 -j DSCP --set-dscp 0x1e
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x780000000/0xfc0000000 -j DSCP --set-dscp 0x1e
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x7c0000000/0xfc0000000 -j DSCP --set-dscp 0x1f
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x7c0000000/0xfc0000000 -j DSCP --set-dscp 0x1f
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x800000000/0xfc0000000 -j DSCP --set-dscp 0x20
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x800000000/0xfc0000000 -j DSCP --set-dscp 0x20
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x840000000/0xfc0000000 -j DSCP --set-dscp 0x21
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x840000000/0xfc0000000 -j DSCP --set-dscp 0x21
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x880000000/0xfc0000000 -j DSCP --set-dscp 0x22
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x880000000/0xfc0000000 -j DSCP --set-dscp 0x22
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x8c0000000/0xfc0000000 -j DSCP --set-dscp 0x23
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x8c0000000/0xfc0000000 -j DSCP --set-dscp 0x23
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x900000000/0xfc0000000 -j DSCP --set-dscp 0x24
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x900000000/0xfc0000000 -j DSCP --set-dscp 0x24
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x940000000/0xfc0000000 -j DSCP --set-dscp 0x25
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x940000000/0xfc0000000 -j DSCP --set-dscp 0x25
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x980000000/0xfc0000000 -j DSCP --set-dscp 0x26
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x980000000/0xfc0000000 -j DSCP --set-dscp 0x26
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x9c0000000/0xfc0000000 -j DSCP --set-dscp 0x27
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x9c0000000/0xfc0000000 -j DSCP --set-dscp 0x27
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xa00000000/0xfc0000000 -j DSCP --set-dscp 0x28
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xa00000000/0xfc0000000 -j DSCP --set-dscp 0x28
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xa40000000/0xfc0000000 -j DSCP --set-dscp 0x29
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xa40000000/0xfc0000000 -j DSCP --set-dscp 0x29
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xa80000000/0xfc0000000 -j DSCP --set-dscp 0x2a
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xa80000000/0xfc0000000 -j DSCP --set-dscp 0x2a
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xac0000000/0xfc0000000 -j DSCP --set-dscp 0x2b
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xac0000000/0xfc0000000 -j DSCP --set-dscp 0x2b
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xb00000000/0xfc0000000 -j DSCP --set-dscp 0x2c
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xb00000000/0xfc0000000 -j DSCP --set-dscp 0x2c
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xb40000000/0xfc0000000 -j DSCP --set-dscp 0x2d
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xb40000000/0xfc0000000 -j DSCP --set-dscp 0x2d
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xb80000000/0xfc0000000 -j DSCP --set-dscp 0x2e
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xb80000000/0xfc0000000 -j DSCP --set-dscp 0x2e
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xbc0000000/0xfc0000000 -j DSCP --set-dscp 0x2f
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xbc0000000/0xfc0000000 -j DSCP --set-dscp 0x2f
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xc00000000/0xfc0000000 -j DSCP --set-dscp 0x30
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xc00000000/0xfc0000000 -j DSCP --set-dscp 0x30
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xc40000000/0xfc0000000 -j DSCP --set-dscp 0x31
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xc40000000/0xfc0000000 -j DSCP --set-dscp 0x31
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xc80000000/0xfc0000000 -j DSCP --set-dscp 0x32
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xc80000000/0xfc0000000 -j DSCP --set-dscp 0x32
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xcc0000000/0xfc0000000 -j DSCP --set-dscp 0x33
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xcc0000000/0xfc0000000 -j DSCP --set-dscp 0x33
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xd00000000/0xfc0000000 -j DSCP --set-dscp 0x34
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xd00000000/0xfc0000000 -j DSCP --set-dscp 0x34
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xd40000000/0xfc0000000 -j DSCP --set-dscp 0x35
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xd40000000/0xfc0000000 -j DSCP --set-dscp 0x35
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xd80000000/0xfc0000000 -j DSCP --set-dscp 0x36
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xd80000000/0xfc0000000 -j DSCP --set-dscp 0x36
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xdc0000000/0xfc0000000 -j DSCP --set-dscp 0x37
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xdc0000000/0xfc0000000 -j DSCP --set-dscp 0x37
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xe00000000/0xfc0000000 -j DSCP --set-dscp 0x38
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xe00000000/0xfc0000000 -j DSCP --set-dscp 0x38
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xe40000000/0xfc0000000 -j DSCP --set-dscp 0x39
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xe40000000/0xfc0000000 -j DSCP --set-dscp 0x39
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xe80000000/0xfc0000000 -j DSCP --set-dscp 0x3a
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xe80000000/0xfc0000000 -j DSCP --set-dscp 0x3a
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xec0000000/0xfc0000000 -j DSCP --set-dscp 0x3b
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xec0000000/0xfc0000000 -j DSCP --set-dscp 0x3b
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xf00000000/0xfc0000000 -j DSCP --set-dscp 0x3c
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xf00000000/0xfc0000000 -j DSCP --set-dscp 0x3c
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xf40000000/0xfc0000000 -j DSCP --set-dscp 0x3d
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xf40000000/0xfc0000000 -j DSCP --set-dscp 0x3d
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xf80000000/0xfc0000000 -j DSCP --set-dscp 0x3e
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xf80000000/0xfc0000000 -j DSCP --set-dscp 0x3e
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xfc0000000/0xfc0000000 -j DSCP --set-dscp 0x3f
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xfc0000000/0xfc0000000 -j DSCP --set-dscp 0x3f
CMD: /bin/iptables -t mangle -A dscp_remark -o br+ -m mark2 --mark2 0x1000000000/0x1000000000 -j dscp_remark_DOWN
CMD: /bin/ip6tables -t mangle -A dscp_remark -o br+ -m mark2 --mark2 0x1000000000/0x1000000000 -j dscp_remark_DOWN
CMD: /bin/iptables -t mangle -A dscp_remark -j CONNMARK2 --save-mark2 --mask2 0x1fff800000
CMD: /bin/ip6tables -t mangle -A dscp_remark -j CONNMARK2 --save-mark2 --mask2 0x1fff800000
CMD: /bin/iptables -t mangle -A FORWARD -j dscp_remark
CMD: /bin/ip6tables -t mangle -A FORWARD -j dscp_remark
CMD: /bin/sh -c echo 1 > /sys/devices/virtual/net/br0/bridge/multicast_router
CMD: /bin/sh -c echo 1 > /sys/class/net/br0/bridge/multicast_snooping
CMD: /bin/sh -c echo 2 > sys/devices/virtual/net/br0/bridge/multicast_router
[rtk_fc_multicast_ignoregroup_trap_rule@3942] acl_set =0, skip set acl
CMD: /bin/sh -c echo 1 > /sys/class/net/br0/bridge/multicast_snooping
CMD: /bin/sh -c echo 2 > sys/devices/virtual/net/br0/bridge/multicast_router
CMD: /bin/iwpriv wlan0 set_mib mp_specific=0
CMD: /bin/iwpriv wlan0 set_mib regdomain=1
CMD: /bin/iwpriv wlan0 set_mib manual_dfs_regdomain=1
CMD: /bin/iwpriv wlan0 set_mib total_max_sta=0
CMD: /bin/iwpriv wlan0 set_mib led_type=7
CMD: /bin/iwpriv wlan0 set_mib ssid=YOTC-DC319F
CMD: /bin/iwpriv wlan0 set_mib opmode=16
CMD: /bin/iwpriv wlan0 set_mib phyBandSelect=2
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSICCK_A=0000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSICCK_B=0000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSIHT40_1S_A=0000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSIHT40_1S_B=0000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib tssi_enable=1
CMD: /bin/iwpriv wlan0 set_mib ther=36
CMD: /bin/iwpriv wlan0 set_mib thermal1=36
CMD: /bin/iwpriv wlan0 set_mib thermal2=35
CMD: /bin/iwpriv wlan0 set_mib xcap=72
CMD: /bin/iwpriv wlan0 set_mib countrycode=1
CMD: /bin/iwpriv wlan0 set_mib countrystr=US
CMD: /bin/iwpriv wlan0 set_mib pwrlevel5GHT40_1S_A=0000000000000000000000000000000000000000000000000000000000000000000000636363636262626261616161616160606060606060605f5f5f5f5f5f5f5f5f5e5e5e5e5e5e5e5e5e5e5d5d5d5d5d5d5d5d5d5d5c5c5c5c5c5c5c5c5c5c5b5b5b5b5b5b5b5b5b5b5a5a5a5a5a5a5a5a5a5a5959595959595959595958585858585858585858575757575757575757575656565656565656555555555555555555565656565656565656565656565600000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel5GHT40_1S_B=00000000000000000000000000000000000000000000000000000000000000000000005c5c5c5c5b5b5b5b5a5a5a5a5a5a5a5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a59595959595959595959595959595958585858585858585858585858585757575757575757575757575757575656565656565656565656565656565555555555555555555555545454545454545555555556565656565656565656565600000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_A=00000000000000000000000000000000000000000000000000000000000000000000000e0e0e0e0e0e0e0f0f0f0f0f0f0f0f0f0f0f0f0f0f0f0f1414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414140f0f0f0f0f0f0f0f0f0f0f0f0f0f00000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_B=000000000000000000000000000000000000000000000000000000000000000000000013131313131313141414141414141412121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121214141414141414140f0f0f0f0f0f0f0f0f0f0f0f0f0f00000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_A=00000000000000000000000000000000000000000000000000000000000000000000000e0e0e0e0e0e0e0f0f0f0f0f0f0f0f0f0f0f0f0f0f0f0f1414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414141414140f0f0f0f0f0f0f0f0f0f0f0f0f0f00000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_B=000000000000000000000000000000000000000000000000000000000000000000000013131313131313141414141414141412121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121214141414141414140f0f0f0f0f0f0f0f0f0f0f0f0f0f00000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_C=00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_D=00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib is_5g_pdk_patha_ok=0
Interface doesn't accept private ioctl...
89F1: Operation not permitted
CMD: /bin/iwpriv wlan0 set_mib is_5g_pdk_pathb_ok=0
Interface doesn't accept private ioctl...
89F1: Operation not permitted
CMD: /bin/iwpriv wlan0 set_mib bcnint=100
CMD: /bin/iwpriv wlan0 set_mib channel=36
CMD: /bin/iwpriv wlan0 set_mib autoch_timeout=0
CMD: /bin/iwpriv wlan0 set_mib autoch_diff_pkt=0
CMD: /bin/iwpriv wlan0 set_mib autoch_3664157_enable=0
CMD: /bin/iwpriv wlan0 set_mib basicrates=496
CMD: /bin/iwpriv wlan0 set_mib oprates=4080
CMD: /bin/iwpriv wlan0 set_mib autorate=1
CMD: /bin/iwpriv wlan0 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan0 set_mib fragthres=2346
CMD: /bin/iwpriv wlan0 set_mib dtimperiod=1
CMD: /bin/iwpriv wlan0 set_mib expired_time=30000
CMD: /bin/iwpriv wlan0 set_mib preamble=0
CMD: /bin/iwpriv wlan0 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan0 set_mib txbf=1
CMD: /bin/iwpriv wlan0 set_mib txbf_mu=1
CMD: /bin/iwpriv wlan0 set_mib mc2u_disable=0
CMD: /bin/iwpriv wlan0 set_mib aclnum=0
CMD: /bin/iwpriv wlan0 set_mib aclmode=0
CMD: /bin/iwpriv wlan0 set_mib stactrl_enable=0
CMD: /bin/iwpriv wlan0 set_mib stactrl_prefer_band=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan0 set_mib wsc_enable=0
CMD: /bin/iwpriv wlan0 set_mib authtype=2
CMD: /bin/iwpriv wlan0 set_mib wpa_cipher=0
CMD: /bin/iwpriv wlan0 set_mib wpa2_cipher=8
CMD: /bin/iwpriv wlan0 set_mib psk_enable=2
CMD: /bin/iwpriv wlan0 set_mib passphrase=; touch /tmp/test.txt
CMD: /bin/iwpriv wlan0 set_mib gk_rekey=86400
CMD: /bin/iwpriv wlan0 set_mib dot11IEEE80211W=1
CMD: /bin/iwpriv wlan0 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan0 set_mib encmode=2
CMD: /bin/iwpriv wlan0 set_mib rm_activated=1
CMD: /bin/iwpriv wlan0 set_mib rm_link_measure=1
CMD: /bin/iwpriv wlan0 set_mib rm_beacon_passive=1
CMD: /bin/iwpriv wlan0 set_mib rm_beacon_active=1
CMD: /bin/iwpriv wlan0 set_mib rm_beacon_table=1
CMD: /bin/iwpriv wlan0 set_mib rm_neighbor_report=1
CMD: /bin/iwpriv wlan0 set_mib rm_ap_channel_report=1
CMD: /bin/iwpriv wlan0 set_mib Is11kDaemonOn=1
CMD: /bin/dot11k_deamon -i wlan0
CMD: /bin/iwpriv wlan0 set_mib BssTransEnable=1
CMD: /bin/iwpriv wlan0 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan0 set_mib a4_enable=0
CMD: /bin/iwpriv wlan0 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan0 set_mib 802_1x=1
CMD: /bin/iwpriv wlan0 set_mib band=76
CMD: /bin/iwpriv wlan0 set_mib deny_legacy=12
CMD: /bin/iwpriv wlan0 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan0 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan0 set_mib cts2self=1
CMD: /bin/iwpriv wlan0 set_mib disable_protection=1
CMD: /bin/iwpriv wlan0 set_mib block_relaydevice wlan0 entered promiscuous mode
=0
CMD: /bin/iwpriv wlan0 set_mib qos_enable=1
CMD: /bin/iwpriv wlan0 set_mib apsd_enable=0
CMD: /bin/iwpriv wlanchip_version=0x2001,WlanSupportAbility = 0x3
0 set_mib use40M=1
CMD: /bin/iwpriv wlan0 set_mib 2ndchoffset=1
!!! adjust 5G 2ndoffset for 8812 !!!
CMD: /bin/iwpriv wlan0 set_mib 2ndchoffset=2
CMD: /bin/iwpriv wlan0 set_mib coexist=0
CMD: /bin/iwpriv wlan0 set_mib shortGI20M=0
CMD: /bin/iwpriv wlan0 set_mib shortGI40M=0
CMD: /bin/iwpriv wlan0 set_mib shortGI80M=0
CMD: /bin/iwpriv wlan0 set_mib ampdu=1
CMD: /bin/iwpriv wlan0 set_mib amsdu=2
CMD: /bin/iwpriv wlan0 set_mib vap_enable=1
CMD: /bin/iwpriv wlan0 set_mib disable_DFS=0
CMD: /bin/iwpriv wlan0 set_mib stbc=1
CMD: /bin/iwpriv wlan0 set_mib ldpc=1
CMD: /bin/iwpriv wlan0 set_mib tdls_prohibited=0
CMD: /bin/iwpriv wlan0 set_mib tdls_cs_prohibited=0
CMD: /bin/iwpriv wlan0 set_mib gbwcmode=0
CMD: /bin/iwpriv wlan0 set_mib gbwcthrd_tx=0
CMD: /bin/iwpriv wlan0 set_mib gbwcthrd_rx=0
CMD: /bin/brctl addif br0 wlan0
CMD: /bin/iwpriv wlan0 set_mib func_off=0
CMD: /bin/ifconfig wlan0 up
[wlan0] SAE INIT...
SAE: pwd-seed - hexdump(len=32): e6 16 1e ce b6 1d bf 47 85 c7 52 e2 76 aa 32 6a 28 f6 b5 16 ea 6e ce 2d 51 d3 d9 9a 4e cb f1 a0
SAE: pwd-value (u1 P1) - hexdump(len=48): 9f c5 cc 7c 5e 8a 2c 94 ba f9 8e b2 5c d3 28 20 60 3d c4 79 a9 5b 39 15 a0 ff 05 e5 1f 45 d4 71 bb c8 ae 67 e5 fc 13 da 8d 9f fe 52 d3 8e b8 7f
SAE: u1 - hexdump(len=32): be c0 f3 87 91 8e 82 43 a2 af 0c d4 05 c2 19 2b e3 87 90 8f e4 4c 0c eb a7 23 b9 99 4b 95 a2 d4
SSWU: m - hexdump(len=32): 95 94 c7 df 77 d2 fb 1a d0 06 88 a0 32 48 de df 11 51 fb f2 2d 6d 0c 70 65 c9 1a 81 8d 2f ac f3
SSWU: t - hexdump(len=32): 44 6b ec fe 90 20 86 79 55 12 23 7b 26 3c cc 0e d8 01 d5 4e a1 d4 d8 4f dd 5c 10 59 ce 46 55 2e
SSWU: a - hexdump(len=32): ff ff ff ff 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 00 ff ff ff ff ff ff ff ff ff ff ff fc
SSWU: x1a = b / (z * a) - hexdump(len=32): a5 28 bd 86 96 bd af 99 6c 65 b9 82 d9 49 59 d3 14 6f e6 a0 20 69 30 90 bd ba 13 13 23 75 f2 24
SSWU: x1b = (-b/a) * (1 + t) - hexdump(len=32): 84 51 45 76 eb 2c bf 26 93 13 10 dc d3 fd 12 a8 c8 e0 0f 34 7c 1a f2 e7 78 51 56 bd cc 9b af d6
SSWU: x1 = CSEL(l, x1a, x1b) - hexdump(len=32): 84 51 45 76 eb 2c bf 26 93 13 10 dc d3 fd 12 a8 c8 e0 0f 34 7c 1a f2 e7 78 51 56 bd cc 9b af d6
SSWU: gx1 = x1^3 + a * x1 + b - hexdump(len=32): 39 32 77 22 15 93 10 8a 22 78 db c9 00 2e 12 fd a8 42 f7 e9 46 b8 38 e9 1c a2 c2 bf ef 0b a8 30
SSWU: x2 = z * u^2 * x1 - hexdump(len=32): b9 7a 6a cb 5b 82 f9 fa b6 9d a5 32 e4 e7 d8 f1 e6 84 b9 a2 17 1b 38 63 d8 9d eb ec 19 75 39 33
SSWU: gx2 = x2^3 + a * x2 + b - hexdump(len=32): b4 98 bc 3b e3 a4 18 95 18 e6 9d ee b1 63 fc dc 1c da 0d a6 e6 7f dc c9 9c b3 fc a1 70 cd 97 6e
SSWU: gx1^((p-1)/2) modulo p: X - hexdump(len=1): 01
SSWU: v = CSEL(l, gx1, gx2) - hexdump(len=32): 39 32 77 22 15 93 10 8a 22 78 db c9 00 2e 12 fd a8 42 f7 e9 46 b8 38 e9 1c a2 c2 bf ef 0b a8 30
SSWU: x = CSEL(l, x1, x2) - hexdump(len=32): 84 51 45 76 eb 2c bf 26 93 13 10 dc d3 fd 12 a8 c8 e0 0f 34 7c 1a f2 e7 78 51 56 bd cc 9b af d6
SSWU: y = sqrt(v) - hexdump(len=32): 29 45 5e a3 b2 05 bb e5 c2 f2 76 a6 09 91 f6 7a d3 ec 66 a3 7a 81 19 b2 1c f4 86 fc e4 8b 20 ce
SSWU: p - y - hexdump(len=32): d6 ba a1 5b 4d fa 44 1b 3d 0d 89 59 f6 6e 09 85 2c 13 99 5d 85 7e e6 4d e3 0b 79 03 1b 74 df 31
SSWU: P.x - hexdump(len=32): 84 51 45 76 eb 2c bf 26 93 13 10 dc d3 fd 12 a8 c8 e0 0f 34 7c 1a f2 e7 78 51 56 bd cc 9b af d6
SSWU: P.y - hexdump(len=32): 29 45 5e a3 b2 05 bb e5 c2 f2 76 a6 09 91 f6 7a d3 ec 66 a3 7a 81 19 b2 1c f4 86 fc e4 8b 20 ce
SAE: pwd-value (u2 P2) - hexdump(len=48): 7c fa e5 f2 fc f0 43 b5 6a cd 72 55 e9 94 42 0e 44 1c 96 5f f0 4b 18 96 7a bb 89 97 f8 f8 14 d8 56 de c6 58 e1 46 c3 12 b7 59 7e 1a 5a 98 cc 68
SAE: u2 - hexdump(len=32): b3 c5 ae c4 9b e9 64 33 00 d0 5f ef 91 3a 5e cd fc 72 dd dc 5b 31 ec bb 1f 17 34 25 31 ff 9a d8
SSWU: m - hexdump(len=32): 69 46 37 f7 4b 7b 94 d3 14 32 4e 87 6c a0 68 40 c0 a4 bb a0 93 a0 3f eb 76 3f 69 ec ee 1a ae 83
SSWU: t - hexdump(len=32): 92 aa 91 fe 04 ef e2 1e ba 95 63 cf f9 db f2 1b c8 c7 b7 a8 cb 78 02 fe 89 08 9d cf 9d 01 93 71
SSWU: a - hexdump(len=32): ff ff ff ff 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 00 ff ff ff ff ff ff ff ff ff ff ff fc
SSWU: x1a = b / (z * a) - hexdump(len=32): a5 28 bd 86 96 bd af 99 6c 65 b9 82 d9 49 59 d3 14 6f e6 a0 20 69 30 90 bd ba 13 13 23 75 f2 24
SSWU: x1b = (-b/a) * (1 + t) - hexdump(len=32): 1c 33 19 49 80 8e a9 72 7e 59 ab be c6 b8 a2 74 26 fd ee 14 47 9a a3 6d 0c 65 d7 a0 b1 da 7e 34
SSWU: x1 = CSEL(l, x1a, x1b) - hexdump(len=32): 1c 33 19 49 80 8e a9 72 7e 59 ab be c6 b8 a2 74 26 fd ee 14 47 9a a3 6d 0c 65 d7 a0 b1 da 7e 34
SSWU: gx1 = x1^3 + a * x1 + b - hexdump(len=32): 17 1d 79 8a 5c 7c 50 e7 a1 b2 f2 6a 05 e8 cd 00 03 5f 9f 9b 5b 3f 11 e2 29 ca 13 f4 f5 a9 86 4d
SSWU: x2 = z * u^2 * x1 - hexdump(len=32): a0 59 fb ee b8 3f 81 7e 36 16 c3 0f 69 f6 ca 1b 28 44 7e 3c 91 ff 59 50 05 9e 94 98 31 0a 80 e8
SSWU: gx2 = x2^3 + a * x2 + b - hexdump(len=32): 96 1b 6c 9c a5 43 56 ba a5 d3 bf 90 00 a2 28 46 3a db bc 1d 89 45 ea 3b 2c e8 52 ae b1 dc 0f 5e
SSWU: gx1^((p-1)/2) modulo p: X - hexdump(len=1): 01
SSWU: v = CSEL(l, gx1, gx2) - hexdump(len=32): 17 1d 79 8a 5c 7c 50 e7 a1 b2 f2 6a 05 e8 cd 00 03 5f 9f 9b 5b 3f 11 e2 29 ca 13 f4 f5 a9 86 4d
SSWU: x = CSEL(l, x1, x2) - hexdump(len=32): 1c 33 19 49 80 8e a9 72 7e 59 ab be c6 b8 a2 74 26 fd ee 14 47 9a a3 6d 0c 65 d7 a0 b1 da 7e 34
SSWU: y = sqrt(v) - hexdump(len=32): d7 bf 66 4a cd 51 30 26 ad fd 1f 15 8d 73 ad 11 ce 4b 49 21 0a 10 10 dd 71 e8 da 19 cf 7e df d0
SSWU: p - y - hexdump(len=32): 28 40 99 b4 32 ae cf da 52 02 e0 ea 72 8c 52 ee 31 b4 b6 df f5 ef ef 22 8e 17 25 e6 30 81 20 2f
SSWU: P.x - hexdump(len=32): 1c 33 19 49 80 8e a9 72 7e 59 ab be c6 b8 a2 74 26 fd ee 14 47 9a a3 6d 0c 65 d7 a0 b1 da 7e 34
SSWU: P.y - hexdump(len=32): d7 bf 66 4a cd 51 30 26 ad fd 1f 15 8d 73 ad 11 ce 4b 49 21 0a 10 10 dd 71 e8 da 19 cf 7e df d0
eric-8822 [ODM_software_init][15562]
clock 25MHz
[TRACE]pre_init_system_cfg_8812f ===>
[TRACE]set_hw_value_88xx ===>
[TRACE]set_hw_value_88xx <===
[TRACE]pre_init_system_cfg_8812f <===
[TRACE]mac_pwr_switch_pcie_8812f ===>
[TRACE]pwr = 1
[TRACE]8812F pwr seq ver = V02
[TRACE]mac_pwr_switch_pcie_8812f <===
InitPON OK!!!
[TRACE]init_system_cfg_8812f ===>
[TRACE]init_system_cfg_8812f <===
InitMAC Page0
[TRACE]download_firmware_88xx ===>
[TRACE]halmac h2c ver = f, fw h2c ver = e!!
[TRACE]=== FW info ===
[TRACE]ver : 3
[TRACE]sub-ver : 6
[TRACE]sub-idx : 0
[TRACE]build : 2020/0/24 14:39
[TRACE]Dlfw OK, enable CPU
[TRACE]0x80=0xC078, cnt=4977
[TRACE]download_firmware_88xx <===
>>SetBeaconDownload88XX
Init Download FW OK
[TRACE]cfg_la_mode_88xx ===>
[TRACE]cfg_la_mode_88xx <===
[TRACE]init_mac_cfg_88xx ===>
[TRACE]init_trx_cfg_8812f ===>
[TRACE]rqpn_parser_88xx done
[TRACE]pg_num_parser_88xx done
[TRACE]Set FIFO page
[TRACE]h2c fs : 1024
[TRACE]init_trx_cfg_8812f <===
[TRACE]init_protocol_cfg_8812f ===>
[TRACE]init_protocol_cfg_8812f <===
[TRACE]init_edca_cfg_8812f ===>
[TRACE]init_edca_cfg_8812f <===
[TRACE]init_wmac_cfg_8812f ===>
[TRACE]init_low_pwr_8812f ===>
[TRACE]init_low_pwr_8812f <===
[TRACE]init_wmac_cfg_8812f <===
[TRACE]init_mac_cfg_88xx <===
halmac_init_mac_cfg OK
halmac_cfg_rx_aggregation OK
[TRACE]cfg_mac_addr_88xx ===>
[TRACE]cfg_mac_addr_88xx <===
halmac_init_mac_cfg OK
[TRACE]cfg_drv_info_8812f ===>
[TRACE]drv info = 1
[TRACE]set_hw_value_8812f ===>
[TRACE]set_hw_value_88xx ===>
[TRACE]cfg_rx_ignore_8812f ===>
[TRACE]cfg_rx_ignore_8812f <===
[TRACE]set_hw_value_8812f <===
[TRACE]cfg_drv_info_8812f <===
[GetHwReg88XX][size PHY_REG_PG_8812Fmp_Type0]
[GetHwReg88XX][PHY_REG_PG_8812Fmp_Type0]
>>manual_dfs_regdomain:1
>>dfs VERSION_8812f~
start_addr=(0x20000), end_addr=(0x40000), buffer_size=(0x20000), smp_number_max=(16384)
[set_8812F_trx_regs] +++
[Beamforming_Init] phydm_txbf_rfmode(1)
br0: port 5(wlan0) entered forwarding state
br0: port 5(wlan0) entered forwarding state
IPv6: ADDRCONF(NETDEV_CHANGE): br0: link becomes ready
CMD: /bin/iwpriv wlan0 set_reg_pg all=0
CCK(dBm): 0,0,0,0,0,
OFDM(dBm): 21,21,21,21,21,21,21,20,
HT MCS 1SS(dBm): 21,21,21,21,21,21,20,19,
HT MCS 2SS(dBm): 21,21,21,21,21,21,20,19,
VHT MCS 1SS(dBm): 20,20,20,20,20,20,20,19,18,17,
VHT MCS 2SS(dBm): 20,20,20,20,20,20,20,19,18,17,
CMD: /bin/iwpriv wlan0-vap0 set_mib ssid=EasyMeshBH-jKFRHLtgv
CMD: /bin/iwpriv wlan0-vap0 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan0-vap0 set_mib fragthres=2346
4 cpu
CMD: /bin/iwpriv wlan0-vap0 set_mib dtimperiod=1
CMD: /bin/iwpriv wlan0-vap0 set_mib aclnum=0
CMD: /bin/iwpriv wlan0-vap0 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan0-vap0 set_mib authtype=2
CMD: /bin/iwpriv wlan0-vap0 set_mib band=76
CMD: /bin/iwpriv wlan0-vap0 set_mib autorate=1
CMD: /bin/iwpriv wlan0-vap0 set_mib hiddenAP=1
CMD: /bin/iwpriv wlan0-vap0 set_mib qos_enable=1
4 cpu
CMD: /bin/iwpriv wlan0-vap0 set_mib block_relay=0
CMD: /bin/iwpriv wlan0-vap0 set_mib deny_legacy=12
CMD: /bin/iwpriv wlan0-vap0 set_mib wpa_cipher=0
CMD: /bin/iwpriv wlan0-vap0 set_mib wpa2_cipher=8
CMD: /bin/iwpriv wlan0-vap0 set_mib psk_enable=10
CMD: /bin/iwpriv wlan0-vap0 set_mib passphrase=Qf#Q*NhcgrzKE@_7Qz3QRRf*wLe##2
CMD: /bin/iwpriv wlan0-vap0 set_mib gk_rekey=86400
CMD: /bin/iwpriv wlan0-vap0 set_mib dot11IEEE80211W=1
CMD: /bin/iwpriv wlan0-vap0 set_mib enableSHA256=1
CMD: /bin/iwpriv wlan0-vap0 set_mib encmode=2
CMD: /bin/iwpriv wlan0-vap0 set_mib rm_activated=1
CMD: /bin/iwpriv wlan0-vap0 set_mib rm_link_measure=1
CMD: /bin/iwpriv wlan0-vap0 set_mib rm_beacon_passive=1
CMD: /bin/iwpriv wlan0-vap0 set_mib rm_beacon_active=1
CMD: /bin/iwpriv wlan0-vap0 set_mib rm_beacon_table=1
CMD: /bin/iwpriv wlan0-vap0 set_mib rm_neighbor_report=1
CMD: /bin/iwpriv wlan0-vap0 set_mib rm_ap_channel_report=1
CMD: /bin/iwpriv wlan0-vap0 set_mib Is11kDaemonOn=1
CMD: /bin/iwpriv wlan0-vap0 set_mib BssTransEnable=1
CMD: /bin/iwpriv wlan0-vap0 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan0-vap0 set_mib a4_enable=0
CMD: /bin/iwpriv wlan0-vap0 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan0-vap0 set_mib 802_1x=1
CMD: /bin/iwpriv wlan0-vap0 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan0-vap0 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan0-vap0 set_mib disable_protection=1
CMD: /bin/iwpriv wlan0-vap0 set_mib use40M=1
CMD: /bin/iwpriv wlan0-vap0 set_mib 2ndchoffset=1
!!! adjust 5G 2ndoffset for 8812 !!!
CMD: /bin/iwpriv wlan0-vap0 set_mib 2ndchoffset=2
CMD: /bin/iwpriv wlan0-vap0 set_mib coexist=0
CMD: /bin/iwpriv wlan0-vap0 set_mib shortGI20M=0
CMD: /bin/iwpriv wlan0-vap0 set_mib shortGI40M=0
CMD: /bin/iwpriv wlan0-vap0 set_mib shortGI80M=0
CMD: /bin/iwpriv wlan0-vap0 set_mib ampdu=1
CMD: /bin/iwpriv wlan0-vap0 set_mib amsdu=2
CMD: /bin/iwpriv wlan0 set_mib disable_DFS=0
CMD: /bin/iwpriv wlan0-vap0 set_mib gbwcmode=0
CMD: /bin/iwpriv wlan0-vap0 set_mib gbwcthrd_tx=0
CMD: /bin/iwpriv wlan0-vap0 set_mib gbwcthrd_rx=0
CMD: /bin/iwpriv wlan0-vap1 set_mib ssid=SSID-2-5G
CMD: /bin/iwpriv wlan0-vap1 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan0-vap1 set_mib fragthres=2346
CMD: /bin/iwpriv wlan0-vap1 set_mib dtimperiod=1
CMD: /bin/iwpriv wlan0-vap1 set_mib aclnum=0
CMD: /bin/iwpriv wlan0-vap1 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan0-vap1 set_mib authtype=2
CMD: /bin/iwpriv wlan0-vap1 set_mib band=76
CMD: /bin/iwpriv wlan0-vap1 set_mib autorate=1
CMD: /bin/iwpriv wlan0-vap1 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan0-vap1 set_mib qos_enable=1
CMD: /bin/iwpriv wlan0-vap1 set_mib block_relay=0
CMD: /bin/iwpriv wlan0-vap1 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan0-vap1 set_mib psk_enable=0
CMD: /bin/iwpriv wlan0-vap1 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan0-vap1 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan0-vap1 set_mib encmode=0
CMD: /bin/iwpriv wlan0-vap1 set_mib rm_activated=1
CMD: /bin/iwpriv wlan0-vap1 set_mib rm_link_measure=1
CMD: /bin/iwpriv wlan0-vap1 set_mib rm_beacon_passive=1
CMD: /bin/iwpriv wlan0-vap1 set_mib rm_beacon_active=1
CMD: /bin/iwpriv wlan0-vap1 set_mib rm_beacon_table=1
CMD: /bin/iwpriv wlan0-vap1 set_mib rm_neighbor_report=1
CMD: /bin/iwpriv wlan0-vap1 set_mib rm_ap_channel_report=1
CMD: /bin/iwpriv wlan0-vap1 set_mib Is11kDaemonOn=1
CMD: /bin/iwpriv wlan0-vap1 set_mib BssTransEnable=1
CMD: /bin/iwpriv wlan0-vap1 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan0-vap1 set_mib a4_enable=0
CMD: /bin/iwpriv wlan0-vap1 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan0-vap1 set_mib 802_1x=0
CMD: /bin/iwpriv wlan0-vap1 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan0-vap1 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan0-vap1 set_mib disable_protection=1
CMD: /bin/iwpriv wlan0-vap1 set_mib use40M=1
CMD: /bin/iwpriv wlan0-vap1 set_mib 2ndchoffset=1
!!! adjust 5G 2ndoffset for 8812 !!!
CMD: /bin/iwpriv wlan0-vap1 set_mib 2ndchoffset=2
CMD: /bin/iwpriv wlan0-vap1 set_mib coexist=0
CMD: /bin/iwpriv wlan0-vap1 set_mib shortGI20M=0
CMD: /bin/iwpriv wlan0-vap1 set_mib shortGI40M=0
CMD: /bin/iwpriv wlan0-vap1 set_mib shortGI80M=0
CMD: /bin/iwpriv wlan0-vap1 set_mib ampdu=1
CMD: /bin/iwpriv wlan0-vap1 set_mib amsdu=2
CMD: /bin/iwpriv wlan0 set_mib disable_DFS=0
CMD: /bin/iwpriv wlan0-vap1 set_mib gbwcmode=0
CMD: /bin/iwpriv wlan0-vap1 set_mib gbwcthrd_tx=0
CMD: /bin/iwpriv wlan0-vap1 set_mib gbwcthrd_rx=0
CMD: /bin/iwpriv wlan0-vap2 set_mib ssid=SSID-3-5G
CMD: /bin/iwpriv wlan0-vap2 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan0-vap2 set_mib fragthres=2346
CMD: /bin/iwpriv wlan0-vap2 set_mib dtimperiod=1
CMD: /bin/iwpriv wlan0-vap2 set_mib aclnum=0
CMD: /bin/iwpriv wlan0-vap2 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan0-vap2 set_mib authtype=2
CMD: /bin/iwpriv wlan0-vap2 set_mib band=76
CMD: /bin/iwpriv wlan0-vap2 set_mib autorate=1
CMD: /bin/iwpriv wlan0-vap2 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan0-vap2 set_mib qos_enable=1
CMD: /bin/iwpriv wlan0-vap2 set_mib block_relay=0
CMD: /bin/iwpriv wlan0-vap2 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan0-vap2 set_mib psk_enable=0
CMD: /bin/iwpriv wlan0-vap2 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan0-vap2 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan0-vap2 set_mib encmode=0
CMD: /bin/iwpriv wlan0-vap2 set_mib rm_activated=1
CMD: /bin/iwpriv wlan0-vap2 set_mib rm_link_measure=1
CMD: /bin/iwpriv wlan0-vap2 set_mib rm_beacon_passive=1
CMD: /bin/iwpriv wlan0-vap2 set_mib rm_beacon_active=1
CMD: /bin/iwpriv wlan0-vap2 set_mib rm_beacon_table=1
CMD: /bin/iwpriv wlan0-vap2 set_mib rm_neighbor_report=1
CMD: /bin/iwpriv wlan0-vap2 set_mib rm_ap_channel_report=1
CMD: /bin/iwpriv wlan0-vap2 set_mib Is11kDaemonOn=1
CMD: /bin/iwpriv wlan0-vap2 set_mib BssTransEnable=1
CMD: /bin/iwpriv wlan0-vap2 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan0-vap2 set_mib a4_enable=0
CMD: /bin/iwpriv wlan0-vap2 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan0-vap2 set_mib 802_1x=0
CMD: /bin/iwpriv wlan0-vap2 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan0-vap2 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan0-vap2 set_mib disable_protection=1
CMD: /bin/iwpriv wlan0-vap2 set_mib use40M=1
CMD: /bin/iwpriv wlan0-vap2 set_mib 2ndchoffset=1
!!! adjust 5G 2ndoffset for 8812 !!!
CMD: /bin/iwpriv wlan0-vap2 set_mib 2ndchoffset=2
CMD: /bin/iwpriv wlan0-vap2 set_mib coexist=0
CMD: /bin/iwpriv wlan0-vap2 set_mib shortGI20M=0
CMD: /bin/iwpriv wlan0-vap2 set_mib shortGI40M=0
CMD: /bin/iwpriv wlan0-vap2 set_mib shortGI80M=0
CMD: /bin/iwpriv wlan0-vap2 set_mib ampdu=1
CMD: /bin/iwpriv wlan0-vap2 set_mib amsdu=2
CMD: /bin/iwpriv wlan0 set_mib disable_DFS=0
CMD: /bin/iwpriv wlan0-vap2 set_mib gbwcmode=0
CMD: /bin/iwpriv wlan0-vap2 set_mib gbwcthrd_tx=0
CMD: /bin/iwpriv wlan0-vap2 set_mib gbwcthrd_rx=0
CMD: /bin/iwpriv wlan0-vap3 set_mib ssid=SSID-4-5G
CMD: /bin/iwpriv wlan0-vap3 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan0-vap3 set_mib fragthres=2346
CMD: /bin/iwpriv wlan0-vap3 set_mib dtimperiod=1
CMD: /bin/iwpriv wlan0-vap3 set_mib aclnum=0
CMD: /bin/iwpriv wlan0-vap3 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan0-vap3 set_mib authtype=2
CMD: /bin/iwpriv wlan0-vap3 set_mib band=76
CMD: /bin/iwpriv wlan0-vap3 set_mib autorate=1
CMD: /bin/iwpriv wlan0-vap3 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan0-vap3 set_mib qos_enable=1
CMD: /bin/iwpriv wlan0-vap3 set_mib block_relay=0
CMD: /bin/iwpriv wlan0-vap3 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan0-vap3 set_mib psk_enable=0
CMD: /bin/iwpriv wlan0-vap3 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan0-vap3 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan0-vap3 set_mib encmode=0
CMD: /bin/iwpriv wlan0-vap3 set_mib rm_activated=1
CMD: /bin/iwpriv wlan0-vap3 set_mib rm_link_measure=1
CMD: /bin/iwpriv wlan0-vap3 set_mib rm_beacon_passive=1
CMD: /bin/iwpriv wlan0-vap3 set_mib rm_beacon_active=1
CMD: /bin/iwpriv wlan0-vap3 set_mib rm_beacon_table=1
CMD: /bin/iwpriv wlan0-vap3 set_mib rm_neighbor_report=1
CMD: /bin/iwpriv wlan0-vap3 set_mib rm_ap_channel_report=1
CMD: /bin/iwpriv wlan0-vap3 set_mib Is11kDaemonOn=1
CMD: /bin/iwpriv wlan0-vap3 set_mib BssTransEnable=1
CMD: /bin/iwpriv wlan0-vap3 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan0-vap3 set_mib a4_enable=0
CMD: /bin/iwpriv wlan0-vap3 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan0-vap3 br0: port 5(wlan0) entered forwarding state
set_mib 802_1x=0
CMD: /bin/iwpriv wlan0-vap3 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan0-vap3 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan0-vap3 set_mib disable_protection=1
CMD: /bin/iwpriv wlan0-vap3 set_mib use40M=1
CMD: /bin/iwpriv wlan0-vap3 set_mib 2ndchoffset=1
!!! adjust 5G 2ndoffset for 8812 !!!
CMD: /bin/iwpriv wlan0-vap3 set_mib 2ndchoffset=2
CMD: /bin/iwpriv wlan0-vap3 set_mib coexist=0
CMD: /bin/iwpriv wlan0-vap3 set_mib shortGI20M=0
CMD: /bin/iwpriv wlan0-vap3 set_mib shortGI40M=0
CMD: /bin/iwpriv wlan0-vap3 set_mib shortGI80M=0
CMD: /bin/iwpriv wlan0-vap3 set_mib ampdu=1
CMD: /bin/iwpriv wlan0-vap3 set_mib amsdu=2
CMD: /bin/iwpriv wlan0 set_mib disable_DFS=0
CMD: /bin/iwpriv wlan0-vap3 set_mib gbwcmode=0
CMD: /bin/iwpriv wlan0-vap3 set_mib gbwcthrd_tx=0
CMD: /bin/iwpriv wlan0-vap3 set_mib gbwcthrd_rx=0
CMD: /bin/iwpriv wlan1 set_mib mp_specific=0
CMD: /bin/iwpriv wlan1 set_mib regdomain=1
CMD: /bin/iwpriv wlan1 set_mib led_type=7
CMD: /bin/iwpriv wlan1 set_mib ssid=totally hidden ssid
CMD: /bin/iwpriv wlan1 set_mib opmode=8
CMD: /bin/iwpriv wlan1 set_mib phyBandSelect=1
CMD: /bin/iwpriv wlan1 set_mib pwrlevelCCK_A=2626262626262626262626262626
CMD: /bin/iwpriv wlan1 set_mib pwrlevelCCK_B=2929292929292929292929292929
CMD: /bin/iwpriv wlan1 set_mib pwrlevel_TSSICCK_A=0000000000000000000000000000
CMD: /bin/iwpriv wlan1 set_mib pwrlevel_TSSICCK_B=0000000000000000000000000000
CMD: /bin/iwpriv wlan1 set_mib pwrlevelHT40_1S_A=2626262625252525252525252525
CMD: /bin/iwpriv wlan1 set_mib pwrlevelHT40_1S_B=2828282828282828282828282828
CMD: /bin/iwpriv wlan1 set_mib pwrlevel_TSSIHT40_1S_A=0000000000000000000000000000
CMD: /bin/iwpriv wlan1 set_mib pwrlevel_TSSIHT40_1S_B=0000000000000000000000000000
CMD: /bin/iwpriv wlan1 set_mib pwrdiffHT40_2S=0000000000000000000000000001
CMD: /bin/iwpriv wlan1 set_mib pwrdiffHT20=1111111111111111111111111111
CMD: /bin/iwpriv wlan1 set_mib pwrdiffOFDM=3333333333333333333333333333
CMD: /bin/iwpriv wlan1 set_mib tssi_enable=0
CMD: /bin/iwpriv wlan1 set_mib ther=43
CMD: /bin/iwpriv wlan1 set_mib thermal1=43
CMD: /bin/iwpriv wlan1 set_mib xcap=1
CMD: /bin/iwpriv wlan1 set_mib countrycode=1
CMD: /bin/iwpriv wlan1 set_mib countrystr=US
CMD: /bin/iwpriv wlan1 set_mib bDPPathAOK=0
CMD: /bin/iwpriv wlan1 set_mib bDPPathBOK=0
Warning!!Not support DPK!!
CMD: /bin/iwpriv wlan1 set_mib bcnint=100
CMD: /bin/iwpriv wlan1 set_mib channel=1
CMD: /bin/iwpriv wlan1 set_mib autoch_timeout=0
CMD: /bin/iwpriv wlan1 set_mib autoch_diff_pkt=0
CMD: /bin/iwpriv wlan1 set_mib autoch_1611_enable=0
CMD: /bin/iwpriv wlan1 set_mib basicrates=15
CMD: /bin/iwpriv wlan1 set_mib oprates=4095
CMD: /bin/iwpriv wlan1 set_mib autorate=1
CMD: /bin/iwpriv wlan1 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan1 set_mib fragthres=2346
CMD: /bin/iwpriv wlan1 set_mib dtimperiod=1
CMD: /bin/iwpriv wlan1 set_mib expired_time=30000
CMdevice wlan1 entered promiscuous mode
D: /bin/iwpriv wlan1 set_mib preamble=0
CMD: /bin/iwpriv wlan1 set_mib hiddenAP=0
CMD: /bin/iwpriv wlachip_version=0x100c,WlanSupportAbility = 0x7
n1 set_mib txbf=1
CMD: /bin/iwpriv wlan1 set_mib txbf_mu=1
CMD: /bin/iwpriv wlan1 set_mib mc2u_disable=0
CMD: /bin/iwpriv wlan1 set_mib aclnum=0
CMD: /bin/iwpriv wlan1 set_mib aclmode=0
CMD: /bin/iwpriv wlan1 set_mib stactrl_enable=0
CMD: /bin/iwpriv wlan1 set_mib stactrl_prefer_band=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan1 set_mib wsc_enable=0
CMD: /bin/iwpriv wlan1 set_mib authtype=2
CMD: /bin/iwpriv wlan1 set_mib wpa_cipher=0
CMD: /bin/iwpriv wlan1 set_mib wpa2_cipher=8
CMD: /bin/iwpriv wlan1 set_mib psk_enable=2
CMD: /bin/iwpriv wlan1 set_mib passphrase=wifipassword
CMD: /bin/iwpriv wlan1 set_mib gk_rekey=86400
CMD: /bin/iwpriv wlan1 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan1 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan1 set_mib encmode=2
CMD: /bin/iwpriv wlan1 set_mib rm_activated=1
CMD: /bin/iwpriv wlan1 set_mib rm_link_measure=1
CMD: /bin/iwpriv wlan1 set_mib rm_beacon_passive=1
CMD: /bin/iwpriv wlan1 set_mib rm_beacon_active=1
CMD: /bin/iwpriv wlan1 set_mib rm_beacon_table=1
CMD: /bin/iwpriv wlan1 set_mib rm_neighbor_report=1
CMD: /bin/iwpriv wlan1 set_mib rm_ap_channel_report=1
CMD: /bin/iwpriv wlan1 set_mib Is11kDaemonOn=1
CMD: /bin/dot11k_deamon -i wlan1
CMD: /bin/iwpriv wlan1 set_mib BssTransEnable=1
CMD: /bin/iwpriv wlan1 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan1 set_mib a4_enable=0
CMD: /bin/iwpriv wlan1 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan1 set_mib 802_1x=1
CMD: /bin/iwpriv wlan1 set_mib band=11
CMD: /bin/iwpriv wlan1 set_mib deny_legacy=3
CMD: /bin/iwpriv wlan1 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan1 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan1 set_mib cts2self=1
CMD: /bin/iwpriv wlan1 set_mib disable_protection=1
CMD: /bin/iwpriv wlan1 set_mib block_relay=0
CMD: /bin/iwpriv wlan1 set_mib qos_enable=1
CMD: /bin/iwpriv wlan1 set_mib apsd_enable=0
CMD: /bin/iwpriv wlan1 set_mib use40M=0
CMD: /bin/iwpriv wlan1 set_mib 2ndchoffset=0
CMD: /bin/iwpriv wlan1 set_mib coexist=0
CMD: /bin/iwpriv wlan1 set_mib shortGI20M=0
CMD: /bin/iwpriv wlan1 set_mib shortGI40M=0
CMD: /bin/iwpriv wlan1 set_mib shortG[wlan1] SAE INIT...
I80M=0
CMD:SAE: pwd-seed - hexdump(len=32): /bin/iwpriv wla c4 65 0a c9 88 e8 a2 8b aa 2a b8 20 0d b2 60 ef 0b 5c 4e 85 f2 2f 74 e3 fc 18 27 51 8d 64 2e aa
n1 set_mib ampduSAE: pwd-value (u1 P1) - hexdump(len=48):=1
CMD: /bi 29 a3 03 85 ce 2a df 8f 0d 71 3f 6e 07 0c 30 93 3f e3 92 a5 a4 bd d1 7c 4b 9f a1 c4 57 cf b9 16 be 01 4b e5 01 37 d5 4c f6 22 e6 53 81 88 8b 28
n/iwpriv wlan1 sSAE: u1 - hexdump(len=32):et_mib amsdu=0
4f 21 e0 23 90 40 61 7b 53 d1 be af 7c 33 9a 19 fc c9 e2 ef f9 05 b8 61 d1 bf 05 50 6c 62 f7 a3
CMD: /bin/iwSSWU: m - hexdump(len=32):priv wlan1 set_m f3 26 cc 9d c1 1b 39 4b c9 7a 4b 28 c0 86 e2 6f 24 1c 78 5b 89 99 7a 15 71 3a 2e 06 6b fe 54 61
ib stbc=1
CMD: /bin/iwpriv SSWU: t - hexdump(len=32):wlan1 set_mib ld 4a 7d 20 d3 fa cd 84 b3 38 dd 47 9b 05 78 8d 4c 55 f5 ea 01 cd 60 f9 1c 93 83 aa 7c 38 59 44 bd
pc=1
CMD: /SSWU: a - hexdump(len=32):bin/iwpriv wlan1 ff ff ff ff 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 00 ff ff ff ff ff ff ff ff ff ff ff fc
set_mib tdls_prSSWU: x1a = b / (z * a) - hexdump(len=32):ohibited=0
a5 28 bd 86 96 bd af 99 6c 65 b9 82 d9 49 59 d3 14 6f e6 a0 20 69 30 90 bd ba 13 13 23 75 f2 24
CMD: /bin/iwprivSSWU: x1b = (-b/a) * (1 + t) - hexdump(len=32): wlan1 set_mib t 42 19 0a 82 81 1f 01 60 24 62 4c 88 15 6e ae 8a 21 f2 f4 1a e4 c4 44 cb 5a 1c 2d c0 98 0f 81 6e
dls_cs_prohibiteSSWU: x1 = CSEL(l, x1a, x1b) - hexdump(len=32):d=0
CMD: /b 42 19 0a 82 81 1f 01 60 24 62 4c 88 15 6e ae 8a 21 f2 f4 1a e4 c4 44 cb 5a 1c 2d c0 98 0f 81 6e
in/iwpriv wlan1 SSWU: gx1 = x1^3 + a * x1 + b - hexdump(len=32):set_mib gbwcmode 6f f4 e3 e1 c5 68 42 91 49 bb e2 29 fb c1 61 57 f4 1d 32 2c 48 62 66 76 81 35 92 1e 9e 1c 4e b4
=0
CMD: /biSSWU: x2 = z * u^2 * x1 - hexdump(len=32):n/iwpriv wlan1 s ef 91 62 92 ed 02 71 c2 7d cb 3e 6b d5 5f 74 28 16 41 52 b7 60 87 f7 72 95 56 16 8f e9 33 40 af
et_mib gbwcthrd_SSWU: gx2 = x2^3 + a * x2 + b - hexdump(len=32):tx=0
CMD: / 11 a2 6a 99 d3 82 a2 19 1a 94 d7 6c df e9 7c 69 79 af 32 c1 ae cf 90 e4 04 9a 29 6e 3b ec 48 d6
bin/iwpriv wlan1 set_mib gbwcthrSSWU: gx1^((p-1)/2) modulo p: X - hexdump(len=1):d_rx=0
CMD: 01
/bin/brctl addiSSWU: v = CSEL(l, gx1, gx2) - hexdump(len=32):f br0 wlan1
6f f4 e3 e1 c5 68 42 91 49 bb e2 29 fb c1 61 57 f4 1d 32 2c 48 62 66 76 81 35 92 1e 9e 1c 4e b4
CMD: /bin/iwpriSSWU: x = CSEL(l, x1, x2) - hexdump(len=32):v wlan1 set_mib 42 19 0a 82 81 1f 01 60 24 62 4c 88 15 6e ae 8a 21 f2 f4 1a e4 c4 44 cb 5a 1c 2d c0 98 0f 81 6e
func_off=0
SSWU: y = sqrt(v) - hexdump(len=32):CMD: /bin/ifconf 88 27 bc d6 78 c7 c4 0f 32 49 98 28 af 7d a4 8d 10 65 a0 2d a2 c2 4e dd 95 5f b0 fe 7f bb ae 7d
ig wlan1 up
SSWU: p - y - hexdump(len=32): 77 d8 43 28 87 38 3b f1 cd b6 67 d7 50 82 5b 72 ef 9a 5f d3 5d 3d b1 22 6a a0 4f 01 80 44 51 82
SSWU: P.x - hexdump(len=32): 42 19 0a 82 81 1f 01 60 24 62 4c 88 15 6e ae 8a 21 f2 f4 1a e4 c4 44 cb 5a 1c 2d c0 98 0f 81 6e
SSWU: P.y - hexdump(len=32): 88 27 bc d6 78 c7 c4 0f 32 49 98 28 af 7d a4 8d 10 65 a0 2d a2 c2 4e dd 95 5f b0 fe 7f bb ae 7d
SAE: pwd-value (u2 P2) - hexdump(len=48): e2 21 54 46 0e 6e 0a 5c 0a cb d7 c3 b2 c5 61 94 63 91 cb bd e6 90 84 b1 23 3b 88 ac ff a9 d0 56 e4 af 79 d9 fe 22 05 c0 a9 aa 7e 1f b2 b0 f8 70
SAE: u2 - hexdump(len=32): 25 c7 ce af 28 ff 4b 59 32 ac 2a 0a e6 6f ee 38 eb 60 e9 0f ee b1 64 62 c2 e4 60 3e 8e 20 dd 81
SSWU: m - hexdump(len=32): 58 58 c8 dd 57 25 0b 0a aa 26 49 9a b5 df 78 58 1c 8e 45 b7 59 69 6d 47 06 e6 e6 99 54 31 b6 d7
SSWU: t - hexdump(len=32): 15 60 32 9d 0b e0 bc 62 2b 0d 3a b2 c7 6b d5 a4 4b 77 ee 33 0d 00 ba ae c5 ee ed 6a 2d e1 c9 33
SSWU: a - hexdump(len=32): ff ff ff ff 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 00 ff ff ff ff ff ff ff ff ff ff ff fc
SSWU: x1a = b / (z * a) - hexdump(len=32): a5 28 bd 86 96 bd af 99 6c 65 b9 82 d9 49 59 d3 14 6f e6 a0 20 69 30 90 bd ba 13 13 23 75 f2 24
SSWU: x1b = (-b/a) * (1 + t) - hexdump(len=32): a7 0d 66 99 83 cd 76 47 1d f0 c1 ec 83 51 b1 3d 8a 66 2b 97 52 e7 82 20 4c 9a 02 33 3d f7 fb 8f
SSWU: x1 = CSEL(l, x1a, x1b) - hexdump(len=32): a7 0d 66 99 83 cd 76 47 1d f0 c1 ec 83 51 b1 3d 8a 66 2b 97 52 e7 82 20 4c 9a 02 33 3d f7 fb 8f
SSWU: gx1 = x1^3 + a * x1 + b - hexdump(len=32): 9d 91 9d 5f 8d 41 25 a0 ee 63 2c 2d 21 de 84 71 7b bd b9 f7 75 1e e4 80 36 d6 15 63 78 08 52 1a
SSWU: x2 = z * u^2 * x1 - hexdump(len=32): 5c d9 f3 79 04 bd 72 4c 6a d8 47 db 97 cd 7c d8 af 50 1f ab 95 d3 85 7e 0d 1f dd 45 bd 5c ed 98
SSWU: gx2 = x2^3 + a * x2 + b - hexdump(len=32): 21 4c 86 12 8c b2 3c b6 d7 15 c2 e7 bb 92 01 3a 5d 06 8d 28 27 c7 8e bd a3 b4 cd 0b b9 25 f0 b3
SSWU: gx1^((p-1)/2) modulo p: X - hexdump(len=1): 01
SSWU: v = CSEL(l, gx1, gx2) - hexdump(len=32): 9d 91 9d 5f 8d 41 25 a0 ee 63 2c 2d 21 de 84 71 7b bd b9 f7 75 1e e4 80 36 d6 15 63 78 08 52 1a
SSWU: x = CSEL(l, x1, x2) - hexdump(len=32): a7 0d 66 99 83 cd 76 47 1d f0 c1 ec 83 51 b1 3d 8a 66 2b 97 52 e7 82 20 4c 9a 02 33 3d f7 fb 8f
SSWU: y = sqrt(v) - hexdump(len=32): 68 3e 4e 98 68 e6 f4 e2 1e f1 2c 53 a3 24 2f 9c 65 6d b8 d6 6c b5 f0 f4 82 c1 4f 89 83 81 ec 0d
SSWU: p - y - hexdump(len=32): 97 c1 b1 66 97 19 0b 1e e1 0e d3 ac 5c db d0 63 9a 92 47 2a 93 4a 0f 0b 7d 3e b0 76 7c 7e 13 f2
SSWU: P.x - hexdump(len=32): a7 0d 66 99 83 cd 76 47 1d f0 c1 ec 83 51 b1 3d 8a 66 2b 97 52 e7 82 20 4c 9a 02 33 3d f7 fb 8f
SSWU: P.y - hexdump(len=32): 68 3e 4e 98 68 e6 f4 e2 1e f1 2c 53 a3 24 2f 9c 65 6d b8 d6 6c b5 f0 f4 82 c1 4f 89 83 81 ec 0d
eric-8822 [ODM_software_init][15562]
clock 25MHz
[PHY_REG_PG_8192Fmp]
start_addr=(0x2000), end_addr=(0x10000), buffer_size=(0xe000), smp_number_max=(7168)
br0: port 6(wlan1) entered forwarding state
br0: port 6(wlan1) entered forwarding state
br0: port 6(wlan1) entered disabled state
====> wlan_valid_interface:wlan1-vap3 wlan0-vap3 wlan0-vxd wlan1-vap2 wlan1 pwlan0 wlan1-vxd wlan0-vap2 wlan1-vap1 wlan0 wlan0-vap1 wlan1-vap0 wlan0-vap0
Total WPA/WPA2 number is 0
Multi_AP_Service is starting, profile number is : 2
4 cpu
CMD: /bin/ebtables -N wlan_map_block -P RETURN
CMD: /bin/ebtables -D FORWARD -j wlan_map_block
Sorry, rule does not exist.
CMD: /bin/ebtables -I FORWARD -j wlan_map_block
CMD: /bin/ebtables -N map_portmapping -P RETURN
CMD: /bin/ebtables -D FORWARD -j map_portmapping
Sorry, rule does not exist.
CMD: /bin/ebtables -A FORWARD -j map_portmapping
CMD: /bin/ebtables -F wlan_map_block
CMD: /bin/iptables -F tr069
CMD: /bin/ip6tables -F ipv6_tr069
CMD: /bin/cwmpClient
sh: can't create /proc/br_igmpsnoop: nonexistent directory
sh: can't create /proc/br_igmpquery: nonexistent directory
sh: can't create /proc/br_mldsnoop: nonexistent directory
sh: can't create /proc/br_mldquery: nonexistent directory
IGMP Snooping: enabled
MLD Snooping: enabled
CMD: /bin/ebtables -D br_lan_forward -p IPv4 --ip-proto igmp -j BR_IGMP_MLD_DROP
CMD: /bin/ebtables -D br_lan_forward -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 143:143/0:255 -j BR_IGMP_MLD_DROP
CMD: /bin/ebtables -D br_lan_forward -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 130:132/0:255 -j BR_IGMP_MLD_DROP
CMD: /bin/ebtables -F BR_IGMP_MLD_DROP
CMD: /bin/ebtables -X BR_IGMP_MLD_DROP
CMD: /bin/ebtables -N BR_IGMP_MLD_DROP
CMD: /bin/ebtables -P BR_IGMP_MLD_DROP RETURN
CMD: /bin/ebtables -A BR_IGMP_MLD_DROP -i eth+ -o eth+ -j DROP
CMD: /bin/ebtables -A BR_IGMP_MLD_DROP -i eth+ -o wlan+ -j DROP
CMD: /bin/ebtables -A BR_IGMP_MLD_DROP -i wlan+ -o eth+ -j DROP
CMD: /bin/ebtables -A BR_IGMP_MLD_DROP -i wlan+ -o wlan+ -j DROP
CMD: /bin/ebtables -A br_lan_forward -p IPv4 --ip-proto igmp -j BR_IGMP_MLD_DROP
CMD: /bin/ebtables -A br_lan_forward -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 143:143/0:255 -j BR_IGMP_MLD_DROP
CMD: /bin/ebtables -A br_lan_forward -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 130:132/0:255 -j BR_IGMP_MLD_DROP
CMD: /bin/ebtables -D INPUT -j portmapping_input
Illegal target name 'portmapping_input'.
CMD: /bin/ebtables -F portmapping_input
Chain 'portmapping_input' doesn't exist.
CMD: /bin/ebtables -X portmapping_input
cwmp_flag=70
<main.c>Set No Debug Message!
<cwmp_utility.c>Set No Debug Message[1]
<main.c>Set Delay!
<cwmp_utility.c>Set Delay[7]
<main.c>Set DisConReqAuth!
<cwmp_utility.c>Set DisConReqAuth[1]
<cwmp_utility.c>Set gPrintSoap[0]
<cwmp_utility.c>Set gsupportPOST[0]
<cwmp_utility.c>Set gRandomInform[0]
<cwmp_utility.c>Set gLibUseIpv6[1]
<cwmp_utility.c>Set gEnableTimeZone[1]
[update_monitor_list_file:23673] process_name = cwmpClient, action = 1
<main.c,189>[cwmp]begin handle signal thread
<cwmp_solarInit:24>INFO: Prepare to init maserati listener.
<cwmp_solarListener:46>INFO: Start maserati event listener thread.
enter cwmp_main!
Chain 'portmapping_input' doesn't exist.
CMD: /bin/ebtables -D OUTPUT -j portmapping_output
Illegal target name 'portmapping_output'.
CMD: /bin/ebtables -F portmapping_output
Chain 'portmapping_output' doesn't exist.
CMD: /bin/ebtables -X portmapping_output
Start cwmp_main() !
========== CWMP library ==========
91ebde00
Tue Apr 26 17:04:04 2022 +0800
Merge [tr069]move mib operation outside of libcwmp. into release/usdk_v2_2_0/cwmp-tr069
Build time: 20220511_04:21:07
==================================
<port_update_CWMP_diagnose_status:5022> diagnose_type = 1, status_code = 0
Chain 'portmapping_output' doesn't exist.
CMD: /bin/ebtables -F portmapping_service
Chain 'portmapping_service' doesn't exist.
CMD: /bin/ebtables -X portmapping_service
Chain 'portmapping_service' doesn't exist.
CMD: /bin/ebtables -D FORWARD -j portmapping
Illegal target name 'portmapping'.
CMD: /bin/ebtables -F portmapping
Chain 'portmapping' doesn't exist.
CMD: /bin/ebtables -X portmapping
Chain 'portmapping' doesn't exist.
CMD: /bin/ebtables -t broute -D BROUTING -j portmapping_broute
Illegal target name 'portmapping_broute'.
CMD: /bin/ebtables -t broute -F portmapping_broute
Chain 'portmapping_broute' doesn't exist.
CMD: /bin/ebtables -t broute -X portmapping_broute
Chain 'portmapping_broute' doesn't exist.
CMD: /bin/iptables -t mangle -D FORWARD -j portmapping_rt_tbl
iptables v1.4.18: Couldn't load target `portmapping_rt_tbl':No such file or directory
Try `iptables -h' or 'iptables --help' for more information.
CMD: /bin/iptables -t mangle -F portmapping_rt_tbl
iptables: No chain/target/match by that name.
CMD: /bin/iptables -t mangle -X portmapping_rt_tbl
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -t mangle -D PREROUTING -j portmapping_rt_tbl
ip6tables v1.4.18: Couldn't load target `portmapping_rt_tbl':No such file or directory
Try `ip6tables -h' or 'ip6tables --help' for more information.
CMD: /bin/ip6tables -t mangle -F portmapping_rt_tbl
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -t mangle -X portmapping_rt_tbl
ip6tables: No chain/target/match by that name.
CMD: /bin/ebtables -N portmapping_input
CMD: /bin/ebtables -P portmapping_input RETURN
CMD: /bin/ebtables -A INPUT -j portmapping_input
CMD: /bin/ebtables -N portmapping_output
CMD: /bin/ebtables -P portmapping_output RETURN
CMD: /bin/ebtables -A OUTPUT -j portmapping_output
CMD: /bin/ebtables -N portmapping_service
CMD: /bin/ebtables -P portmapping_service RETURN
CMD: /bin/ebtables -A portmapping_service -p ipv4 --ip-proto udp --ip-dport 67:68 -j DROP
CMD: /bin/ebtables -A portmapping_service -p ipv4 --pkttype-type multicast -j DROP
CMD: /bin/ebtables -A portmapping_service -p ipv6 --ip6-proto udp --ip6-dport 546:547 -j DROP
CMD: /bin/ebtables -A portmapping_service -p ipv6 --ip6-proto ipv6-icmp --ip6-icmp-type 133:134 -j DROP
CMD: /bin/ebtables -A portmapping_service -p ipv6 --ip6-proto ! ipv6-icmp --pkttype-type multicast -j DROP
CMD: /bin/ebtables -N portmapping
CMD: /bin/ebtables -P portmapping RETURN
CMD: /bin/ebtables -A FORWARD -j portmapping
CMD: /bin/ebtables -t broute -N portmapping_broute
CMD: /bin/ebtables -t broute -P portmapping_broute RETURN
CMD: /bin/ebtables -t broute -A BROUTING -j portmapping_broute
CMD: /bin/iptables -t mangle -N portmapping_rt_tbl
CMD: /bin/iptables -t mangle -A FORWARD -j portmapping_rt_tbl
CMD: /bin/ip6tables -t mangle -N portmapping_rt_tbl
CMD: /bin/ip6tables -t mangle -A PREROUTING -j portmapping_rt_tbl
subr_qos_3.c: setupIPQ 6732
[setupLanItfMap:810] lan_itf_map.map[1].name:eth0.2.0
[setupLanItfMap:810] lan_itf_map.map[2].name:eth0.3.0
[setupLanItfMap:810] lan_itf_map.map[3].name:eth0.4.0
[setupLanItfMap:810] lan_itf_map.map[4].name:eth0.5.0
[setupLanItfMap:825] lan_itf_map.map[5]loop_eth_type=0xfffa
.name:wlan0
[setupLanItfMap:825] lan_itf_map.map[6].name:wlan1
[setupLanItfMap:825] lan_itf_map.map[7].name:wlan1-vap0
subr_qos_3.c: setupDefaultQdisc 6553
<subr_qos_3.c 6830 setupIPQ> Config QoS total upstream 2097144 Kbps downstream 1024000 Kbps
<fc_api.c 3716 rtk_fc_total_upstream_bandwidth_set> bandwidth=2097144
mib_info_id: get mib info id failed! (id=532)
CMD: /bin/iptables -t mangle -D POSTROUTING -p tcp --tcp-flags ALL ACK -m length --length 40:84 -m conntrack --ctstate ESTABLISHED -j TCP_SMALLACK_PROTECT
iptables v1.4.18: Couldn't load target `TCP_SMALLACK_PROTECT':No such file or directory
Try `iptables -h' or 'iptables --help' for more information.
CMD: /bin/iptables -t mangle -F TCP_SMALLACK_PROTECT
iptables: No chain/target/matchbr0: port 6(wlan1) entered forwarding state
by that name.
br0: port 6(wlan1) entered forwarding state
CMD: /bin/iptables -t mangle -X TCP_SMALLACK_PROTECT
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -t mangle -D POSTROUTING -p tcp --tcp-flags ALL ACK -m length --length 60:104 -m conntrack --ctstate ESTABLISHED -j TCP_SMALLACK_PROTECT
ip6tables v1.4.18: Couldn't load target `TCP_SMALLACK_PROTECT':No sucenable loopback detect
h file or directory
Try `ip6tables -h' or 'ip6tables --help' for more information.
CMD: /bin/ip6tables -t mangle -F TCP_SMALLACK_PROTECT
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -t mangle -X TCP_SMALLACK_PROTECT
ip6tables: No chain/target/match by that name.
CMD: /bin/sh -c echo 0x0 > /proc/fc/ctrl/flow_swFwded_aclTrapPri_mask
CMD: /bin/sh -c echo mode kernel > /proc/fc/ctrl/flow_delay
CMD: /bin/sh -c echo count 10 > /proc/fc/ctrl/flow_delay
mib_info_WLAN0 Dispatch mode: 1, cpu: 0
id: get mib info id failed! (id=533)
CMD: /bin/sysconf send_unix_sock_message /var/run/systemd.usock do_flow_flush 8
CMD: /bin/smbd -s /var/smb.conf --option=netbios name=Realtek --option=server string=Realtek Samba Server -D
echo "0 1 2 3" > /proc/sys/loopback_detect/lan_port_remapping
CMD: /bin/smuxctl --if eth0.2 --rx --tags 1 --rule-remove-alias eth0.2-rx-loopdetect+
CMD: /bin/smuxctl --if eth0.3 --rx --tags 1 --rule-remove-alias eth0.3-rx-loopdetect+
CMD: /bin/smuxctl --if eth0.4 --rx --tags 1 --rule-remove-alias eth0.4-rx-loopdetect+
CMD: /bin/smuxctl --if eth0.5 --rx --tags 1 --rule-remove-alias eth0.5-rx-loopdetect+
echo 0xfffa > /proc/loopback_detect_ethtype
CMD: /bin/loopback
loopback: LoopExistPeriod = 5
loopback: LoopCancelPeriod = 300
loopback: EthernetType = 0xFFFA
[stop_upnp:20258] Stop miniupnpd! (wanIf=ppp0)
CMD: /bin/upnpctrl down ppp0 br0
loopback: vid = untagged
total 1 vlan values
upnpctrl(down): MINIUPNPD did not start!
ERROR: error to file open /var/spohub 1-0:1.0: USB hub found
ol/cron/crontabshub 1-0:1.0: 1 port detected
/Admin .
CMDusb usb1: authorized to connect
: /bin/sysconf send_unix_sock_message /var/run/systemd.usock do_LanV6Server restart
do_restartLanV6Server - 482
do_cleanLanV6Server - 542
4 cpu
4 cpu
[stop_upnp:20258] Stop miniupnpd! (wanIf=ppp0)
CMD: /bin/sh -c echo 1 > /proc/sys/net/ipv6/conf/br0/dad_transmits
[resetUsbDevice]reset /sys/bus/usb/devices/usb1/authorized
upnpctrl(down): MINIUPNPD did not start!
[resetUsbDevice]reset /sys/bus/usb/devices/usb2/authorized
hub 2-0:1.0: USB hub found
hub 2-0:1.0: 1 port detected
usb usb2: authorized to connect
[resetUsbDevice]reset /sys/bus/usb/devices/usb3/authorized
hub 3-0:1.0: USB hub found
hub 3-0:1.0: 1 port detected
usb usb3: authorized to connect
[resetUsbDevice]reset /sys/bus/usb/devices/usb4/authorized
hub 4-0:1.0: USB hub found
hub 4-0:1.0: 1 port detected
usb usb4: authorized to connect
[update_monitor_list_file:23673] process_name = systemd, action = 1
[update_monitor_list_file:23673] process_name = omci_app, action = 1
CMD: /bin/monitord
System startup success !
===== monitord =====
Debug message: off
Monitor Timer: 15 sec.
ip6tables v1.4.18: Couldn't load target `NPT_PREROUTING_TBL':No such file or directory
Try `ip6tables -h' or 'ip6tables --help' for more information.
ip6tables: No chain/target/match by that name.
ip6tables: No chain/target/match by that name.
br0: port 6(wlan1) entered forwarding state
ip6tables v1.4.18: Couldn't load target `NPT_POSTROUTING_TBL':No such file or directory
Try `ip6tables -h' or 'ip6tables --help' for more information.
ip6tables: No chain/target/match by that name.
ip6tables: No chain/target/match by that name.
RTNETLINK answers: File existsM2-2050-G40 boot dump (newer revision)
txt
Bismarck Preloader 3.7
II: LPLR:11261 PLR:5cb134c9 BD:24092617 TK:msdk-4.8.5-1004k-EB-3.18-u0.9.33-m32t-150818
II: TLB initial done:
.ro section works!
.text and .ro sections work!
II: cg_cpu_pll_init done
II: cg_sram_pll_init done
II: CPU0 1150MHz, CPU1 600MHz, DDR3 666MHz, LX 200MHz, SRAM 500MHz, SPIF 100MHz
II: apro_otp_setup_fcn(fc)
AK: ******* DRAM calibration version: v5.6 *******
AK: MEMPLL[31/63/95/127/159/191/223]=907f, c0000210, 64237c0, 320f0030, fff, a7f, 0
AK: TP=3, VD=1, CC=3, OT=2, EP=0, EB=0
ZQ: Clock: ODT/OCD=60/48, zq_zctrl_prog=0x c08033e, zq_zctrl_status=0x30b155
ZQ: Address: ODT/OCD=60/80, zq_zctrl_prog=0x1c080332, zq_zctrl_status=0x30b111
ZQ: DQ: ODT/OCD=60/60, zq_zctrl_prog=0x2c080338, zq_zctrl_status=0x30b133
ZQ: DQS: ODT/OCD=60/60, zq_zctrl_prog=0x3c080338, zq_zctrl_status=0x30b133
ZQ: INTERAL DDR3, ZQCL done, ZQCS Enable
AK: MRS: mr[0]=0x101a50, mr[1]=0x110004, mr[2]=0x120010, mr[3]=0x130000
AK: Start DDR_Calibration
AK: Bit/max_r_s/max_r_l/max_w_s/max_w_l Bit/max_r_s/max_r_l/max_w_s/max_w_l
[ 0] 0 1f 0 1f [16] 0 1f 0 1f
[ 1] 0 1f 0 1f [17] 0 1f 0 1f
[ 2] 0 1f 0 1f [18] 0 1f 0 1f
[ 3] 0 1f 0 1f [19] 0 1f 0 1f
[ 4] 0 1f 0 1f [20] 0 1f 0 1f
[ 5] 0 1f 0 1f [21] 0 1f 0 1f
[ 6] 0 1f 0 1f [22] 0 1f 0 1f
[ 7] 0 1f 0 1f [23] 0 1f 0 1f
[ 8] 0 1f 0 1f [24] 0 1f 0 1f
[ 9] 0 1f 0 1f [25] 0 1f 0 1f
[10] 0 1f 0 1f [26] 0 1f 0 1f
[11] 0 1f 0 1f [27] 0 1f 0 1f
[12] 0 1f 0 1f [28] 0 1f 0 1f
[13] 0 1f 0 1f [29] 0 1f 0 1f
[14] 0 1f 0 1f [30] 0 1f 0 1f
[15] 0 1f 0 1f [31] 0 1f 0 1f
AK: Finish DDR_Calibration
AK: DRAM size=0x10000000, tRFC[2]=0x165(nS), tREF=1729(nS)
AK: DCR=0x21321003, DTR[0:2]=0x99655828, 0x909061f, 0x6f19000
II: Change Stack from 0x9f002edc to 0x806fffe0
II: U-boot Magic Number is 0x27051956
II: Inflating U-Boot (0x80700040 -> 0x83c00000)... OK
II: Starting U-boot...
U-Boot 2020.01-svn25833 (Sep 26 2024 - 17:28:49 +0800)
Board: RTL9607Cv2, MIPS interAptiv:1150MHz RLX5281:600MHz LX:200MHz DDR3:666MHz SCLK:100MHz
ICACHE: 64KB (32-byte/4-way/512-set)
DCACHE: 32KB (32-byte/4-way/256-set)
DRAM: Physical 256 MiB, uboot useable size 256 MiB
NAND:
SPI NAND: 0xCD71, Mode(111/111)
Create bbt:
NAND: 128 MiB
Loading Environment from NAND... OK
In: serial
Out: serial
Err: serial
II: Init Software Patch!
II: sw_test
II: Configurate otto_flash_layout
Saving Environment to NAND... Erasing redundant NAND...
Erasing at 0xe0000 -- 100% complete.
Writing to redundant NAND... OK
OK
NAND read: device 0 offset 0x0, size 0xc0000
ECC error in block page addr 8
ECC error in block page addr 45
786432 bytes read: OK
CRC32 for 81c80000 ... 81d3ffff ==> 8860858b
Net: LUNA GMAC
Warning: eth device name has a space!
Hit ctrl + b to stop autoboot: 1 0
swcore_init
multicast_start Using LUNA GMAC device
mcast upgrade timeout.
ubi0: attaching mtd5
ubi0: scanning is finished
ubi0: attached mtd5 (name "ubi_device", size 124 MiB)
ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
ubi0: good PEBs: 995, bad PEBs: 0, corrupted PEBs: 0
ubi0: user volume: 5, internal volumes: 1, max. volumes count: 128
ubi0: max/mean erase counter: 5/3, WL threshold: 4096, image sequence number: 1197784227
ubi0: available PEBs: 488, total reserved PEBs: 507, PEBs reserved for bad PEB handling: 20
No size specified -> Using max size (5332992)
Read 5332992 bytes from volume ubi_k0 to 83000000
## Booting kernel from Legacy Image at 83000000 ...
Image Name: Linux-4.4.140
Image Type: MIPS Linux Kernel Image (lzma compressed)
Data Size: 4103928 Bytes = 3.9 MiB
Load Address: 80010000
Entry Point: 80935680
Verifying Checksum ... OK
Uncompressing Kernel Image
DEBUG_MEM_AUTO: mem_size=0x10000000, bankcnt=0x00000008, banksize=0x02000000 (dcr=0x21321003)
DEBUG_MEM_AUTO: BSP_DSP_MEM_BASE=0xf900000, SIZE=0x700000
DEBUG_MEM_AUTO: BSP_IPC_MEM_BASE=0xf800000, SIZE=0x100000
DEBUG_MEM_AUTO: LUNA_PBO_UL_DRAM_OFFSET = 0x0f700000, SIZE_BARRIER = 0x00100000
DEBUG_MEM_AUTO: LUNA_PBO_DL_DRAM_OFFSET = 0x0dc00000, SIZE_BARRIER = 0x00400000
DEBUG_MEM_AUTO: PAGE_SIZE = 0x00001000
DEBUG_MEM_AUTO: [bsp_prom_memmap]add_memory_region(0, 230686720, BOOT_MEM_RAM)
DEBUG_MEM_AUTO: [bsp_prom_memmap]add_memory_region(0x00000000, 0x0dc00000, BOOT_MEM_RAM)
DEBUG_MEM_AUTO: [bsp_prom_memmap]add_memory_region(234881024, 24117248, BOOT_MEM_RAM)
DEBUG_MEM_AUTO: [bsp_prom_memmap]add_memory_region(0x0e000000, 0x01700000, BOOT_MEM_RAM)
[ 0.000000] Initializing cgroup subsys cpuset
[ 0.000000] Initializing cgroup subsys cpu
[ 0.000000] Initializing cgroup subsys cpuacct
[ 0.000000] Linux version 4.4.140 (root@ubuntu) (gcc version 4.8.5 20150209 (prerelease) (Realtek MSDK-4.8.5p1 Build 3068) ) #8 SMP Wed Jul 9 09:15:50 CST 2025
[ 0.000000] chip Id 0x00009607, 0x96071801
[ 0.000000] MIPS: machine is Realtek Semiconductor RTL8198D
[ 0.000000] [L2_DEBUG:(bsp_scache_config,54)] - L2_Bypass: Disable
[ 0.000000] [L2_DEBUG:(bsp_setup_scache,82)]SCache LineSize= 32 (B)
[ 0.000000] Disable SRAM PLL...done
[ 0.000000] bootconsole [early0] enabled
[ 0.000000] CPU0 revision is: 0001a120 (MIPS interAptiv (multi))
[ 0.000000] MIPS: machine is rtk,9607c
[ 0.000000] Determined physical RAM map:
[ 0.000000] memory: 0dc00000 @ 00000000 (usable)
[ 0.000000] memory: 01700000 @ 0e000000 (usable)
[ 0.000000] Zone ranges:
[ 0.000000] Normal [mem 0x0000000000000000-0x000000000f6fffff]
[ 0.000000] HighMem empty
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000000000000-0x000000000dbfffff]
[ 0.000000] node 0: [mem 0x000000000e000000-0x000000000f6fffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x000000000f6fffff]
[ 0.000000] VPE topology {2,2} total 4
[ 0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.000000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
[ 0.000000] PERCPU: Embedded 11 pages/cpu @85821000 s12352 r8192 d24512 u45056
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 61652
[ 0.000000] Kernel command line: console=ttyS0,115200 ubi.mtd=4 root=31:7 rootfs=squashfs mtdparts=spinand:768K(boot),128K(env),128K(env2),128K(static_conf),127360K(ubi_device)
[ 0.000000] PID hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes)
[ 0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes)
[ 0.000000] Writing ErrCtl register=00000000
[ 0.000000] Readback ErrCtl register=00000000
[ 0.000000] Memory: 158196K/248832K available (9397K kernel code, 6063K rwdata, 2776K rodata, 236K init, 69144K bss, 90636K reserved, 0K cma-reserved, 0K highmem)
[ 0.000000] Hierarchical RCU implementation.
[ 0.000000] Build-time adjustment of leaf fanout to 32.
[ 0.000000] NR_IRQS:256
[ 0.000000] CPU clock is 1150
[ 0.000000] [apro_clocks_init]clk_data.clk_num=2, ocp=1150000000, lx=200000000
[ 0.000000] clocksource: GIC: mask: 0xffffffffffffffff max_cycles: 0x10939a911d9, max_idle_ns: 440795210078 ns
[ 0.000000] sched_clock: 32 bits at 100 Hz, resolution 10000000ns, wraps every 21474836475000000ns
[ 0.010000] Console: colour dummy device 80x25
[ 0.010000] Calibrating delay loop... 761.03 BogoMIPS (lpj=3805184)
[ 0.050000] pid_max: default: 32768 minimum: 301
[ 0.050000] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.060000] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.060000] Initializing cgroup subsys io
[ 0.070000] Initializing cgroup subsys memory
[ 0.070000] Initializing cgroup subsys devices
[ 0.070000] Initializing cgroup subsys freezer
[ 0.080000] Initializing cgroup subsys debug
[ 0.080000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.080000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.080000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
[ 0.080000] CPU1 revision is: 0001a120 (MIPS interAptiv (multi))
[ 0.140000] Synchronize counters for CPU 1: done.
[ 0.140000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.140000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.140000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
[ 0.140000] CPU2 revision is: 0001a120 (MIPS interAptiv (multi))
[ 0.200000] Synchronize counters for CPU 2: done.
[ 0.200000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.200000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.200000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
[ 0.200000] CPU3 revision is: 0001a120 (MIPS interAptiv (multi))
[ 0.260000] Synchronize counters for CPU 3: done.
[ 0.260000] Brought up 4 CPUs
[ 0.260000] devtmpfs: initialized
[ 0.270000] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.280000] futex hash table entries: 1024 (order: 3, 32768 bytes)
[ 0.280000] NET: Registered protocol family 16
[ 0.300000] pm-cps: CPC does not support clock gating
[ 0.310000] SCSI subsystem initialized
[ 0.310000] usbcore: registered new interface driver usbfs
[ 0.320000] usbcore: registered new interface driver hub
[ 0.320000] usbcore: registered new device driver usb
[ 0.330000] clocksource: Switched to clocksource GIC
[ 0.340000] NET: Registered protocol family 2
[ 0.340000] TCP established hash table entries: 2048 (order: 1, 8192 bytes)
[ 0.350000] TCP bind hash table entries: 2048 (order: 2, 16384 bytes)
[ 0.360000] TCP: Hash tables configured (established 2048 bind 2048)
[ 0.360000] UDP hash table entries: 256 (order: 1, 8192 bytes)
[ 0.370000] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes)
[ 0.380000] NET: Registered protocol family 1
[ 0.380000] USB: Using revC phy
[ 0.390000] register USB PHY: ehci-phy, RTK USB PHY version: v3.0 (2022.01.05)
[ 0.490000] EHCI2 initialization2
[ 0.500000] register USB PHY: ehci2-phy, RTK USB PHY version: v3.0 (2022.01.05)
[ 0.590000] [Kthread : luan_watchdog ] init complete!
[ 0.600000] ************ Watchdog Setting ****************
[ 0.600000] WDT_E=0, (1-enable, 0-disable)
[ 0.610000] WDT_CLK_SC=3
[ 0.610000] PH1_TO=31
[ 0.610000] PH2_TO=0
[ 0.620000] WDT_RESET_MODE=0
[ 0.620000] **********************************************
[ 0.630000] ==== Luna Watchdog Regs =====
[ 0.630000] BSP_WDTCNTRR(0xb8003260): 0x00000000
[ 0.640000] BSP_WDTINTRR(0xb8003264): 0x00000000
[ 0.640000] BSP_WDTCTRLR(0xb8003268): 0xe7c00000
[ 0.650000] =================================
[ 0.650000] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.660000] ntfs: driver 2.1.32 [Flags: R/W].
[ 0.660000] fuse init (API version 7.23)
[ 0.670000] io scheduler noop registered
[ 0.680000] io scheduler deadline registered
[ 0.680000] io scheduler cfq registered (default)
[ 0.690000] rtk-mips-ia-gpio 1b000038.gpio-controller: resource - [mem 0x1b000038-0x1b000043 flags 0x200] mapped at 0xbb000038
[ 0.700000] rtk-mips-ia-gpio 1b000038.gpio-controller: resource - [mem 0x18003308-0x1800335b flags 0x200] mapped at 0xb8003308
[ 0.710000] rtk-mips-ia-gpio 1b000038.gpio-controller: Setting up IRQs for GPIO bank 0
[ 0.720000] rtk-mips-ia-gpio 1b000038.gpio-controller: Setting up IRQs for GPIO bank 1
[ 0.730000] rtk-mips-ia-gpio 1b000038.gpio-controller: Setting up IRQs for GPIO bank 2
[ 0.740000] Realtek GPIO Driver for Flash Reload Default
[ 0.740000] rtk_prco_led_init
[ 0.750000] rtk_led_probe
[ 0.750000] rtk_led_pin(306):-2,0
[ 0.750000] rtk_led_probe : btn_wps -2
[ 0.800000] Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled
[ 0.810000] console [ttyS0] disabled
[ 0.820000] 18002000.serial: ttyS0 at MMIO 0x18002000 (irq = 46, base_baud = 12327200) is a 16550A
[ 0.830000] console [ttyS0] enabled
[ 0.830000] console [ttyS0] enabled
[ 0.830000] bootconsole [early0] disabled
[ 0.830000] bootconsole [early0] disabled
[ 0.840000] aipcBoardChipId=0x96070001 aipcBoardChipRev=0x00000003 aipcBoardChipSubType=0x00000018
[ 0.850000] RTL9607C_CHIP_ID 0x96070001
[ 0.860000] CHIP_REV_ID_C 0x00000003
[ 0.960000] aipc: register chrdev(254,0)
[ 0.960000] aipc: create device successed
[ 0.970000] aipc: start aipc irq init
[ 0.970000] aipc: Request IRQ for IPC OK
[ 0.980000] aipc: create dsp console device successed
[ 0.980000] aipc: init done
[ 0.990000] Realtek Luna SPI NAND Flash Driver Rev:00:00:00 (ChaoYuan_Yang)
[ 0.990000] [SPINAND] Blocks number under 6 are protected
[ 1.000000] [SPINAND] Allow max 4 bits flip in blank page!
[ 1.020000] Use RTK bb func
[ 1.020000] Use RTK bb scan
[ 1.020000] nand: device found, Manufacturer ID: 0xcd, Chip ID: 0x71
[ 1.030000] nand: Longsys
[ 1.030000] nand: 128 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64
[ 1.150000] good block number 1024
[ 1.160000] 5 cmdlinepart partitions found on MTD device spinand
[ 1.160000] RTK: using dynamic nand partition
[ 1.170000] Creating 5 MTD partitions on "spinand":
[ 1.170000] 0x000000000000-0x0000000c0000 : "boot"
[ 1.180000] 0x0000000c0000-0x0000000e0000 : "env"
[ 1.190000] 0x0000000e0000-0x000000100000 : "env2"
[ 1.190000] 0x000000100000-0x000000120000 : "static_conf"
[ 1.200000] 0x000000120000-0x000007d80000 : "ubi_device"
[ 1.210000] Size of the first partition is 6 blocks.
[ 1.210000] Realtek SPINAND Flash Driver is successfully installing.
[ 1.220000] Init RTK Driver Module....rtk_switch_irq_init 364 irq=38 name=apl_sw
[ 1.310000] phy recovery init complete! version 1.1
[ 1.320000] OK
[ 1.320000] Init RTK Core Dev Module....OK
[ 1.330000]
[ 1.330000] rtdrv_init !!!! for netfilter
[ 1.330000] [rtdrv_init]: rtdrv_ext_igmpHook_sockopts init.
[ 1.340000] [rtdrv_init]: rtdrv_ext_igmpHook_sockopts success.
[ 1.350000] pkt_redirect_init complete
[ 1.350000] interrupt broadcaster init ok!
[ 1.350000] drivers/net/ethernet/realtek/rtl86900/sdk/src/module/dspbo_queue/dspbo_queue_main.c:284 pDsPboQueueTask complete!
[ 1.370000] re8670_set_features 1056: enter
[ 1.370000] re8670_set_features 1056: enter
[ 1.380000] re8670_set_features 1056: enter
[ 1.380000] re8670_set_features 1056: enter
[ 1.390000] re8670_set_features 1056: enter
[ 1.390000] re8670_set_features 1056: enter
[ 1.400000] re8670_set_features 1056: enter
[ 1.400000] re8670_set_features 1056: enter
[ 1.410000] re8670_set_features 1056: enter
[ 1.410000] re8670_set_features 1056: enter
[ 1.420000] >>>> Set nas0 carrier off !!!
[ 1.460000] Disable gmac[0] padding
[ 1.460000]
[ 1.460000] rtk_gmac_netdev_init 11165: netdev name=eth0 exist
[ 1.480000] Disable gmac[1] padding
[ 1.490000]
[ 1.490000] rtk_gmac_netdev_init 11165: netdev name=eth0 exist
[ 1.510000] Disable gmac[2] padding
[ 1.510000] first entry: 0, portmask 2047, rx: 8093e008
[ 1.520000] [FCEXT] rtk_fc_extmodule_init
[ 1.540000] [FCMGR] module init @rtk_fc_mgr_init(647)
[ 1.550000] fc_db.controlFuc.mem_leak_debug = 0
[ 1.550000] fc_db.controlFuc.special_fast_forward_mode = 0
[ 1.560000] fc_db.controlFuc.hwnat_customize = 0
[ 1.560000] fc_db.controlFuc.hwnat_customize_nptv6_sram_acc_v2 = 0
[ 2.390000] RTK FleetConntrack Driver - core module init
[ 2.400000] - version: usdk_v2.2.0.0.189 (e7f11e6e) 05/10/22-22:23:09
[ 2.400000] - mem usage 6737 KB (malloc:2102904 fc_db:4796040 pro_db:532)
[ 2.410000] priority: 0, portmask 2047, rx: 8093e008
[ 2.420000] insert here, priority: 1, portmask 2047, rx: 80942b10
[ 2.420000] priority: 1, portmask 2047, rx: 80942b10
[ 2.430000] insert here, priority: 10, portmask 2047, rx: 809429b4
[ 2.440000] RTK FleetConntrack Driver - manager module init
[ 2.440000] - mem usage 87 KB (db:21976 nicrx_ipi:68096)
[ 2.450000] rtk_common_utility_init 355 common utility init!
[ 2.450000] PPP generic driver version 2.4.2
[ 2.460000] NET: Registered protocol family 24
[ 2.460000] PPTP driver version 0.8.5
[ 2.470000] MPPE/MPPC encryption/compression module registered
[ 2.470000] __rtl8192cd_init(18747): SIZE=2 b8b30000/ba000000/72
[ 2.480000] __rtl8192cd_init(18759): SIZE=2 b8b30000/ba000000/72
[ 2.490000] Realtek WLAN driver - version 4.0.8.3(2022-03-01)(SVN:30839)
[ 2.500000] DFS function - version 2.0.14
[ 2.500000] Adaptivity function - version 9.7.08
[ 2.530000] CFG0
[ 2.530000] PCIE0 reset pin is set to GPIO 40
[ 2.540000] ===> PCIE reset try 0
[ 2.750000] 9607c pcie port 0
[ 2.750000] IC-C v006 (2022.09.30)
[ 2.930000] Port0 Link@2.5GHz
[ 2.930000] rtl8192cd_init_one(15738): vendor_deivce_id(f81210ec) sub(f81210ec)
[ 2.940000]
[ 2.940000] found 8812F !!!
[ 2.950000] IS_RTL8812F_SERIES value8 = 14
[ 2.960000] Hardware type = RTL8812FE
[ 2.960000] MACHAL_version_init
[ 2.970000] 55772M
[ 2.970000] HALMAC_MAJOR_VER = 1
[ 2.970000] HALMAC_PROTOTYPE_VER = 6
[ 2.970000] HALMAC_MINOR_VER = 6
[ 2.970000] HALMAC_PATCH_VER = 23
[ 2.980000] [TRACE]halmac_init_adapter <===
[ 2.990000] halmac_init_adapter Succss
[ 2.990000] [MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 3.000000] [rtl8192cd_init_one][17034] init sae_peer_table
#######################################################
[ 3.170000] SKB_BUF_SIZE=9232 MAX_SKB_NUM=4096
[ 3.180000] #######################################################
[ 3.180000]
[ 3.200000] [wlan0] init sae_peer_table
[wlan0] init sae_peer_table
[wlan0] init sae_blacklist_table
[MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 3.210000] [MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 3.220000] [MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 3.230000] [MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 3.240000] [MACFM_software_init 256]wifi hal support Mac function = 0x11ff
[ 3.270000] CFG1
[ 3.280000] PCIE1 reset pin is set to GPIO 39
[ 3.280000] ===> PCIE reset try 0
[ 3.500000] 9607c pcie port 1
[ 3.500000] IC-C v006 (2022.09.30)
[ 3.650000] Port1 Link@2.5GHz
[ 3.660000] rtl8192cd_init_one(15738): vendor_deivce_id(818c10ec) sub(818c10ec)
[ 3.680000] IS_RTL8192F_SERIES value8 = d
[ 3.680000] MACHAL_version_init
[ 3.680000] [MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 3.690000] [rtl8192cd_init_one][17034] init sae_peer_table
#######################################################
[ 3.750000] SKB_BUF_SIZE=4832 MAX_SKB_NUM=2048
[ 3.750000] #######################################################
[ 3.750000]
[ 3.770000] [wlan1] init sae_peer_table
[wlan1] init sae_peer_table
[wlan1] init sae_blacklist_table
[MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 3.790000] [MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 3.800000] [MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 3.810000] [MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 3.820000] [MACFM_software_init 256]wifi hal support Mac function = 0x84960
[ 3.830000] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 3.830000] ehci-platform: EHCI generic platform driver
[ 3.840000] ehci-platform ehci-platform.0: EHCI Host Controller
[ 3.850000] ehci-platform ehci-platform.0: new USB bus registered, assigned bus number 1
[ 3.850000] ehci-platform ehci-platform.0: irq 74, io mem 0x18021000
[ 3.880000] ehci-platform ehci-platform.0: USB 2.0 started, EHCI 1.00
[ 3.880000] hub 1-0:1.0: USB hub found
[ 3.890000] hub 1-0:1.0: 1 port detected
[ 3.890000] ehci-platform ehci-platform.1: EHCI Host Controller
[ 3.900000] ehci-platform ehci-platform.1: new USB bus registered, assigned bus number 2
[ 3.910000] ehci-platform ehci-platform.1: irq 40, io mem 0x18021200
[ 3.930000] ehci-platform ehci-platform.1: USB 2.0 started, EHCI 1.00
[ 3.930000] hub 2-0:1.0: USB hub found
[ 3.940000] hub 2-0:1.0: 1 port detected
[ 3.940000] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[ 3.950000] ohci-platform: OHCI generic platform driver
[ 3.950000] ohci-platform ohci-platform.0: Generic Platform OHCI controller
[ 3.960000] ohci-platform ohci-platform.0: new USB bus registered, assigned bus number 3
[ 3.970000] ohci-platform ohci-platform.0: irq 74, io mem 0x18020000
[ 4.040000] hub 3-0:1.0: USB hub found
[ 4.040000] hub 3-0:1.0: 1 port detected
[ 4.050000] ohci-platform ohci-platform.1: Generic Platform OHCI controller
[ 4.060000] ohci-platform ohci-platform.1: new USB bus registered, assigned bus number 4
[ 4.070000] ohci-platform ohci-platform.1: irq 40, io mem 0x18020200
[ 4.130000] hub 4-0:1.0: USB hub found
[ 4.130000] hub 4-0:1.0: 1 port detected
[ 4.140000] usbcore: registered new interface driver cdc_acm
[ 4.140000] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[ 4.150000] usbcore: registered new interface driver usblp
[ 4.160000] usbcore: registered new interface driver uas
[ 4.170000] usbcore: registered new interface driver usb-storage
[ 4.170000] usbcore: registered new interface driver usbserial
[ 4.180000] usbcore: registered new interface driver usbserial_generic
[ 4.190000] usbserial: USB Serial support registered for generic
[ 4.190000] usbcore: registered new interface driver ftdi_sio
[ 4.200000] usbserial: USB Serial support registered for FTDI USB Serial Device
[ 4.210000] usbcore: registered new interface driver option
[ 4.210000] usbserial: USB Serial support registered for GSM modem (1-port)
[ 4.220000] usbcore: registered new interface driver pl2303
[ 4.230000] usbserial: USB Serial support registered for pl2303
[ 4.230000] hidraw: raw HID events driver (C) Jiri Kosina
[ 4.240000] usbcore: registered new interface driver usbhid
[ 4.250000] usbhid: USB HID core driver
[ 4.250000] /proc/slicReadID created
[ 4.250000] u32 classifier
[ 4.260000] Netfilter messages via NETLINK v0.30.
[ 4.260000] nf_conntrack version 0.5.0 (2471 buckets, 9884 max)
[ 4.270000] ip_set: protocol 6
[ 4.270000] gre: GRE over IPv4 demultiplexor driver
[ 4.280000] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 4.290000] NET: Registered protocol family 10
[ 4.290000] ip6_tables: (C) 2000-2006 Netfilter Core Team
[ 4.300000] sit: IPv6 over IPv4 tunneling driver
[ 4.310000] NET: Registered protocol family 17
[ 4.310000] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this.
[ 4.320000] Bridge firewalling registered
[ 4.330000] Ebtables v2.0 registered
[ 4.330000] l2tp_core: L2TP core driver, V2.0
[ 4.340000] l2tp_ppp: PPPoL2TP kernel driver, V2.0
[ 4.340000] 8021q: 802.1Q VLAN Support v1.8
[ 4.350000] Register system dying gasp...Done
[ 4.350000] ubi0: attaching mtd4
[ 4.970000] ubi0: scanning is finished
[ 4.990000] ubi0: attached mtd4 (name "ubi_device", size 124 MiB)
[ 4.990000] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[ 5.000000] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[ 5.010000] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[ 5.010000] ubi0: good PEBs: 995, bad PEBs: 0, corrupted PEBs: 0
[ 5.020000] ubi0: user volume: 5, internal volumes: 1, max. volumes count: 128
[ 5.030000] ubi0: max/mean erase counter: 5/3, WL threshold: 4096, image sequence number: 1197784227
[ 5.040000] ubi0: available PEBs: 488, total reserved PEBs: 507, PEBs reserved for bad PEB handling: 20
[ 5.050000] ubi0: background thread "ubi_bgt0d" started, PID 77
[ 5.050000] input: gpio-keys as /devices/platform/gpio-keys/input/input0
[ 5.050000] VoIP control bind 1 (1) instances successfully.
[ 5.050000] index dsp_cpuid dsp_cch host_cch
[ 5.050000] ----- --------- ------- --------
[ 5.050000] 0 0 0 0
[ 5.050000] voip spin lock init done
[ 5.050000] VoIP RX netfilter hook init done!
[ 5.050000] VoIP RX netfilter hook for IPv6 init done!
[ 5.050000] =============RTK VOIP SUITE=============
[ 5.050000] SDK VoIP Version: VoIP-1.6-DSP-R5523-Luna-R24-Integrate_RTL_CA
[ 5.050000] Board CFG Model :
[ 5.050000] INITIAL VOIP MANAGER PROGRAM
[ 5.120000] VFS: Mounted root (squashfs filesystem) readonly on device 31:7.
[ 5.130000] devtmpfs: mounted
[ 5.140000] Freeing unused kernel memory: 236K
[ 5.590000] tv_sec:5 tv_usec:590039
[ 5.590000] luna_watchdog: luna_watchdog/3 not respond!
Bad inittab entry at line 34
starting pid 85, tty '': '/etc/init.d/rcS'
=== Start to run rc0 / rc63 ===
----- do_rc [/etc/init.d/rc2] -----
[ 5.740000] smuxdev: loading out-of-tree module taints kernel.
[ 5.750000] smuxdev: loaded
WARN: conflicting configurations in /etc/fstab and /etc/default/rcS
regarding the writability of rootfs. Please fix one of them.
[ 6.160000] UBIFS (ubi0:0): background thread "ubifs_bgt0_0" started, PID 115
[ 6.200000] UBIFS (ubi0:0): recovery needed
[ 6.340000] UBIFS (ubi0:0): recovery completed
[ 6.350000] UBIFS (ubi0:0): UBIFS: mounted UBI device 0, volume 0, name "ubi_Config"
[ 6.350000] UBIFS (ubi0:0): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 6.370000] UBIFS (ubi0:0): FS size: 6856704 bytes (6 MiB, 54 LEBs), journal size 1396736 bytes (1 MiB, 11 LEBs)
[ 6.380000] UBIFS (ubi0:0): reserved for root: 0 bytes (0 KiB)
[ 6.380000] UBIFS (ubi0:0): media format: w4/r0 (latest is w4/r0), UUID 0C80F7CB-3338-465E-B29C-CEE374C86457, small LPT model
----- do_rc [/etc/init.d/rc3] -----
--,mib_init
set_msgqueue_max_size:417> set msgqidds.msg_qbytes=36000 OK
set_msgqueue_max_size:417> set msgq[ 7.420000] sys_capability_single_write:0,2,0,0,1,1
[ 7.420000]
idds.msg_qbytes=36000 OK
[ 7.610000] aipc: (0419)prepare_BIR
aipc: write image successful. size=2881648 rc=2881648 wc=2881648[ 7.980000] aipc: (0528)aipc_dev_ioctl boot dsp
da=0xb02c0400 remain=0
[ 7.990000] aipc: (0530)aipc_dev_ioctl boot dsp done
Wait DSP 0/1 booting ......
.[ 8.510000] aipc: (0599)aipc_dsp_disable_mem
Wait DSP ok. wait_cnt=1
DSP 0 Software Ready!
rtkbosa: Don’t care pon mode, use general file
cat: can't open '/var/config/rtkbosa_k_checksum': No such file or directory
rtkbosa: checksumold =
rtkbosa: Use general file [/var/config/rtkbosa_k.bin]
rtkbosa: Version 2.10 (Jul 9 2025 - 09:38:59)
rtkbosa: Detecting RTL8290B ...
rtkbosa: Error (0x10): The chip is not found
rtkbosa: Detecting UX3320_S ...
rtkbosa: Read 0x51.0xF5(0x55): 0x80
rtkbosa: Read 0x51.0xF6(0x58): 0xD3
rtkbosa: Read 0x51.0xF7(0x33): 0x00
rtkbosa: Read 0x51.0xF8(0x33): 0x00
rtkbosa: Read 0x51.0xF9(0x32): 0x00
rtkbosa: Read 0x51.0xFA(0x30): 0x00
rtkbosa: Read 0x51.0xFB(0x53): 0x00
rtkbosa: Detecting UX3360 ...
rtkbosa: Read 0x51.0x80(0x55): 0xFF
rtkbosa: Read 0x51.0x81(0x58): 0xFF
rtkbosa: Read 0x51.0x82(0x33): 0xFF
rtkbosa: Read 0x51.0x83(0x33): 0xFF
rtkbosa: Read 0x51.0x84(0x36): 0xFF
rtkbosa: Read 0x51.0x85(0x30): 0xFF
rtkbosa: Detecting UX3361 ...
rtkbosa: Read 0x51.0x80(0x55): 0xFF
rtkbosa: Read 0x51.0x81(0x58): 0xFF
rtkbosa: Read 0x51.0x82(0x33): 0xFF
rtkbosa: Read 0x51.0x83(0x33): 0xFF
rtkbosa: Read 0x51.0x84(0x36): 0xFF
rtkbosa: Read 0x51.0x85(0x33): 0xFF
rtkbosa: Read 0x51.0x86(0x31): 0xFF
rtkbosa: Detecting Semtech Series (GN2xL9x) ...
rtkbosa: Read 0x51.0x7B(0x00): 0x00
rtkbosa: Read 0x51.0x7C(0x00): 0x00
rtkbosa: Read 0x51.0x7D(0x00): 0x00
rtkbosa: Read 0x51.0x7E(0x00): 0x00
rtkbosa: Detecting Semtech Bosa ID ...
rtkbosa: A2 Table ff: 0x80 = 0xff ; 0x85 = 0xff ; 0x86 = 0xff
rtkbosa: A2 Table 2: 0xD1 = 0xa3
rtkbosa: SEMTECH GN25L95 is Found
rtkbosa: A2 Table 0x02.0xc0 = 0x02
rtkbosa: none EEPROM exists.
rtkbosa: Starting Init GN25L95 ...
rtkbosa: Open file [/var/config/rtkbosa_k.bin]
rtkbosa: (0) Dump A0 (Disabled)
rtkbosa: (1) Dump LUTs4 Data
rtkbosa: (2) Dump LUTs5 Data
rtkbosa: (3) Dump LUTs6 Data
rtkbosa: (4) Dump A2.table2
rtkbosa: (5) Dump all slope and offsets - A2_TABLE2
rtkbosa: (6) Dump all alarms and warnings levels A2-Lower
rtkbosa: (7) Set PON_CONTROL
rtkbosa: (8) Enable all alarms and warnings
rtkbosa: Read reg (A2T1.249): c0
rtkbosa: Write reg (A2T1.249): c0
rtkbosa: Read reg (A2T1.253): c0
rtkbosa: Write reg (A2T1.253): c0
rtkbosa: (9) Soft TX disable reset
rtkbosa: Read Soft TX reg (A2T1.110): 40
rtkbosa: Write Soft TX reg (A2T1.110): 40
rtkbosa: Write Soft TX reg (A2T1.110): 00
rtkbosa: (10) Set Safe Mode Start Up
rtkbosa: (11) Set up the password level
rtkbosa: 9603C/9607C(Get): A2/0xBB = 0x1d
rtkbosa: 9603C/9607C(Set): A2/0xBB = 0x1d
rtkbosa: A2.T2/0xB1 = 0x0c
rtkbosa: A2.T2/0xB7 = 0x41
rtkbosa: Init done ...
rtkbosa: Do NOT save A0 data for Semtech BOSA
rtkbosa: done
diable printk= 0 parameter is 1
/etc/init.d/rc3: line 7: /bin/checkomci: not found
grep: /config/default_scfg.txt: No such file or directory
RTL Chip............
Loading modules: ca-ne ca-plat-kernel ca-sdk-cb libscfg find: /lib/modules/users/: No such file or directory
[ 9.950000] re8670_open 5211
[ 9.950000] re8670_open 5226
[ 9.960000] re8670_open 5226
[ 9.980000] re8670_open 5226
[ 10.080000] fiber Pre-defined (Auto) mode init complete!
insmod: can't insert '/lib/modules/rldp_drv.ko': No such file or directory
Loading Realtek IGMP/ MLD Snooping Module...
[ 10.160000] multicast_moudle_init
----- do_rc [/etc/init.d/rc6] -----
----- do_rc [/etc/init.d/rc10] -----
----- do_rc [/etc/init.d/rc14] -----
----- do_rc [/etc/init.d/rc18] -----
----- do_rc [/etc/init.d/rc20] -----
----- do_rc [/etc/init.d/rc32] -----
Start rtk_ramonitor daemon!
----- do_rc [/etc/init.d/rc34] -----
write watchdog_flag to 0x00000001
REG32(BSP_WDTCTRLR) = 0xe7c00000
----- do_rc [/etc/init.d/rc35] -----
[setup_usock_thread:6407] Create new theread for usock
[setup_pushbtn_thread:5702] Create new theread for pushbtn
Input driver version is 1.0.1
Input device ID: bus 0x19 vendor 0x1 product 0x1 version 0x100
Input device name: "gpio-keys"
Supported events:
Event type 0 (Sync)
Event type 1 (Key)
Event code 238
Event code 408
Event code 529
Event type 20 (Repeat)
Grab succeeded, ungrabbing.
run rcm voip script...
Reset value to -1
ponmode PON_MODE=3
Inactive PIN_CS: Reset value to -1
<<<<<<<<<<< Si3219x Driver Version 9.1.0 >>>>>>>>>>
Reset value to -1
------------------------------
Reset value to -1
SLIC 32192 HW intf 0 CS=0
aipc: (0296)aipc_module_voip_set_pcm_fs IO_MODE_EN=0x0000a050
Pull low GPIO 28
Reset value to -1
Reset value to -1
Reset value to -1
Reset value to -1
Turn on phy power...
Reset value to -1
Reset value to -1
diable printk= 0 parameter is 0
4 cpu
>> Disable NIC SRAM accerlate - DRAM mode <<
random: nonblocking pool is initialized
/bin/sh: can't create /proc/rtl8686gmac/dynamic_sram_desc: nonexistent dire8670_reset 11419 enter
rectory
re8670_reset 11459 gmac=0
re8670_reset 11464 Enable LX bus 0 timeout monitor
re8670_hardware_reset 11357 enter
starting pid 390, tty '/dev/ttyS0': '/bin/login -p'
Disable gmac[0] padding
re8670_hardware_reset 11400 exit
starting pid 392, tty '': '/bin/inetd'
Pull high GPIO 28
Start SLIC init....
login: service /bin/ftpd port 21 tcp enabled
service /bin/telnetd port 23 tcp enabled
service /bin/tftpd port 69 udp enabled
cs0
MSIF_LOCK 0x1, cs 0x0
Start SLIC init....
ubi0 error: ubi_open_volume: cannot open device 0, volume 0, error -16
re8670_reset 11529 Disable LX bus 0 timeout monitor
re8670_reset 11459 gmac=1
re8670_reset 11474 Enable LX bus 1 timeout monitor
re8670_hardware_reset 11357 enter
Disable gmac[1] padding
re8670_hardware_reset 11400 exit
SLIC0 ID: str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
str = [00000000:01000000]
regvalue = 0
Unknow SLIC Unknown VersionSi3219x_Init_with_Options(605) size = 1 init_opt = 0
Si3219x: register 0 read = 0x00
Si3219x: : failed to detect any ProSLICs
ERROR: proslic SLIC Initialization failed
Init error!
re8670_reset 11537 Disable LX bus 1 timeout monitor
re8670_reset 11459 gmac=2
re8670_reset 11464 Enable LX bus 0 timeout monitor
re8670_hardware_reset 11357 enter
Disable gmac[2] padding
re8670_hardware_reset 11400 exit
re8670_reset 11529 Disable LX bus 0 timeout monitor
re8670_reset 11570 exit
0
meter set pon-tick-token tick-period 73 token 97
RTK.0> command:[rtk_qos_tick_tocken_init:222] Enable 9607C 8000Kbps base !!
meter set tick-token tick-period 71 token 151
RTK.0> command:register set 0x801030 0x80004797
RTK.0> command:Error: cannot open /sys/class/net/eth0.2.0/ifindex
Error: cannot open /sys/class/net/eth0.3.0/ifindex
Error: cannot open /sys/class/net/eth0.4.0/ifindex
Error: cannot open /sys/class/net/eth0.5.0/ifindex
Error ioctl in ethctl No such device 19
CMD: /bin/sh -c /bin/echo 5 nas0 > /proc/eth_nic/dev_port_mapping
port 5 assign to nas0
CMD: /bin/sh -c echo 0x20 > /proc/fc/ctrl/wan_port_mask
CMD: /bin/smuxctl --if nas0 --set-if-rsmux --set-if-rx-policy DROP --set-if-tx-policy CONTINUE --set-if-rxmc-policy DROP --set-if-rx-multi 1
CMD: /bin/sh -c echo auto_reserve_vlan 1 > prSet auto_reserve_vlan to 1 OK.
oc/rtk_smuxdev/configure
MIB chain descriptors checking (total 63) ok !
CMD: /bin/mkdir -p /var/network
>>> Disable /dev/console XON XOFF !!!
CMD: /bin/touch /var/wan_sockmark_file
CMD: /bin/ifconfig eth0.2 hw ether *redacted*
CMD: /bin/ifconfig eth0.3 hw ether *redacted*
CMD: /bin/ifconfig eth0.4 hw ether *redacted*
CMD: /bin/ifconfig eth0.5 hw ether *redacted*
<utility.c 981 setup_mac_addr> macAddr[5]+1 = 6e
CMD: /bin/ifconfig wlan0 hw ether 8a28f6349b6e
CMD: /bin/ifconfig wlan0 mtu 1500
CMD: /bin/ifconfig wlan0-vap0 hw ether 8a28f6349b6f
CMD: /bin/ifconfig wlan0-vap0 mtu 1500
CMD: /bin/ifconfig wlan0-vap1 hw ether 8a28f6349b68
CMD: /bin/ifconfig wlan0-vap1 mtu 1500
CMD: /bin/ifconfig wlan0-vap2 hw ether 8a28f6349b69
CMD: /bin/ifconfig wlan0-vap2 mtu 1500
CMD: /bin/ifconfig wlan0-vap3 hw ether 8a28f6349b6a
CMD: /bin/ifconfig wlan0-vap3 mtu 1500
<utility.c 981 setup_mac_addr> macAddr[5]+1 = 6f
CMD: /bin/ifconfig wlan1 hw ether 9228f6349b6f
CMD: /bin/ifconfig wlan1 mtu 1500
CMD: /bin/ifconfig wlan1-vap0 hw ether 9228f6349b68
CMD: /bin/ifconfig wlan1-vap0 mtu 1500
CMD: /bin/ifconfig wlan1-vap1 hw ether 9228f6349b69
CMD: /bin/ifconfig wlan1-vap1 mtu 1500
CMD: /bin/ifconfig wlan1-vap2 hw ether 9228f6349b6a
CMD: /bin/ifconfigport 0 wlan1-vap2 mtu assign to eth0.2
1500
CMD: /bin/ifconfig wlan1-vap3 hw ether 9228f6349b6b
CMD: /bin/ifconfig wlan1-vap3 mtu 1500
CMD: /bin/ifconfig eth0 up
CMD: /bin/ifconfig eth0 mtu 1500
CMD: /bin/sh -c /bin/echo 0 eth0.2 > /proc/eth_nic/dev_port_mapping
CMD: /bin/ifconfig eth0.2 up
port 1 CMD: /bin/ifconfassign to eth0.3
ig eth0.2 mtu 1500
CMD: /bin/smuxctl --if-create-name eth0.2 eth0.2.0 --set-if-rsmux
CMD: /bin/smuxctl --if eth0.2 --rx --tags 0 --set-rxif eth0.2.0 --rule-alias eth0.2-rx-default --rule-append
CMD: /bin/sh -c /bin/echo 1 eth0.3 > /proc/eth_nic/dev_port_mapping
CMD: /port 2 bin/ifconfig ethassign to eth0.4
0.3 up
CMD: /bin/ifconfig eth0.3 mtu 1500
CMD: /bin/smuxctl --if-create-name eth0.3 eth0.3.0 --set-if-rsmux
CMD: /bin/smuxctl --if eth0.3 --rx --tags 0 --set-rxif eth0.3.0 --rule-alias eth0.3-rx-default --rule-append
CMD: /bin/sh -c /bin/echo 2 eth0.4 > /proc/eth_nic/dev_port_mapping
CMD: /bin/port 3 ifconfig eth0.4 assign to eth0.5
up
CMD: /bin/ifconfig eth0.4 mtu 1500
CMD: /bin/smuxctl --if-create-name eth0.4 eth0.4.0 --set-if-rsmux
CMD: /bin/smuxctl --if eth0.4 --rx --tags 0 --set-rxif eth0.4.0 --rule-alias eth0.4-rx-default --rule-append
CMD: /bin/sh -c /bin/echo 3 eth0.5 > /proc/eth_nic/dev_port_mapping
CMD: /bin/ifconfig eth0.5 up
CMD: /bin/ifconfig eth0.5 mtu 1500
CMD: /bin/smuxctl --if-create-name eth0.5 eth0.5.0 --set-if-rsmux
CMD: /bin/smuxctl --if eth0.5 --rx --tags 0 --set-rxif eth0.5.0 --rule-alias eth0.5-rx-default --rule-append
CMD: /bin/brctl addbr br0
CMD: /bin/ifconfig br0 hw ether *redacted*
CMD: /bin/ifconfig br0 mtu 1500
CMD: /bin/ifconfig eth0 hw ether *redacted*
ifconfig: SIOCSIFHWADDR: Device or resource busy
CMD: /bin/sh -c echo 0 > /proc/sys/net/ipv4/conf/br0/rp_filter
[rtk_fc_stp_clean@3349]: ERROR! No such file or directory
[rtk_fc_stp_clean@3361]: ERROR! No such file or directory
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --rx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --tx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --rx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --tx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --rx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.2 --tx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --rx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --tx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --rx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --tx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --rx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.3 --tx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --rx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --tx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --rx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --tx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --rx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.4 --tx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --rx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --tx --tags 0 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxcdevice eth0.2.0 entered promiscuous mode
tl --if eth0.5 --rx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --tx --tags 1 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --rx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/sh -c /bin/smuxctl --if eth0.5 --tx --tags 2 --rule-remove-alias STP-Rule+
CMD: /bin/brctl stp br0 off
CMD: /bin/brctl setfd br0 1
CMD: /bin/brctl setageing br0 7200
setupUniPortCapability:883 line is 2;2;2;2
setupUniPortCapability:887 pch is 2
setupUniPortCapability:968 pch is 2, port 0, UNI_PORT_GE
setupUniPortCapability:887 pch is 2
setupUniPortCapability:968 pch is 2, port 1, UNI_PORT_GE
setupUniPortCapability:887 pch is 2
setupUniPortCapability:968 pch is 2, port 2, UNI_PORT_GE
setupUniPortCapability:887 pch is 2
setupUniPortCapability:968 pch is 2
, port 3, UNI_PORT_GE
CMD: /bin/ifconfig eth0.2.0 mtu 1500
CMD: /bin/brctl addif br0 eth0.2.0
CMD: /bin/ifconfig eth0.2.0 down
CMD: /bin/ifconfig eth0.2 down
<<<<<<<<<<<<<<<<<<<<<<<<>>>>>>>>>>>>>>>>>>>>>>
All DSP Software Ready. VoIP Defer Init done.
start watch dog
CMD: /bin/ifconfig eth0.2.0 up
CMD: /bin/ifconfig eth0.2 up
[restart_ethernet@16749] eth0.2.0 is up
getUniPortCapability:1163 line device eth0.3.0 entered promiscuous mode
is 2;2;2;2
getUniPortCapability:1170 pch is 2, port is 0
CMD: /bin/ifconfig eth0.3.0 mtu 1500
CMD: /bin/brctl addif br0 eth0.3.0
CMD: /bin/ifconfig eth0.3.0 down
CMD: /bin/ifconfig eth0.3 down
CMD: /bin/ifconfig eth0.3.0 up
CMD: /bin/ifconfig eth0.3 up
[restart_ethernet@16749] eth0.3.0 is up
getUniPortCapability:1163 line is 2;2;2;2
getUniPortdevice eth0.4.0 entered promiscuous mode
Capability:1170 pch is 2, port is 1
CMD: /bin/ifconfig eth0.4.0 mtu 1500
CMD: /bin/brctl addif br0 eth0.4.0
Testing ... (interrupt to exit)
CMD: /bin/ifconfig eth0.4.0 down
CMD: /bin/ifconfig eth0.4 down
CMD: /bin/ifconfig eth0.4.0 up
CMD: /bin/ifconfig eth0.4 up
[restart_ethernet@16749] eth0.4.0 is up
getUniPortCapability:1163 line is 2;2;2;2
getUniPortCapability:1170 pch is 2, port is 2
CMD: /bin/ifconfig eth0device eth0.5.0 entered promiscuous mode
.5.0 mtu 1500
CMD: /bin/brctl addif br0 eth0.5.0
CMD: /bin/ifconfig eth0.5.0 down
CMD: /bin/ifconfig eth0.5 down
CMD: /bin/ifconfig eth0.5.0 up
CMD: /bin/ifconfig eth0.5 up
[restart_ethernet@16749] eth0.5.0 is up
getUniPortCapability:1163 line is 2;2;2;2
getUniPortCapability:1170 pch is 2
, port is 3
CMD: /bin/sh -c echo 4 > /proc/sys/net/ipv6/conf/br0/dad_transmits
CMD: /bin/ifconfig br0 up
CMD: /bin/ifconfig br0 192.168.33.4 netmask 255.255.255.0 mtu 1500
Find ATM_VC_TBL interface br0 Fail!
<subr_net.c 12557 set_ipv4_lan_policy_route> Set IPv4 LAN route for ifname (br0), table(260)
Auto Link-Local Address for br0
IPv6: ADDRCONF(NETDEV_UP): br0: link is not ready
CMD: /bin/sh -c echo 0 > /proc/sys/net/ipv6/rtk_ip6_logo_test
mode=0 , rtk_op_mode = 0
CMD: /bin/spppd
rm: can't remove '/var/localtime': No such file or directory
iptables: Bad rule (does a matching rule exist in that chain?).
CMD: /bin/vsntp -s clock.fmt.he.net -s clock.nyc.he.net
do_restart_dnsrelay:4171 no delay dns
[update_monitor_list_file:23790] process_name = dnsmasq, action = 0
Open file /var/tmp/hosts failed !
CMD: /bin/arp_monitor -F -d -t 3 -nf 3 -nt 7 -i br+
!!!DNSMAQS :detect upd port at 42184
drivers/net/ethernet/realtek/rtl86900/sdk/src/rtk/pon_led.c:1501 led sw blink init complete!
rtk_pon_led_SpecType_set 0
CMD: /bin/sh -c /bin/ip rule add from all lookup 257 pref 27900
CMD: /bin/sh -c /bin/ip rule add from all lookup 260 pref 28000
CMD: /bin/sh -c /bin/ip -6 rule add from all lookup 257 pref 27900
CMD: /bin/sh -c /bin/ip -6 rule add from all lookup 260 pref 28000
CMD: /bin/sh -c /bin/ip -6 rule add from all lookup 259 pref 27950
CMD: /bin/sh -c /bin/ip -6 rule add from all lookup 258 pref 27945
getaddrinfo: Temporary failure in name resolution
connect clock.fmt.he.net: No such file or directory
getaddrinfo: Temporary failure in name resolution
connect clock.nyc.he.net: No such file or directory
[restart_ethernet@16749] eth0.2.0 is up
getUniPortCapability:1163 line is 2;2;2;2
getUniPortCapability:1170 pch is 2, port is 0
[restart_ethernet@16749] eth0.3.0 is up
getUniPortCapability:1163 line is 2;2;2;2
getUniPortCapability:1170 pch is 2, port is 1
[restart_ethernet@16749] eth0.4.0 is up
getUniPortCapability:1163 line is 2;2;2;2
getUniPortCapability:1170 pch is 2, port is 2
[restart_ethernet@16749] eth0.5.0 is up
==================allocate_sfd===============
intname = ,source_addr = 0.0.0.0,sin_port = 42184
=============================================
getUniPortCapability:1163 line is 2;2;2;2
getUniPortCapability:1170 pch is 2
, port is 3
<subr_net.c 26398 startWan> startWan Start all WAN
[update_monitor_list_file:23790] process_name = dnsmasq, action = 1
CMD: /bin/ifconfig nas0 hw ether *redacted*
CMD: /bin/ifconfig nas0 up
CMD: /bin/ifconfig nas0 mtu 1500
CMD: /bin/ethtool -k nas0 gso on
ethtool: bad command line argument(s)
For more information run ethtool -h
CMD: /bin/iptables -P INPUT DROP
CMD: /bin/iptables -P FORWARD ACCEPT
CMD: /bin/iptables -A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT
CMD: /bin/iptables -A FORWARD -p tcp -o ppp+ --tcp-flags SYN,RST SYN -j TCPMSS --clamp-mss-to-pmtu
CMD: /bin/iptables -A FORWARD -p tcp -i ppp+ --tcp-flags SYN,RST SYN -m tcpmss --mss 1452:65495 -j TCPMSS --set-mss 1452
CMD: /bin/ip6tables -A FORWARD -p tcp -o ppp+ --tcp-flags SYN,RST SYN -j TCPMSS --clamp-mss-to-pmtu
CMD: /bin/ip6tables -A FORWARD -p tcp -i ppp+ --tcp-flags SYN,RST SYN -m tcpmss --mss 1432:65475 -j TCPMSS --set-mss 1432
CMD: /bin/iptables -A INPUT -p udp --dport 520 -j ACCEPT
CMD: /bin/iptables -A INPUT ! -i br+ -d 239.255.255.250 -j DROP
CMD: /bin/iptables -A INPUT -d 224.0.0.0/4 -j ACCEPT
CMD: /bin/iptables -A INPUT -i lo -j ACCEPT
CMD: /bin/ip6tables -A INPUT -i lo -j ACCEPT
CMD: /bin/iptables -N aclblock
CMD: /bin/iptables -t nat -N aclblock
CMD: /bin/iptables -t mangle -N aclblock
CMD: /bin/iptables -F aclblock
CMD: /bin/iptables -t nat -F aclblock
CMD: /bin/iptables -t mangle -F aclblock
CMD: /bin/iptables -A aclblock -i lo -j RETURN
CMD: /bin/iptables -A aclblock ! -i br+ -m mark --mark 0x1000 -j ACCEPT
CMD: /bin/iptables -A aclblock -m state --state ESTABLISHED,RELATED -j ACCEPT
CMD: /bin/iptables -A aclblock ! -i br+ -j DROP
CMD: /bin/iptables -A INPUT -j aclblock
CMD: /bin/iptables -t nat -A PREROUTING -j aclblock
CMD: /bin/iptables -t mangle -A PREROUTING -j aclblock
CMD: /bin/ip6tables -N aclblock
CMD: /bin/ip6tables -F aclblock
CMD: /bin/ip6tables -P INPUT DROP
CMD: /bin/ip6tables -A INPUT -j aclblock
CMD: /bin/iptables -N cwmp_aclblock
CMD: /bin/iptables -t mangle -N cwmp_aclblock
CMD: /bin/iptables -F cwmp_aclblock
CMD: /bin/iptables -t mangle -F cwmp_aclblock
CMD: /bin/iptables -A INPUT -j cwmp_aclblock
CMD: /bin/iptables -t mangle -D PREROUTING -j cwmp_aclblock
CMD: /bin/iptables -t mangle -A PREROUTING -j cwmp_aclblock
CMD: /bin/ebtables -N br_lan_forward -P RETURN
CMD: /bin/ebtables -A FORWARD -j br_lan_forward
CMD: /bin/ebtables -D br_lan_forward -p IPv4 --ip-proto igmp -j BR_IGMP_MLD_DROP
Illegal target name 'BR_IGMP_MLD_DROP'.
CMD: /bin/ebtables -D br_lan_forward -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 143:143/0:255 -j BR_IGMP_MLD_DROP
Illegal target name 'BR_IGMP_MLD_DROP'.
CMD: /bin/ebtables -D br_lan_forward -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 130:132/0:255 -j BR_IGMP_MLD_DROP
Illegal target name 'BR_IGMP_MLD_DROP'.
CMD: /bin/ebtables -F BR_IGMP_MLD_DROP
Chain 'BR_IGMP_MLD_DROP' doesn't exist.
CMD: /bin/ebtables -X BR_IGMP_MLD_DROP
Chain 'BR_IGMP_MLD_DROP' doesn't exist.
CMD: /bin/ebtables -N BR_IGMP_MLD_DROP
CMD: /bin/ebtables -P BR_IGMP_MLD_DROP RETURN
CMD: /bin/ebtables -A BR_IGMP_MLD_DROP -i eth+ -o eth+ -j DROP
CMD: /bin/ebtables -A BR_IGMP_MLD_DROP -i eth+ -o wlan+ -j DROP
CMD: /bin/ebtables -A BR_IGMP_MLD_DROP -i wlan+ -o eth+ -j DROP
CMD: /bin/ebtables -A BR_IGMP_MLD_DROP -i wlan+ -o wlan+ -j DROP
CMD: /bin/ebtables -A br_lan_forward -p IPv4 --ip-proto igmp -j BR_IGMP_MLD_DROP
CMD: /bin/ebtables -A br_lan_forward -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 143:143/0:255 -j BR_IGMP_MLD_DROP
CMD: /bin/ebtables -A br_lan_forward -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 130:132/0:255 -j BR_IGMP_MLD_DROP
CMD: /bin/ebtables -N br_wan
CMD: /bin/ebtables -P br_wan RETURN
CMD: /bin/ebtables -N br_wan_out
CMD: /bin/ebtables -P br_wan_out RETURN
CMD: /bin/ebtables -N br_lan_out
CMD: /bin/ebtables -P br_lan_out RETURN
CMD: /bin/ebtables -A INPUT -j br_wan
CMD: /bin/ebtables -A OUTPUT -j br_wan_out
CMD: /bin/ebtables -A OUTPUT -j br_lan_out
CMD: /bin/ebtables -N br_wan_forward
CMD: /bin/ebtables -P br_wan_forward RETURN
CMD: /bin/ebtables -A FORWARD -j br_wan_forward
CMD: /bin/iptables -D INPUT -j voip_chain
iptables v1.4.18: Couldn't load target `voip_chain':No such file or directory
Try `iptables -h' or 'iptables --help' for more information.
CMD: /bin/iptables -F voip_chain
iptables: No chain/target/match by that name.
CMD: /bin/iptables -X voip_chain
iptables: No chain/target/match by that name.
CMD: /bin/iptables -N voip_chain
CMD: /bin/iptables -I INPUT -j voip_chain
CMD: /bin/ebtables -N wlan_block -P RETURN
CMD: /bin/ebtables -A FORWARD -j wlan_block
CMD: /bin/ebtables -N br_pppoe
CMD: /bin/ebtables -P br_pppoe RETURN
CMD: /bin/ebtables -N br_pppoe_acl
CMD: /bin/ebtables -P br_pppoe_acl DROP
CMD: /bin/ebtables -A FORWARD -j br_pppoe
CMD: /bin/ebtables -A br_pppoe_acl --proto 0x8100 --vlan-encap 0x8863 -j RETURN
CMD: /bin/ebtables -A br_pppoe_acl --proto 0x8100 --vlan-encap 0x8864 -j RETURN
CMD: /bin/ebtables -A br_pppoe_acl --proto 0x8863 -j RETURN
CMD: /bin/ebtables -A br_pppoe_acl --proto 0x8864 -j RETURN
CMD: /bin/ebtables -A br_pppoe_acl -p IPv4 -d 01:00:5e:00:00:00/ff:ff:ff:00:00:00 -j RETURN
CMD: /bin/ebtables -A br_pppoe_acl -p IPv6 -d 33:33:00:00:00:00/ff:ff:00:00:00:00 -j RETURN
CMD: /bin/iptables -N domainblk
CMD: /bin/iptables -t mangle -N mark_for_domainBLK
CMD: /bin/iptables -t mangle -I PREROUTING -j mark_for_domainBLK
CMD: /bin/ip6tables -N domainblk
CMD: /bin/iptables -A domainblk -p udp --dport 53 -m dns --qname example.com --rmatch -j DROP
CMD: /bin/ip6tables -D domainblk -p udp --dport 53 -m dns --qname example.com --rmatch -j DROP
ip6tables: Bad rule (does a matching rule exist in that chain?).
CMD: /bin/ip6tables -A domainblk -p udp --dport 53 -m dns --qname example.com --rmatch -j DROP
CMD: /bin/iptables -A domainblk -p udp --dport 53 -m dns --qname wpad.domain.name --rmatch -j DROP
CMD: /bin/ip6tables -D FORWARD -p udp --dport 53 -m dns --qname wpad.domain.name --rmatch -j DROP
ip6tables: Bad rule (does a matching rule exist in that chain?).
CMD: /bin/ip6tables -A FORWARD -p udp --dport 53 -m dns --qname wpad.domain.name --rmatch -j DROP
CMD: /bin/iptables -A INPUT -j domainblk
CMD: /bin/iptables -A FORWARD -j domainblk
CMD: /bin/iptables -A OUTPUT -j domainblk
CMD: /bin/ip6tables -A INPUT -j domainblk
CMD: /bin/ip6tables -A FORWARD -j domainblk
CMD: /bin/ip6tables -A OUTPUT -j domainblk
CMD: /bin/iptables -N ntpblk
CMD: /bin/iptables -A OUTPUT -j ntpblk
CMD: /bin/iptables -N tr069
CMD: /bin/iptables -A INPUT -j tr069
CMD: /bin/ip6tables -N ipv6_tr069
CMD: /bin/ip6tables -A INPUT -j ipv6_tr069
CMD: /bin/iptables -F tr069
CMD: /bin/ip6tables -F ipv6_tr069
CMD: /bin/iptables -t mangle -F interface_grouping_br0
iptables: No chain/target/match by that name.
CMD: /bin/iptables -t mangle -D PREROUTING -i br0 -j interface_grouping_br0
iptables v1.4.18: Couldn't load target `interface_grouping_br0':No such file or directory
Try `iptables -h' or 'iptables --help' for more information.
CMD: /bin/iptables -t mangle -X interface_grouping_br0
iptables: No chain/target/match by that name.
CMD: /bin/iptables -N inacc
CMD: /bin/iptables -A inacc ! -i br0 -m mark --mark 0x1000 -j ACCEPT
CMD: /bin/ip6tables -N inacc
CMD: /bin/iptables -t mangle -I PREROUTING ! -i br0 -p TCP --dport 7547 -j MARK --set-mark 0x1000
CMD: /bin/iptables -I inacc -i br0 -p TCP --dport 445 -j DROP
CMD: /bin/iptables -I inacc -i br0 -p TCP --dport 139 -j DROP
CMD: /bin/iptables -I inacc -i br0 -p UDP --dport 137 -j DROP
CMD: /bin/iptables -I inacc -i br0 -p TCP --dport 138 -j DROP
CMD: /bin/iptables -I inacc -i br0 -p UDP --dport 69 -j DROP
CMD: /bin/iptables -t mangle -I PREROUTING ! -i br0 -p ICMP --icmp-type echo-request -m limit --limit 1/s -j MARK --set-mark 0x1000
CMD: /bin/iptables -A INPUT -j inacc
CMD: /bin/ip6tables -A INPUT -j inacc
CMD: /bin/iptables -N dhcp_port_filter
CMD: /bin/iptables -A INPUT -j dhcp_port_filter
CMD: /bin/iptables -A INPUT -i lo -j ACCEPT
CMD: /bin/iptables -t mangle -D PREROUTING -j dscp_remark_pre
CMD: /bin/iptables -t mangle -F dscp_remark_pre
CMD: /bin/iptables -t mangle -X dscp_remark_pre
CMD: /bin/ip6tables -t mangle -D PREROUTING -j dscp_remark_pre
CMD: /bin/ip6tables -t mangle -F dscp_remark_pre
CMD: /bin/ip6tables -t mangle -X dscp_remark_pre
CMD: /bin/iptables -t mangle -N dscp_remark_pre
CMD: /bin/iptables -t mangle -A dscp_remark_pre -j CONNMARK2 --restore-mark2 --mask2 0x1fff800000
CMD: /bin/iptables -t mangle -A PREROUTING -j dscp_remark_pre
CMD: /bin/ip6tables -t mangle -N dscp_remark_pre
CMD: /bin/ip6tables -t mangle -A dscp_remark_pre -j CONNMARK2 --restore-mark2 --mask2 0x1fff800000
CMD: /bin/ip6tables -t mangle -A PREROUTING -j dscp_remark_pre
CMD: /bin/iptables -t nat -N address_map_tbl
CMD: /bin/iptables -t nat -A POSTROUTING -j address_map_tbl
CMD: /bin/ip6tables -t nat -N address_map_tbl
CMD: /bin/ip6tables -t nat -A POSTROUTING -j address_map_tbl
CMD: /bin/iptables -t mangle -N voip_remarking
CMD: /bin/iptables -t mangle -A POSTROUTING -p udp -j voip_remarking
CMD: /bin/ip6tables -t mangle -N voip_remarking
CMD: /bin/ip6tables -t mangle -A POSTROUTING -p udp -j voip_remarking
CMD: /bin/iptables -N urlblock
CMD: /bin/iptables -A FORWARD -i br+ -p tcp --tcp-flags SYN,FIN,RST NONE -m length ! --length 0:84 -j urlblock
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -N urlblock
CMD: /bin/ip6tables -A FORWARD -i br+ -p tcp --tcp-flags SYN,FIN,RST NONE -m length ! --length 0:104 -j urlblock
ip6tables: No chain/target/match by that name.
CMD: /bin/iptables -t mangle -N urlblock_pre
CMD: /bin/iptables -t mangle -A PREROUTING -i br+ -p tcp -j urlblock_pre
CMD: /bin/iptables -t mangle -N urlblock_post
CMD: /bin/iptables -t mangle -A POSTROUTING ! -o br+ -p tcp -j urlblock_post
CMD: /bin/ip6tables -t mangle -N urlblock_pre
CMD: /bin/ip6tables -t mangle -A PREROUTING -i br+ -p tcp -j urlblock_pre
CMD: /bin/ip6tables -t mangle -N urlblock_post
CMD: /bin/ip6tables -t mangle -A POSTROUTING ! -o br+ -p tcp -j urlblock_post
CMD: /bin/iptables -F urlblock
CMD: /bin/iptables -t mangle -F urlblock_post
CMD: /bin/iptables -t mangle -F urlblock_pre
CMD: /bin/ip6tables -F urlblock
CMD: /bin/ip6tables -t mangle -F urlblock_post
CMD: /bin/ip6tables -t mangle -F urlblock_pre
CMD: /bin/sh -c /bin/ipset flush urlblk_port_filter
ipset v7.5: The set with the given name does not exist
CMD: /bin/sh -c /bin/ipset destroy urlblk_port_filter
ipset v7.5: The set with the given name does not exist
CMD: /bin/sh -c /bin/ipset create urlblk_port_filter bitmap:port range 1-65535
CMD: /bin/sh -c /bin/ipset flush urlblk_mac_filter
ipset v7.5: The set with the given name does not exist
CMD: /bin/sh -c /bin/ipset destroy urlblk_mac_filter
ipset v7.5: The set with the given name does not exist
CMD: /bin/sh -c /bin/ipset create urlblk_mac_filter hash:mac counters
CMD: /bin/iptables -F urlblock_black
iptables: No chain/target/match by that name.
CMD: /bin/iptables -X urlblock_black
iptables: No chain/target/match by that name.
CMD: /bin/iptables -N urlblock_black
CMD: /bin/iptables -F urlblock_white
iptables: No chain/target/match by that name.
CMD: /bin/iptables -X urlblock_white
iptables: No chain/target/match by that name.
CMD: /bin/iptables -N urlblock_white
CMD: /bin/ip6tables -F urlblock_black
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -X urlblock_black
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -N urlblock_black
CMD: /bin/ip6tables -F urlblock_white
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -X urlblock_white
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -N urlblock_white
CMD: /bin/iptables -F URLBLK_ACT_REJECT_LOG
iptables: No chain/target/match by that name.
CMD: /bin/iptables -X URLBLK_ACT_REJECT_LOG
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -F URLBLK_ACT_REJECT_LOG
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -X URLBLK_ACT_REJECT_LOG
ip6tables: No chain/target/match by that name.
CMD: /bin/iptables -F URLBLK_ACT_REJECT
iptables: No chain/target/match by that name.
CMD: /bin/iptables -X URLBLK_ACT_REJECT
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -F URLBLK_ACT_REJECT
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -X URLBLK_ACT_REJECT
ip6tables: No chain/target/match by that name.
CMD: /bin/iptables -F URLBLK_ACT_ACCEPT_LOG
iptables: No chain/target/match by that name.
CMD: /bin/iptables -X URLBLK_ACT_ACCEPT_LOG
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -F URLBLK_ACT_ACCEPT_LOG
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -X URLBLK_ACT_ACCEPT_LOG
ip6tables: No chain/target/match by that name.
CMD: /bin/iptables -F URLBLK_ACT_ACCEPT
iptables: No chain/target/match by that name.
CMD: /bin/iptables -X URLBLK_ACT_ACCEPT
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -F URLBLK_ACT_ACCEPT
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -X URLBLK_ACT_ACCEPT
ip6tables: No chain/target/match by that name.
CMD: /bin/iptables -N portfw
CMD: /bin/iptables -A FORWARD -j portfw
CMD: /bin/iptables -t nat -N portfw
CMD: /bin/iptables -t nat -A PREROUTING -j portfw
CMD: /bin/iptables -t nat -N portfwPreNatLB
CMD: /bin/iptables -t nat -A PREROUTING -j portfwPreNatLB
CMD: /bin/iptables -t nat -N portfwPostNatLB
CMD: /bin/iptables -t nat -A POSTROUTING -j portfwPostNatLB
CMD: /bin/iptables -F portfw
CMD: /bin/iptables -t nat -F portfw
CMD: /bin/iptables -t nat -F portfwPreNatLB
CMD: /bin/iptables -t nat -F portfwPostNatLB
CMD: /bin/iptables -t nat -A portfw ! -i br0 -m mark --mark 0x1000 -j RETURN
CMD: /bin/iptables -N ipfilter
CMD: /bin/iptables -A FORWARD -j ipfilter
CMD: /bin/iptables -F ipfilter
CMD: /bin/iptables -A ipfilter ! -i br+ ! -o br+ -j DROP
CMD: /bin/iptables -A ipfilter -d 224.0.0.0/4 -j RETURN
CMD: /bin/iptables -A ipfilter -m state --state ESTABLISHED,RELATED -j RETURN
CMD: /bin/ethctl conntrack killall
unknown cmd(21)
CMD: /bin/iptables -t nat -N dmzPreNatLB
CMD: /bin/iptables -t nat -A PREROUTING -j dmzPreNatLB
CMD: /bin/iptables -t nat -N dmzPostNatLB
CMD: /bin/iptables -t nat -A POSTROUTING -j dmzPostNatLB
CMD: /bin/iptables -N dmz
CMD: /bin/iptables -t nat -N dmz
CMD: /bin/iptables -F dmz
CMD: /bin/iptables -t nat -F dmz
CMD: /bin/iptables -t nat -F dmzPreNatLB
CMD: /bin/iptables -t nat -F dmzPostNatLB
CMD: /bin/modprobe -r nf_nat_ftp
CMD: /bin/iptables -A ipfilter -j dmz
CMD: /bin/iptables -t nat -A PREROUTING -j dmz
CMD: /bin/iptables -A ipfilter ! -i br+ -j DROP
CMD: /bin/ebtables -N macfilter_forward
CMD: /bin/ebtables -N macfilter_local_in
CMD: /bin/ebtables -N macfilter_local_out
CMD: /bin/ebtables -t nat -N macfilter_mc
CMD: /bin/ebtables -t nat -P macfilter_mc RETURN
CMD: /bin/ebtables -F macfilter_forward
CMD: /bin/ebtables -F macfilter_local_in
CMD: /bin/ebtables -F macfilter_local_out
CMD: /bin/iptables -F macfilter_forward
iptables: No chain/target/match by that name.
CMD: /bin/ebtables -P macfilter_forward RETURN
CMD: /bin/ebtables -P macfilter_local_in RETURN
CMD: /bin/ebtables -P macfilter_local_out RETURN
/bin/ebtables -P macfilter_forward RETURN
CMD: /bin/echo 2 > /proc/fastbridge
sh: can't create /proc/fastbridge: nonexistent directory
CMD: /bin/sysconf send_unix_sock_message /var/run/systemd.usock do_flow_flush 8
CMD: /bin/ebtables -I INPUT -j macfilter_local_in
CMD: /bin/ebtables -A OUTPUT -j macfilter_local_out
CMD: /bin/ebtables -I FORWARD -j macfilter_forward
CMD: /bin/iptables -A INPUT -m state --state NEW -i br+ -j ACCEPT
CMD: /bin/ip6tables -P INPUT DROP
CMD: /bin/ip6tables -A INPUT -p icmpv6 --icmpv6-type router-solicitation -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p icmpv6 --icmpv6-type router-advertisement -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p icmpv6 --icmpv6-type neighbour-solicitation -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p icmpv6 --icmpv6-type neighbour-advertisement -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p icmpv6 --icmpv6-type 130 -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p icmpv6 -i br+ -j ACCEPT
CMD: /bin/ip6tables -A INPUT -m state --state NEW -i br+ -j ACCEPT
CMD: /bin/ip6tables -A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT
CMD: /bin/ip6tables -A INPUT -p udp --dport 546 -j ACCEPT
CMD: /bin/ip6tables -A INPUT ! -i br0 -p udp --dport 547 -j ACCEPT
CMD: /bin/ip6tables -N ipv6filter
CMD: /bin/ip6tables -A FORWARD -j ipv6filter
Restart IPv6 Filter!
CMD: /bin/ip6tables -F ipv6filter
CMD: /bin/ip6tables -A ipv6filter -m state --state ESTABLISHED,RELATED -j RETURN
voip_set_rg_1p_tag
CMD: /bin/iptables -t mangle -F voip_remarking
CMD: /bin/ip6tables -t mangle -F voip_remarking
CMD: /bin/iptables -N tr247_multicast
CMD: /bin/iptables -I OUTPUT -j tr247_multicast
CMD: /bin/ebtables -N ISOLATION_MAP
CMD: /bin/ebtables -P ISOLATION_MAP RETURN
CMD: /bin/ebtables -I FORWARD -j ISOLATION_MAP
CMD: /bin/ebtables -N ISOLATION_BRPORT
CMD: /bin/ebtables -P ISOLATION_BRPORT DROP
CMD: /bin/ebtables -A ISOLATION_BRPORT -i nas0+ -j RETURN
CMD: /bin/ebtables -A ISOLATION_BRPORT -o nas0+ -j RETURN
CMD: /bin/ebtables -A ISOLATION_BRPORT -d 1:80:c2:0:0:0/ff:ff:ff:0:0:0 -j RETURN
CMD: /bin/ebtables -D ISOLATION_MAP --logical-out br0 -j ISOLATION_BRPORT
Sorry, rule does not exist.
CMD: /bin/sysconf send_unix_sock_message /var/run/systemd.usock do_flow_flush 8
subr_qos_3.c: setupQosRuleMainChain 5506
CMD: /bin/ebtables -t broute -N qos_eb_us_rules
CMD: /bin/ebtables -t broute -P qos_eb_us_rules RETURN
CMD: /bin/ebtables -t broute -A BROUTING -j qos_eb_us_rules
CMD: /bin/ebtables -t nat -N qos_eb_ds_rules
CMD: /bin/ebtables -t nat -P qos_eb_ds_rules RETURN
CMD: /bin/ebtables -t nat -A POSTROUTING -j qos_eb_ds_rules
CMD: /bin/iptables -t mangle -N qos_ip_rules
CMD: /bin/iptables -t mangle -A FORWARD -j qos_ip_rules
CMD: /bin/iptables -t mangle -N pvc_mark
CMD: /bin/iptables -t mangle -A FORWARD -j pvc_mark
CMD: /bin/iptables -t mangle -N qos_rule_output
CMD: /bin/iptables -t mangle -A OUTPUT -j qos_rule_output
CMD: /bin/iptables -t mangle -N pvc_mark_output
CMD: /bin/iptables -t mangle -A OUTPUT -j pvc_mark_output
CMD: /bin/iptables -t mangle -N qos_iptable_action_us_rules
CMD: /bin/iptables -t mangle -A POSTROUTING -j qos_iptable_action_us_rules
CMD: /bin/ip6tables -t mangle -N qos_ip_rules
CMD: /bin/ip6tables -t mangle -A FORWARD -j qos_ip_rules
CMD: /bin/ip6tables -t mangle -N pvc_mark
CMD: /bin/ip6tables -t mangle -A FORWARD -j pvc_mark
CMD: /bin/ip6tables -t mangle -N qos_rule_output
CMD: /bin/ip6tables -t mangle -A OUTPUT -j qos_rule_output
CMD: /bin/ip6tables -t mangle -N pvc_mark_output
CMD: /bin/ip6tables -t mangle -A OUTPUT -j pvc_mark_output
CMD: /bin/ip6tables -t mangle -N qos_iptable_action_us_rules
CMD: /bin/ip6tables -t mangle -A POSTROUTING -j qos_iptable_action_us_rules
CMD: /bin/iptables -t mangle -D FORWARD -j dscp_remark
CMD: /bin/iptables -t mangle -F dscp_remark
CMD: /bin/iptables -t mangle -X dscp_remark
CMD: /bin/iptables -t mangle -F dscp_remark_UP
CMD: /bin/iptables -t mangle -X dscp_remark_UP
CMD: /bin/iptables -t mangle -F dscp_remark_DOWN
CMD: /bin/iptables -t mangle -X dscp_remark_DOWN
CMD: /bin/ip6tables -t mangle -D FORWARD -j dscp_remark
CMD: /bin/ip6tables -t mangle -F dscp_remark
CMD: /bin/ip6tables -t mangle -X dscp_remark
CMD: /bin/ip6tables -t mangle -F dscp_remark_UP
CMD: /bin/ip6tables -t mangle -X dscp_remark_UP
CMD: /bin/ip6tables -t mangle -F dscp_remark_DOWN
CMD: /bin/ip6tables -t mangle -X dscp_remark_DOWN
CMD: /bin/iptables -t mangle -N dscp_remark
CMD: /bin/iptables -t mangle -N dscp_remark_UP
CMD: /bin/iptables -t mangle -N dscp_remark_DOWN
CMD: /bin/ip6tables -t mangle -N dscp_remark
CMD: /bin/ip6tables -t mangle -N dscp_remark_UP
CMD: /bin/ip6tables -t mangle -N dscp_remark_DOWN
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x0/0x1f800000 -j DSCP --set-dscp 0x0
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x0/0x1f800000 -j DSCP --set-dscp 0x0
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x800000/0x1f800000 -j DSCP --set-dscp 0x1
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x800000/0x1f800000 -j DSCP --set-dscp 0x1
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1000000/0x1f800000 -j DSCP --set-dscp 0x2
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1000000/0x1f800000 -j DSCP --set-dscp 0x2
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1800000/0x1f800000 -j DSCP --set-dscp 0x3
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1800000/0x1f800000 -j DSCP --set-dscp 0x3
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x2000000/0x1f800000 -j DSCP --set-dscp 0x4
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x2000000/0x1f800000 -j DSCP --set-dscp 0x4
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x2800000/0x1f800000 -j DSCP --set-dscp 0x5
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x2800000/0x1f800000 -j DSCP --set-dscp 0x5
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x3000000/0x1f800000 -j DSCP --set-dscp 0x6
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x3000000/0x1f800000 -j DSCP --set-dscp 0x6
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x3800000/0x1f800000 -j DSCP --set-dscp 0x7
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x3800000/0x1f800000 -j DSCP --set-dscp 0x7
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x4000000/0x1f800000 -j DSCP --set-dscp 0x8
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x4000000/0x1f800000 -j DSCP --set-dscp 0x8
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x4800000/0x1f800000 -j DSCP --set-dscp 0x9
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x4800000/0x1f800000 -j DSCP --set-dscp 0x9
CMD: /bin/ipt[SMUX] eth0.2.0 carrier on !!!
ables -t mangle br0: port 1(eth0.2.0) entered forwarding state
-A dscp_remark_Ubr0: port 1(eth0.2.0) entered forwarding state
P -m mark2 --marIPv6: ADDRCONF(NETDEV_CHANGE): br0: link becomes ready
k2 0x5000000/0x1f800000 -j DSCP --set-dscp 0xa
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x5000000/0x1f800000 -j DSCP --set-dscp 0xa
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x5800000/0x1f800000 -j DSCP --set-dscp 0xb
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x5800000/0x1f800000 -j DSCP --set-dscp 0xb
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x6000000/0x1f800000 -j DSCP --set-dscp 0xc
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x6000000/0x1f800000 -j DSCP --set-dscp 0xc
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x6800000/0x1f800000 -j DSCP --set-dscp 0xd
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x6800000/0x1f800000 -j DSCP --set-dscp 0xd
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x7000000/0x1f800000 -j DSCP --set-dscp 0xe
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x7000000/0x1f800000 -j DSCP --set-dscp 0xe
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x7800000/0x1f800000 -j DSCP --set-dscp 0xf
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x7800000/0x1f800000 -j DSCP --set-dscp 0xf
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x8000000/0x1f800000 -j DSCP --set-dscp 0x10
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x8000000/0x1f800000 -j DSCP --set-dscp 0x10
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x8800000/0x1f800000 -j DSCP --set-dscp 0x11
4 cpu
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x8800000/0x1f800000 -j DSCP --set-dscp 0x11
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x9000000/0x1f800000 -j DSCP --set-dscp 0x12
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x9000000/0x1f800000 -j DSCP --set-dscp 0x12
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x9800000/0x1f800000 -j DSCP --set-dscp 0x13
4 cpu
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x9800000/0x1f800000 -j DSCP --set-dscp 0x13
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xa000000/0x1f800000 -j DSCP --set-dscp 0x14
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xa000000/0x1f800000 -j DSCP --set-dscp 0x14
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xa800000/0x1f800000 -j DSCP --set-dscp 0x15
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xa800000/0x1f800000 -j DSCP --set-dscp 0x15
4 cpu
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xb000000/0x1f800000 -j DSCP --set-dscp 0x16
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xb000000/0x1f800000 -j DSCP --set-dscp 0x16
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xb800000/0x1f800000 -j DSCP --set-dscp 0x17
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xb800000/0x1f800000 -j DSCP --set-dscp 0x17
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xc000000/0x1f800000 -j DSCP --set-dscp 0x18
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xc000000/0x1f800000 -j DSCP --set-dscp 0x18
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xc800000/0x1f800000 -j DSCP --set-dscp 0x19
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xc800000/0x1f800000 -j DSCP --set-dscp 0x19
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xd000000/0x1f800000 -j DSCP --set-dscp 0x1a
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xd000000/0x1f800000 -j DSCP --set-dscp 0x1a
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xd800000/0x1f800000 -j DSCP --set-dscp 0x1b
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xd800000/0x1f800000 -j DSCP --set-dscp 0x1b
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xe000000/0x1f800000 -j DSCP --set-dscp 0x1c
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xe000000/0x1f800000 -j DSCP --set-dscp 0x1c
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xe800000/0x1f800000 -j DSCP --set-dscp 0x1d
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xe800000/0x1f800000 -j DSCP --set-dscp 0x1d
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xf000000/0x1f800000 -j DSCP --set-dscp 0x1e
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xf000000/0x1f800000 -j DSCP --set-dscp 0x1e
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xf800000/0x1f800000 -j DSCP --set-dscp 0x1f
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0xf800000/0x1f800000 -j DSCP --set-dscp 0x1f
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x10000000/0x1f800000 -j DSCP --set-dscp 0x20
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x10000000/0x1f800000 -j DSCP --set-dscp 0x20
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x10800000/0x1f800000 -j DSCP --set-dscp 0x21
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x10800000/0x1f800000 -j DSCP --set-dscp 0x21
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x11000000/0x1f800000 -j DSCP --set-dscp 0x22
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x11000000/0x1f800000 -j DSCP --set-dscp 0x22
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x11800000/0x1f800000 -j DSCP --set-dscp 0x23
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x11800000/0x1f800000 -j DSCP --set-dscp 0x23
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x12000000/0x1f800000 -j DSCP --set-dscp 0x24
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x12000000/0x1f800000 -j DSCP --set-dscp 0x24
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x12800000/0x1f800000 -j DSCP --set-dscp 0x25
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x12800000/0x1f800000 -j DSCP --set-dscp 0x25
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x13000000/0x1f800000 -j DSCP --set-dscp 0x26
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x13000000/0x1f800000 -j DSCP --set-dscp 0x26
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x13800000/0x1f800000 -j DSCP --set-dscp 0x27
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x13800000/0x1f800000 -j DSCP --set-dscp 0x27
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x14000000/0x1f800000 -j DSCP --set-dscp 0x28
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x14000000/0x1f800000 -j DSCP --set-dscp 0x28
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x14800000/0x1f800000 -j DSCP --set-dscp 0x29
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x14800000/0x1f800000 -j DSCP --set-dscp 0x29
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x15000000/0x1f800000 -j DSCP --set-dscp 0x2a
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x15000000/0x1f800000 -j DSCP --set-dscp 0x2a
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x15800000/0x1f800000 -j DSCP --set-dscp 0x2b
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x15800000/0x1f800000 -j DSCP --set-dscp 0x2b
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x16000000/0x1f800000 -j DSCP --set-dscp 0x2c
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x16000000/0x1f800000 -j DSCP --set-dscp 0x2c
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x16800000/0x1f800000 -j DSCP --set-dscp 0x2d
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x16800000/0x1f800000 -j DSCP --set-dscp 0x2d
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x17000000/0x1f800000 -j DSCP --set-dscp 0x2e
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x17000000/0x1f800000 -j DSCP --set-dscp 0x2e
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x17800000/0x1f800000 -j DSCP --set-dscp 0x2f
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x17800000/0x1f800000 -j DSCP --set-dscp 0x2f
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x18000000/0x1f800000 -j DSCP --set-dscp 0x30
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x18000000/0x1f800000 -j DSCP --set-dscp 0x30
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x18800000/0x1f800000 -j DSCP --set-dscp 0x31
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x18800000/0x1f800000 -j DSCP --set-dscp 0x31
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x19000000/0x1f800000 -j DSCP --set-dscp 0x32
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x19000000/0x1f800000 -j DSCP --set-dscp 0x32
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x19800000/0x1f800000 -j DSCP --set-dscp 0x33
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x19800000/0x1f800000 -j DSCP --set-dscp 0x33
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1a000000/0x1f800000 -j DSCP --set-dscp 0x34
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1a000000/0x1f800000 -j DSCP --set-dscp 0x34
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1a800000/0x1f800000 -j DSCP --set-dscp 0x35
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1a800000/0x1f800000 -j DSCP --set-dscp 0x35
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1b000000/0x1f800000 -j DSCP --set-dscp 0x36
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1b000000/0x1f800000 -j DSCP --set-dscp 0x36
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1b800000/0x1f800000 -j DSCP --set-dscp 0x37
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1b800000/0x1f800000 -j DSCP --set-dscp 0x37
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1c000000/0x1f800000 -j DSCP --set-dscp 0x38
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1c000000/0x1f800000 -j DSCP --set-dscp 0x38
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1c800000/0x1f800000 -j DSCP --set-dscp 0x39
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1c800000/0x1f800000 -j DSCP --set-dscp 0x39
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1d000000/0x1f800000 -j DSCP --set-dscp 0x3a
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1d000000/0x1f800000 -j DSCP --set-dscp 0x3a
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 -br0: port 1(eth0.2.0) entered forwarding state
-mark2 0x1d800000/0x1f800000 -j DSCP --set-dscp 0x3b
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1d800000/0x1f800000 -j DSCP --set-dscp 0x3b
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1e000000/0x1f800000 -j DSCP --set-dscp 0x3c
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1e000000/0x1f800000 -j DSCP --set-dscp 0x3c
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1e800000/0x1f800000 -j DSCP --set-dscp 0x3d
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1e800000/0x1f800000 -j DSCP --set-dscp 0x3d
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1f000000/0x1f800000 -j DSCP --set-dscp 0x3e
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1f000000/0x1f800000 -j DSCP --set-dscp 0x3e
CMD: /bin/iptables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1f800000/0x1f800000 -j DSCP --set-dscp 0x3f
CMD: /bin/ip6tables -t mangle -A dscp_remark_UP -m mark2 --mark2 0x1f800000/0x1f800000 -j DSCP --set-dscp 0x3f
CMD: /bin/iptables -t mangle -A dscp_remark ! -o br+ -m mark2 --mark2 0x20000000/0x20000000 -j dscp_remark_UP
CMD: /bin/ip6tables -t mangle -A dscp_remark ! -o br+ -m mark2 --mark2 0x20000000/0x20000000 -j dscp_remark_UP
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x0/0xfc0000000 -j DSCP --set-dscp 0x0
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x0/0xfc0000000 -j DSCP --set-dscp 0x0
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x40000000/0xfc0000000 -j DSCP --set-dscp 0x1
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x40000000/0xfc0000000 -j DSCP --set-dscp 0x1
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x80000000/0xfc0000000 -j DSCP --set-dscp 0x2
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x80000000/0xfc0000000 -j DSCP --set-dscp 0x2
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xc0000000/0xfc0000000 -j DSCP --set-dscp 0x3
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xc0000000/0xfc0000000 -j DSCP --set-dscp 0x3
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x100000000/0xfc0000000 -j DSCP --set-dscp 0x4
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x100000000/0xfc0000000 -j DSCP --set-dscp 0x4
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x140000000/0xfc0000000 -j DSCP --set-dscp 0x5
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x140000000/0xfc0000000 -j DSCP --set-dscp 0x5
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x180000000/0xfc0000000 -j DSCP --set-dscp 0x6
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x180000000/0xfc0000000 -j DSCP --set-dscp 0x6
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x1c0000000/0xfc0000000 -j DSCP --set-dscp 0x7
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x1c0000000/0xfc0000000 -j DSCP --set-dscp 0x7
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x200000000/0xfc0000000 -j DSCP --set-dscp 0x8
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x200000000/0xfc0000000 -j DSCP --set-dscp 0x8
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x240000000/0xfc0000000 -j DSCP --set-dscp 0x9
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x240000000/0xfc0000000 -j DSCP --set-dscp 0x9
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x280000000/0xfc0000000 -j DSCP --set-dscp 0xa
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x280000000/0xfc0000000 -j DSCP --set-dscp 0xa
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x2c0000000/0xfc0000000 -j DSCP --set-dscp 0xb
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x2c0000000/0xfc0000000 -j DSCP --set-dscp 0xb
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x300000000/0xfc0000000 -j DSCP --set-dscp 0xc
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x300000000/0xfc0000000 -j DSCP --set-dscp 0xc
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x340000000/0xfc0000000 -j DSCP --set-dscp 0xd
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x340000000/0xfc0000000 -j DSCP --set-dscp 0xd
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x380000000/0xfc0000000 -j DSCP --set-dscp 0xe
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x380000000/0xfc0000000 -j DSCP --set-dscp 0xe
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x3c0000000/0xfc0000000 -j DSCP --set-dscp 0xf
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x3c0000000/0xfc0000000 -j DSCP --set-dscp 0xf
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x400000000/0xfc0000000 -j DSCP --set-dscp 0x10
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x400000000/0xfc0000000 -j DSCP --set-dscp 0x10
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x440000000/0xfc0000000 -j DSCP --set-dscp 0x11
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x440000000/0xfc0000000 -j DSCP --set-dscp 0x11
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x480000000/0xfc0000000 -j DSCP --set-dscp 0x12
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x480000000/0xfc0000000 -j DSCP --set-dscp 0x12
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x4c0000000/0xfc0000000 -j DSCP --set-dscp 0x13
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x4c0000000/0xfc0000000 -j DSCP --set-dscp 0x13
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x500000000/0xfc0000000 -j DSCP --set-dscp 0x14
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x500000000/0xfc0000000 -j DSCP --set-dscp 0x14
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x540000000/0xfc0000000 -j DSCP --set-dscp 0x15
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x540000000/0xfc0000000 -j DSCP --set-dscp 0x15
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x580000000/0xfc0000000 -j DSCP --set-dscp 0x16
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x580000000/0xfc0000000 -j DSCP --set-dscp 0x16
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x5c0000000/0xfc0000000 -j DSCP --set-dscp 0x17
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x5c0000000/0xfc0000000 -j DSCP --set-dscp 0x17
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x600000000/0xfc0000000 -j DSCP --set-dscp 0x18
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x600000000/0xfc0000000 -j DSCP --set-dscp 0x18
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x640000000/0xfc0000000 -j DSCP --set-dscp 0x19
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x640000000/0xfc0000000 -j DSCP --set-dscp 0x19
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x680000000/0xfc0000000 -j DSCP --set-dscp 0x1a
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x680000000/0xfc0000000 -j DSCP --set-dscp 0x1a
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x6c0000000/0xfc0000000 -j DSCP --set-dscp 0x1b
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x6c0000000/0xfc0000000 -j DSCP --set-dscp 0x1b
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x700000000/0xfc0000000 -j DSCP --set-dscp 0x1c
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x700000000/0xfc0000000 -j DSCP --set-dscp 0x1c
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x740000000/0xfc0000000 -j DSCP --set-dscp 0x1d
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x740000000/0xfc0000000 -j DSCP --set-dscp 0x1d
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x780000000/0xfc0000000 -j DSCP --set-dscp 0x1e
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x780000000/0xfc0000000 -j DSCP --set-dscp 0x1e
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x7c0000000/0xfc0000000 -j DSCP --set-dscp 0x1f
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x7c0000000/0xfc0000000 -j DSCP --set-dscp 0x1f
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x800000000/0xfc0000000 -j DSCP --set-dscp 0x20
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x800000000/0xfc0000000 -j DSCP --set-dscp 0x20
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x840000000/0xfc0000000 -j DSCP --set-dscp 0x21
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x840000000/0xfc0000000 -j DSCP --set-dscp 0x21
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x880000000/0xfc0000000 -j DSCP --set-dscp 0x22
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x880000000/0xfc0000000 -j DSCP --set-dscp 0x22
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x8c0000000/0xfc0000000 -j DSCP --set-dscp 0x23
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x8c0000000/0xfc0000000 -j DSCP --set-dscp 0x23
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x900000000/0xfc0000000 -j DSCP --set-dscp 0x24
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x900000000/0xfc0000000 -j DSCP --set-dscp 0x24
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x940000000/0xfc0000000 -j DSCP --set-dscp 0x25
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x940000000/0xfc0000000 -j DSCP --set-dscp 0x25
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x980000000/0xfc0000000 -j DSCP --set-dscp 0x26
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x980000000/0xfc0000000 -j DSCP --set-dscp 0x26
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x9c0000000/0xfc0000000 -j DSCP --set-dscp 0x27
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0x9c0000000/0xfc0000000 -j DSCP --set-dscp 0x27
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xa00000000/0xfc0000000 -j DSCP --set-dscp 0x28
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xa00000000/0xfc0000000 -j DSCP --set-dscp 0x28
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xa40000000/0xfc0000000 -j DSCP --set-dscp 0x29
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xa40000000/0xfc0000000 -j DSCP --set-dscp 0x29
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xa80000000/0xfc0000000 -j DSCP --set-dscp 0x2a
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xa80000000/0xfc0000000 -j DSCP --set-dscp 0x2a
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xac0000000/0xfc0000000 -j DSCP --set-dscp 0x2b
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xac0000000/0xfc0000000 -j DSCP --set-dscp 0x2b
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xb00000000/0xfc0000000 -j DSCP --set-dscp 0x2c
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xb00000000/0xfc0000000 -j DSCP --set-dscp 0x2c
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xb40000000/0xfc0000000 -j DSCP --set-dscp 0x2d
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xb40000000/0xfc0000000 -j DSCP --set-dscp 0x2d
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xb80000000/0xfc0000000 -j DSCP --set-dscp 0x2e
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xb80000000/0xfc0000000 -j DSCP --set-dscp 0x2e
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xbc0000000/0xfc0000000 -j DSCP --set-dscp 0x2f
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xbc0000000/0xfc0000000 -j DSCP --set-dscp 0x2f
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xc00000000/0xfc0000000 -j DSCP --set-dscp 0x30
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xc00000000/0xfc0000000 -j DSCP --set-dscp 0x30
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xc40000000/0xfc0000000 -j DSCP --set-dscp 0x31
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xc40000000/0xfc0000000 -j DSCP --set-dscp 0x31
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xc80000000/0xfc0000000 -j DSCP --set-dscp 0x32
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xc80000000/0xfc0000000 -j DSCP --set-dscp 0x32
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xcc0000000/0xfc0000000 -j DSCP --set-dscp 0x33
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xcc0000000/0xfc0000000 -j DSCP --set-dscp 0x33
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xd00000000/0xfc0000000 -j DSCP --set-dscp 0x34
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xd00000000/0xfc0000000 -j DSCP --set-dscp 0x34
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xd40000000/0xfc0000000 -j DSCP --set-dscp 0x35
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xd40000000/0xfc0000000 -j DSCP --set-dscp 0x35
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xd80000000/0xfc0000000 -j DSCP --set-dsc[SMUX] eth0.2.0 carrier off !!!
p 0x36
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xd80000000/0xfc0000000 -j DSCP --set-dscp 0x36
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xdc0000000/0xfc0000000 -j DSCP --set-dscp 0x37
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xdc0000000/0xfc0000000 -j DSCP --set-dscp 0x37
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xe00000000/0xfc0000000 -j DSCP --set-dscp 0x38
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xe00000000/0xfc0000000 -j DSCP --set-dscp 0x38
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xe40000000/0xfc0000000 -j DSCP --set-dscp 0x39
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xe40000000/0xfc0000000 -j DSCP --set-dscp 0x39
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xe80000000/0xfc0000000 -j DSCP --set-dscp 0x3a
launch /bin/VoIP_maserati at 20
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xe80000000/0xfc0000000 -j DSCP --set-dscp 0x3a
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xec0000000/0xfc0000000 -j DSCP --set-dscp 0x3b
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xec0000000/0xfc0000000 -j DSCP --set-dscp 0x3b
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xf00000000/0xfc0000000 -j DSCP --set-dscp 0x3c
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xf00000000/0xfc0000000 -j DSCP --set-dscp 0x3c
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xf40000000/0xfc0000000 -j DSCP --set-dscp 0x3d
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xf40000000/0xfc0000000 -j DSCP --set-dscp 0x3d
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xf80000000/0xfc0000000 -j DSCP --set-dscp 0x3e
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xf80000000/0xfc0000000 -j DSCP --set-dscp 0x3e
CMD: /bin/iptables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xfc0000000/0xfc0000000 -j DSCP --set-dscp 0x3f
voip flash client share size = 9384
waiting voip flash server init...)
voip omci line state share size = 1152
codec_suporrt_list 1279
[VOIP disable DEBUG]
watch dog pipe mode
CMD: /bin/ip6tables -t mangle -A dscp_remark_DOWN -m mark2 --mark2 0xfc0000000/0xfc0000000 -j DSCP --set-dscp 0x3f
CMD: /bin/iptables -t mangle -A dscp_remark -o br+ -m mark2 --mark2 0x1000000000/0x1000000000 -j dscp_remark_DOWN
CMD: /bin/ip6tables -t mangle -A dscp_remark -o br+ -m mark2 --mark2 0x1000000000/0x1000000000 -j dscp_remark_DOWN
CMD: /bin/iptables -t mangle -A dscp_remark -j CONNMARK2 --save-mark2 --mask2 0x1fff800000
CMD: /bin/ip6tables -t mangle -A dscp_remark -j CONNMARK2 --save-mark2 --mask2 0x1fff800000
CMD: /bin/iptables -t mangle -A FORWARD -j dscp_remark
CMD: /bin/ip6tables -t mangle -A FORWARD -j dscp_remark
VoIP RCM LOG is ENABLED!!
Reset register status...
CMD: /bin/sh -c echo 1 > /sys/devices/virtual/net/br0/bridge/multicast_router
CMD: /bin/sh -c echo 1 > /sys/class/net/br0/bridge/multicast_snooping
CMD: /bin/sh -c echo 2 > sys/devices/virtual/net/br0/bridge/multicast_router
[rtk_fc_multicast_ignoregroup_trap_rule@3942] acl_set =0, skip set acl
CMD: /bin/sh -c echo 1 > /sys/class/net/br0/bridge/multicast_snooping
CMD: /bin/sh -c echo 2 > sys/devices/virtual/net/br0/bridge/multicast_router
CMD: /bin/iwpriv wlan0 set_mib mp_specific=0
CMD: /bin/iwpriv wlan0 set_mib regdomain=1
CMD: /bin/iwpriv wlan0 set_mib manual_dfs_regdomain=1
CMD: /bin/iwpriv wlan0 set_mib total_max_sta=0
CMD: /bin/iwpriv wlan0 set_mib led_type=7
CMD: /bin/iwpriv wlan0 set_mib ssid=YOTC-*redacted*-5G
CMD: /bin/iwpriv wlan0 set_mib opmode=16
CMD: /bin/iwpriv wlan0 set_mib phyBandSelect=2
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSICCK_A=0000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSICCK_B=0000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSIHT40_1S_A=0000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSIHT40_1S_B=0000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib tssi_enable=1
CMD: /bin/iwpriv wlan0 set_mib ther=32
CMD: /bin/iwpriv wlan0 set_mib thermal1=32
CMD: /bin/iwpriv wlan0 set_mib thermal2=33
CMD: /bin/iwpriv wlan0 set_mib xcap=63
CMD: /bin/iwpriv wlan0 set_mib countrycode=1
CMD: /bin/iwpriv wlan0 set_mib countrystr=US
CMD: /bin/iwpriv wlan0 set_mib pwrlevel5GHT40_1S_A=0000000000000000000000000000000000000000000000000000000000000000000000636363636262626261616161606060605f5f5f5f5e5e5e5e5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5d5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5c5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b00000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel5GHT40_1S_B=00000000000000000000000000000000000000000000000000000000000000000000005e5e5e5e5e5d5d5d5d5d5c5c5c5c5c5c5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5b5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5a5959595959595959595959595959595959595959595959595959595959595959595959595959595959595959595959595900000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_A=000000000000000000000000000000000000000000000000000000000000000000000007070707070707070707070808080808080808080808080a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a030303030303030303030303030303030303030303030303030303030303030303030303030303030303030303030303030303020202020202020202020202020202020202020200000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_B=00000000000000000000000000000000000000000000000000000000000000000000000c0c0c0c0c0c0c0c0c0c0c0a0a0a0a0a0a0a0a0a0a0a0a080808080808080808080808080808080808080808080808080808080808080808080808080808080808080808080808040404040404040404040404040404040404040404040404040404040404040404040404040404040404040404040404040404030303030303030303030303030303030303030300000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_A=000000000000000000000000000000000000000000000000000000000000000000000007070707070707070707070808080808080808080808080a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a0a030303030303030303030303030303030303030303030303030303030303030303030303030303030303030303030303030303020202020202020202020202020202020202020200000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_B=00000000000000000000000000000000000000000000000000000000000000000000000c0c0c0c0c0c0c0c0c0c0c0a0a0a0a0a0a0a0a0a0a0a0a080808080808080808080808080808080808080808080808080808080808080808080808080808080808080808080808040404040404040404040404040404040404040404040404040404040404040404040404040404040404040404040404040404030303030303030303030303030303030303030300000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_C=00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib pwrlevel_TSSI5GHT40_1S_D=00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
CMD: /bin/iwpriv wlan0 set_mib is_5g_pdk_patha_ok=0
Interface doesn't accept private ioctl...
89F1: Operation not permitted
CMD: /bin/iwpriv wlan0 set_mib is_5g_pdk_pathb_ok=0
Interface doesn't accept private ioctl...
89F1: Operation not permitted
CMD: /bin/iwpriv wlan0 set_mib bcnint=100
CMD: /bin/iwpriv wlan0 set_mib channel=36
CMD: /bin/iwpriv wlan0 set_mib autoch_timeout=0
CMD: /bin/iwpriv wlan0 set_mib autoch_diff_pkt=0
CMD: /bin/iwpriv wlan0 set_mib autoch_3664157_enable=0
CMD: /bin/iwpriv wlan0 set_mib basicrates=496
CMD: /bin/iwpriv wlan0 set_mib oprates=4080
CMD: /bin/iwpriv wlan0 set_mib autorate=1
CMD: /bin/iwpriv wlan0 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan0 set_mib fragthres=2346
CMD: /bin/iwpriv wlan0 set_mib dtimperiod=1
CMD: /bin/iwpriv wlan0 set_mib expired_time=30000
CMD: /bin/iwpriv wlan0 set_mib preamble=0
CMD: /bin/iwpriv wlan0 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan0 set_mib txbf=1
CMD: /bin/iwpriv wlan0 set_mib txbf_mu=1
CMD: /bin/iwpriv wlan0 set_mib mc2u_disable=0
CMD: /bin/iwpriv wlan0 set_mib aclnum=0
CMD: /bin/iwpriv wlan0 set_mib aclmode=0
CMD: /bin/iwpriv wlan0 set_mib stactrl_enable=0
CMD: /bin/iwpriv wlan0 set_mib stactrl_prefer_band=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan0 set_mib wsc_enable=0
CMD: /bin/iwpriv wlan0 set_mib authtype=2
CMD: /bin/iwpriv wlan0 set_mib wpa_cipher=0
CMD: /bin/iwpriv wlan0 set_mib wpa2_cipher=8
CMD: /bin/iwpriv wlan0 set_mib psk_enable=2
CMD: /bin/iwpriv wlan0 set_mib passphrase=782ump26
CMD: /bin/iwpriv wlan0 set_mib gk_rekey=86400
CMD: /bin/iwpriv wlan0 set_mib dot11IEEE80211W=1
CMD: /bin/iwpriv wlan0 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan0 set_mib encmode=2
CMD: /bin/iwpriv wlan0 set_mib rm_activated=0
CMD: /bin/iwpriv wlan0 set_mib BssTransEnable=0
CMD: /bin/iwpriv wlan0 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan0 set_mib a4_enable=0
CMD: /bin/iwpriv wlan0 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan0 set_mib 802_1x=1
CMD: /bin/iwpriv wlan0 set_mib band=76
CMD: /bin/iwpriv wlan0 set_mib deny_legacy=12
CMD: /bin/iwpriv wlan0 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan0 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan0 set_mib cts2self=1
CMD: /bin/iwpriv wlan0 set_mib disable_protection=1
CMD: /bin/iwpriv wlan0 set_mib block_relay=0
CMD: /bin/iwpriv wlan0 set_mib qos_enable=1
CMD: /bin/iwpriv wlan0 set_mib apsd_enable=0
CMD: /bin/iwpriv wlan0 set_mib use40M=2
CMD: /bin/iwpriv wlan0 set_mib 2ndchoffset=1
!!! adjust 5G 2ndoffset for 8812 !!!
CMD: /bin/iwpriv wlan0 set_mib 2ndchoffset=2
CMD: /bin/iwpriv wlan0 set_mib coexist=0
CMD: /bin/iwpriv wlan0 set_mib shortGI20M=0
CMD: /bin/iwpriv wlan0 set_mib shortGI40M=0
CMD: /bin/iwpriv wlan0 set_mib shortGI80M=0
CMD: /bin/iwpriv wlan0 set_mib ampdu=1
CMD: /bin/iwpriv wlan0 set_mib amsdu=2
CMD: /bin/iwpriv wlan0 set_mib vap_enable=1
CMD: /bin/iwpriv wlbr0: port 1(eth0.2.0) entered disabled state
an0 set_mib disable_DFS=0
CMD: /bin/iwpriv wlan0 set_mib stdevice wlan0 entered promiscuous mode
bc=1
CMD: /bin/iwpriv wlan0 set_mib ldpc=1
CMD: /bin/iwpriv wlan0 set_mib tdls_prohibichip_version=0x2001,WlanSupportAbility = 0x3
ted=0
CMD: /bin/iwpriv wlan0 set_mib tdls_cs_prohibited=0
CMD: /bin/iwpriv wlan0 set_mib gbwcmode=0
CMD: /bin/iwpriv wlan0 set_mib gbwcthrd_tx=0
CMD: /bin/iwpriv wlan0 set_mib gbwcthrd_rx=0
CMD: /bin/brctl addif br0 wlan0
CMD: /bin/iwpriv wlan0 set_mib func_off=0
CMD: /bin/ifconfig wlan0 up
[wlan0] SAE INIT...
SAE: pwd-seed - hexdump(len=32): 24 60 da 5f 6d c2 66 67 89 f9 f3 08 9e 4b 65 7e 7e df 1c e5 30 41 f6 35 26 e9 05 be 40 75 4c 33
SAE: pwd-value (u1 P1) - hexdump(len=48): 77 9e 46 08 43 b1 23 2e 82 23 35 80 5b a7 58 e4 c8 66 1f 1f 32 bf 76 45 52 dc 19 d7 bb 8d 3e 5e 88 53 cc be 71 ca 65 58 fa 4d 58 70 88 7c d8 e4
SAE: u1 - hexdump(len=32): 68 be 0e cc 54 f4 e7 e0 97 8c b0 a0 f5 b8 e5 b0 99 c5 ca 6b 2d 19 ce 8f c0 21 b1 1e ee a9 21 40
SSWU: m - hexdump(len=32): 47 62 bb e8 78 80 5f e7 79 77 2e 48 0b 7e 47 c5 6e 5e 0a 22 62 9f 5a b9 ad 80 d9 d5 3e 76 7e f7
SSWU: t - hexdump(len=32): 01 0a 09 79 76 43 e6 3b 1f e6 77 fc 1c aa 3b 4c 9f 5b 2e e1 f1 ed ec b8 dc 74 0e 9d 17 24 24 40
SSWU: a - hexdump(len=32): ff ff ff ff 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 00 ff ff ff ff ff ff ff ff ff ff ff fc
SSWU: x1a = b / (z * a) - hexdump(len=32): a5 28 bd 86 96 bd af 99 6c 65 b9 82 d9 49 59 d3 14 6f e6 a0 20 69 30 90 bd ba 13 13 23 75 f2 24
SSWU: x1b = (-b/a) * (1 + t) - hexdump(len=32): 74 81 86 b9 07 ae 68 a6 e3 c4 05 f6 9a 41 73 5a 20 7f 14 cc 82 df ae e0 fd a4 bc 48 0a 17 40 d0
SSWU: x1 = CSEL(l, x1a, x1b) - hexdump(len=32): 74 81 86 b9 07 ae 68 a6 e3 c4 05 f6 9a 41 73 5a 20 7f 14 cc 82 df ae e0 fd a4 bc 48 0a 17 40 d0
SSWU: gx1 = x1^3 + a * x1 + b - hexdump(len=32): fc 57 11 5d 59 cc 22 26 42 8e f9 b5 b6 25 3c f4 a4 12 53 8b 79 be b6 bd 41 f7 a9 15 c0 02 ec 4a
SSWU: x2 = z * u^2 * x1 - hexdump(len=32): 56 1a 78 4f f5 50 8a fe 54 2a 89 55 36 70 66 d6 c4 30 4f 5d e6 83 83 c5 b1 08 18 d2 df cb 30 e9
SSWU: gx2 = x2^3 + a * x2 + b - hexdump(len=32): 08 5d 4a 91 52 7c 6d ae c9 f1 20 59 6f a9 f1 04 8d 33 e1 55 2a a8 70 ab 07 64 40 66 14 9c 1f db
SSWU: gx1^((p-1)/2) modulo p: X - hexdump(len=1): 01
SSWU: v = CSEL(l, gx1, gx2) - hexdump(len=32): fc 57 11 5d 59 cc 22 26 42 8e f9 b5 b6 25 3c f4 a4 12 53 8b 79 be b6 bd 41 f7 a9 15 c0 02 ec 4a
SSWU: x = CSEL(l, x1, x2) - hexdump(len=32): 74 81 86 b9 07 ae 68 a6 e3 c4 05 f6 9a 41 73 5a 20 7f 14 cc 82 df ae e0 fd a4 bc 48 0a 17 40 d0
SSWU: y = sqrt(v) - hexdump(len=32): 03 19 29 4d 78 3a ae 0b 34 fa 73 10 cc 5f 55 da 78 10 35 79 0e 97 b1 e7 d5 dc cb 5a 81 11 8b df
SSWU: p - y - hexdump(len=32): fc e6 d6 b1 87 c5 51 f5 cb 05 8c ef 33 a0 aa 25 87 ef ca 87 f1 68 4e 18 2a 23 34 a5 7e ee 74 20
SSWU: P.x - hexdump(len=32): 74 81 86 b9 07 ae 68 a6 e3 c4 05 f6 9a 41 73 5a 20 7f 14 cc 82 df ae e0 fd a4 bc 48 0a 17 40 d0
SSWU: P.y - hexdump(len=32): fc e6 d6 b1 87 c5 51 f5 cb 05 8c ef 33 a0 aa 25 87 ef ca 87 f1 68 4e 18 2a 23 34 a5 7e ee 74 20
SAE: pwd-value (u2 P2) - hexdump(len=48): a9 be 4c bd a8 b6 e1 b9 c0 e3 20 07 13 3e ed f7 09 2a e4 c0 e4 79 15 8f 58 08 fc 02 5a f4 ee 3f 84 83 d1 db 60 8b a8 3f e8 88 38 39 03 04 7a b9
SAE: u2 - hexdump(len=32): c9 f4 a4 3f 10 57 07 92 05 93 cd 8a f1 5a ec 80 03 de 5d 5a b3 00 d6 b7 52 22 39 f9 2d 68 3b f8
SSWU: m - hexdump(len=32): 16 c6 ac 2e 9b f9 61 ca ad f5 d3 4d 29 26 2a 1f 6f 14 46 8e fd da cb f6 15 3d 3c 8d ff 55 17 76
SSWU: t - hexdump(len=32): 86 83 ec 69 0c 55 db 67 7e 2a 8f 6c ae e8 ec 2b 72 38 02 87 1d 45 48 f2 e3 ac 01 13 2f 41 23 15
SSWU: a - hexdump(len=32): ff ff ff ff 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 00 ff ff ff ff ff ff ff ff ff ff ff fc
SSWU: x1a = b / (z * a) - hexdump(len=32): a5 28 bd 86 96 bd af 99 6c 65 b9 82 d9 49 59 d3 14 6f e6 a0 20 69 30 90 bd ba 13 13 23 75 f2 24
SSWU: x1b = (-b/a) * (1 + t) - hexdump(len=32): 5e a3 86 ec 80 be 2d e7 95 7b 55 ea b8 dc 96 80 69 e4 d7 0d c6 1d c4 34 8f 57 d6 86 c6 4a 00 59
SSWU: x1 = CSEL(l, x1a, x1b) - hexdump(len=32): 5e a3 86 ec 80 be 2d e7 95 7b 55 ea b8 dc 96 80 69 e4 d7 0d c6 1d c4 34 8f 57 d6 86 c6 4a 00 59
SSWU: gx1 = x1^3 + a * x1 + b - hexdump(len=32): 64 dc 6e ca 11 20 f6 f3 5d d5 c3 c5 1c 61 c9 ef a2 be c0 66 80 1b 79 c0 ff 51 36 d0 43 e3 e1 2b
SSWU: x2 = z * u^2 * x1 - hexdump(len=32): 2c b1 5f d5 a8 e8 aa 00 4c df f5 31 7b 9b 12 e2 cd 68 dd e3 43 b2 19 e7 0f d8 1e 36 88 7a 43 7e
SSWU: gx2 = x2^3 + a * x2 + b - hexdump(len=32): 36 27 a3 05 e1 98 e6 d0 02 20 28 ec c6 98 6a f4 83 db 0e e7 a2 98 a6 ec 4c cd ae f1 02 7c 13 38
SSWU: gx1^((p-1)/2) modulo p: X - hexdump(len=32): ff ff ff ff 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 00 ff ff ff ff ff ff ff ff ff ff ff fe
SSWU: v = CSEL(l, gx1, gx2) - hexdump(len=32): 36 27 a3 05 e1 98 e6 d0 02 20 28 ec c6 98 6a f4 83 db 0e e7 a2 98 a6 ec 4c cd ae f1 02 7c 13 38
SSWU: x = CSEL(l, x1, x2) - hexdump(len=32): 2c b1 5f d5 a8 e8 aa 00 4c df f5 31 7b 9b 12 e2 cd 68 dd e3 43 b2 19 e7 0f d8 1e 36 88 7a 43 7e
SSWU: y = sqrt(v) - hexdump(len=32): b3 ec 71 ba 5d c8 91 72 f2 fa ea 31 c6 d3 90 30 a3 d9 34 e6 96 8e 0d c7 4f 72 92 40 ca 99 ab 4c
SSWU: p - y - hexdump(len=32): 4c 13 8e 44 a2 37 6e 8e 0d 05 15 ce 39 2c 6f cf 5c 26 cb 1a 69 71 f2 38 b0 8d 6d bf 35 66 54 b3
SSWU: P.x - hexdump(len=32): 2c b1 5f d5 a8 e8 aa 00 4c df f5 31 7b 9b 12 e2 cd 68 dd e3 43 b2 19 e7 0f d8 1e 36 88 7a 43 7e
SSWU: P.y - hexdump(len=32): b3 ec 71 ba 5d c8 91 72 f2 fa ea 31 c6 d3 90 30 a3 d9 34 e6 96 8e 0d c7 4f 72 92 40 ca 99 ab 4c
eric-8822 [ODM_software_init][15562]
clock 25MHz
[TRACE]pre_init_system_cfg_8812f ===>
[TRACE]set_hw_value_88xx ===>
[TRACE]set_hw_value_88xx <===
[TRACE]pre_init_system_cfg_8812f <===
[TRACE]mac_pwr_switch_pcie_8812f ===>
[TRACE]pwr = 1
[TRACE]8812F pwr seq ver = V02
[TRACE]mac_pwr_switch_pcie_8812f <===
InitPON OK!!!
[TRACE]init_system_cfg_8812f ===>
[TRACE]init_system_cfg_8812f <===
InitMAC Page0
[TRACE]download_firmware_88xx ===>
[TRACE]halmac h2c ver = f, fw h2c ver = e!!
[TRACE]=== FW info ===
[TRACE]ver : 3
[TRACE]sub-ver : 6
[TRACE]sub-idx : 0
[TRACE]build : 2020/0/24 14:39
[TRACE]Dlfw OK, enable CPU
[TRACE]0x80=0xC078, cnt=4979
[TRACE]download_firmware_88xx <===
>>SetBeaconDownload88XX
Init Download FW OK
[TRACE]cfg_la_mode_88xx ===>
[TRACE]cfg_la_mode_88xx <===
[TRACE]init_mac_cfg_88xx ===>
[TRACE]init_trx_cfg_8812f ===>
[TRACE]rqpn_parser_88xx done
[TRACE]pg_num_parser_88xx done
[TRACE]Set FIFO page
[TRACE]h2c fs : 1024
[TRACE]init_trx_cfg_8812f <===
[TRACE]init_protocol_cfg_8812f ===>
[TRACE]init_protocol_cfg_8812f <===
[TRACE]init_edca_cfg_8812f ===>
[TRACE]init_edca_cfg_8812f <===
[TRACE]init_wmac_cfg_8812f ===>
[TRACE]init_low_pwr_8812f ===>
[TRACE]init_low_pwr_8812f <===
[TRACE]init_wmac_cfg_8812f <===
[TRACE]init_mac_cfg_88xx <===
halmac_init_mac_cfg OK
halmac_cfg_rx_aggregation OK
[TRACE]cfg_mac_addr_88xx ===>
[TRACE]cfg_mac_addr_88xx <===
halmac_init_mac_cfg OK
[TRACE]cfg_drv_info_8812f ===>
[TRACE]drv info = 1
[TRACE]set_hw_value_8812f ===>
[TRACE]set_hw_value_88xx ===>
[TRACE]cfg_rx_ignore_8812f ===>
[TRACE]cfg_rx_ignore_8812f <===
[TRACE]set_hw_value_8812f <===
[TRACE]cfg_drv_info_8812f <===
[GetHwReg88XX][size PHY_REG_PG_8812Fmp_Type0]
[GetHwReg88XX][PHY_REG_PG_8812Fmp_Type0]
>>manual_dfs_regdomain:1
>>dfs VERSION_8812f~
start_addr=(0x20000), end_addr=(0x40000), buffer_size=(0x20000), smp_number_max=(16384)
[set_8812F_trx_regs] +++
[Beamforming_Init] phydm_txbf_rfmode(1)
br0: port 5(wlan0) entered forwarding state
br0: port 5(wlan0) entered forwarding state
[SMUX] eth0.2.0 carrier on !!!
CMD: /bin/iwpbr0: port 1(eth0.2.0) entered forwarding state
riv wlan0 set_rebr0: port 1(eth0.2.0) entered forwarding state
g_pg all=0
CCK(dBm): 0,0,0,0,0,
OFDM(dBm): 21,21,21,21,21,21,21,20,
HT MCS 1SS(dBm): 21,21,21,21,21,21,20,19,
HT MCS 2SS(dBm): 21,21,21,21,21,21,20,19,
VHT MCS 1SS(dBm): 20,20,20,20,20,20,20,19,18,17,
VHT MCS 2SS(dBm): 20,20,20,20,20,20,20,19,18,17,
CMD: /bin/iwpriv wlan0-vap0 set_mib ssid=SSID-1-5G
CMD: /bin/iwpriv wlan0-vap0 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan0-vap0 set_mib fragthres=2346
CMD: /bin/iwpriv wlan0-vap0 set_mib dtimperiod=1
4 cpu
CMD: /bin/iwpriv wlan0-vap0 set_mib aclnum=0
CMD: /bin/iwpriv wlan0-vap0 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan0-vap0 set_mib authtype=2
CMD: /bin/iwpriv wlan0-vap0 set_mib band=76
CMD: /bin/iwpriv wlan0-vap0 set_mib autorate=1
CMD: /bin/iwpriv wlan0-vap0 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan0-vap0 set_mib qos_enable=1
4 cpu
CMD: /bin/iwpriv wlan0-vap0 set_mib block_relay=0
CMD: /bin/iwpriv wlan0-vap0 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan0-vap0 set_mib psk_enable=0
CMD: /bin/iwpriv wlan0-vap0 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan0-vap0 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan0-vap0 set_mib encmode=0
CMD: /bin/iwpriv wlan0-vap0 set_mib rm_activated=0
4 cpu
CMD: /bin/iwpriv wlan0-vap0 set_mib BssTransEnable=0
CMD: /bin/iwpriv wlan0-vap0 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan0-vap0 set_mib a4_enable=0
CMD: /bin/iwpriv wlan0-vap0 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan0-vap0 set_mib 802_1x=0
CMD: /bin/iwpriv wlan0-vap0 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan0-vap0 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan0-vap0 set_mib disable_protection=1
CMD: /bin/iwpriv wlan0-vap0 set_mib use40M=2
CMD: /bin/iwpriv wlan0-vap0 set_mib 2ndchoffset=1
!!! adjust 5G 2ndoffset for 8812 !!!
CMD: /bin/iwpriv wlan0-vap0 set_mib 2ndchoffset=2
CMD: /bin/iwpriv wlan0-vap0 set_mib coexist=0
CMD: /bin/iwpriv wlan0-vap0 set_mib shortGI20M=0
CMD: /bin/iwpriv wlan0-vap0 set_mib shortGI40M=0
CMD: /bin/iwpriv wlan0-vap0 set_mib shortGI80M=0
CMD: /bin/iwpriv wlan0-vap0 set_mib ampdu=1
CMD: /bin/iwpriv wlan0-vap0 set_mib amsdu=2
CMD: /bin/iwpriv wlan0 set_mib disable_DFS=0
CMD: /bin/iwpriv wlan0-vap0 set_mib gbwcmode=0
CMD: /bin/iwpriv wlan0-vap0 set_mib gbwcthrd_tx=0
CMD: /bin/iwpriv wlan0-vap0 set_mib gbwcthrd_rx=0
CMD: /bin/iwpriv wlan0-vap1 set_mib ssid=SSID-2-5G
CMD: /bin/iwpriv wlan0-vap1 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan0-vap1 set_mib fragthres=2346
CMD: /bin/iwpriv wlan0-vap1 set_mib dtimperiod=1
CMD: /bin/iwpriv wlan0-vap1 set_mib aclnum=0
CMD: /bin/iwpriv wlan0-vap1 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan0-vap1 set_mib authtype=2
CMD: /bin/iwpriv wlan0-vap1 set_mib band=76
CMD: /bin/iwpriv wlan0-vap1 set_mib autorate=1
CMD: /bin/iwpriv wlan0-vap1 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan0-vap1 set_mib qos_enable=1
CMD: /bin/iwpriv wlan0-vap1 set_mib block_relay=0
CMD: /bin/iwpriv wlan0-vap1 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan0-vap1 set_mib psk_enable=0
CMD: /bin/iwpriv wlan0-vap1 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan0-vap1 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan0-vap1 set_mib encmode=0
CMD: /bin/iwpriv wlan0-vap1 set_mib rm_activated=0
CMD: /bin/iwpriv wlan0-vap1 set_mib BssTransEnable=0
CMD: /bin/iwpriv wlan0-vap1 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan0-vap1 set_mib a4_enable=0
CMD: /bin/iwpriv wlan0-vap1 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan0-vap1 set_mib 802_1x=0
CMD: /bin/iwpriv wlan0-vap1 set_mib lgyEncRstrct=15
Reset register status...
CMD: /bin/iwpriv wlan0-vap1 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan0-vap1 set_mib disable_protection=1
CMD: /bin/iwpriv wlan0-vap1 set_mib use40M=2
CMD: /bin/iwpriv wlan0-vap1 set_mib 2ndchoffset=1
!!! adjust 5G 2ndoffset for 8812 !!!
CMD: /bin/iwpriv wlan0-vap1 set_mib 2ndchoffset=2
CMD: /bin/iwpriv wlan0-vap1 set_mib coexist=0
CMD: /bin/iwpriv wlan0-vap1 set_mib shortGI20M=0
CMD: /bin/iwpriv wlan0-vap1 set_mib shortGI40M=0
CMD: /bin/iwpriv wlan0-vap1 set_mib shortGI80M=0
CMD: /bin/iwpriv wlan0-vap1 set_mib ampdu=1
CMD: /bin/iwpriv wlan0-vap1 set_mib amsdu=2
CMD: /bin/iwpriv wlan0 set_mib disable_DFS=0
CMD: /bin/iwpriv wlan0-vap1 set_mib gbwcmode=0
CMD: /bin/iwpriv wlan0-vap1 set_mib gbwcthrd_tx=0
CMD: /bin/iwpriv wlan0-vap1 set_mib gbwcthrd_rx=0
CMD: /bin/iwpriv wlan0-vap2 set_mib ssid=SSID-3-5G
CMD: /bin/iwpriv wlan0-vap2 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan0-vap2 set_mib fragthres=2346
CMD: /bin/iwpriv wlan0-vap2 set_mib dtimperiod=1
CMD: /bin/iwpriv wlan0-vap2 set_mib aclnum=0
CMD: /bin/iwpriv wlan0-vap2 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan0-vap2 set_mib authtype=2
CMD: /bin/iwpriv wlan0-vap2 set_mib band=76
CMD: /bin/iwpriv wlan0-vap2 set_mib autorate=1
CMD: /bin/iwpriv wlan0-vap2 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan0-vap2 set_mib qos_enable=1
CMD: /bin/iwpriv wlan0-vap2 set_mib block_relay=0
CMD: /bin/iwpriv wlan0-vap2 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan0-vap2 set_mib psk_enable=0
CMD: /bin/iwpriv wlan0-vap2 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan0-vap2 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan0-vap2 set_mib encmode=0
CMD: /bin/iwpriv wlan0-vap2 set_mib rm_activated=0
CMD: /bin/iwpriv wlan0-vap2 set_mib BssTransEnable=0
CMD: /bin/iwpriv wlan0-vap2 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan0-vap2 set_mib a4_enable=0
CMD: /bin/iwpriv wlan0-vap2 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan0-vap2 set_mib 802_1x=0
CMD: /bin/iwpriv wlan0-vap2 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan0-vap2 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan0-vap2 set_mib disable_protection=1
CMD: /bin/iwpriv wlan0-vap2 set_mib use40M=2
CMD: /bin/iwpriv wlan0-vap2 set_mib 2ndchoffset=1
!!! adjust 5G 2ndoffset for 8812 !!!
CMD: /bin/iwpriv wlan0-vap2 set_mib 2ndchoffset=2
CMD: /bin/iwpriv wlan0-vap2 set_mib coexist=0
CMD: /bin/iwpriv wlan0-vap2 set_mib shortGI20M=0
CMD: /bin/iwpriv wlan0-vap2 set_mib shortGI40M=0
CMD: /bin/iwpriv wlan0-vap2 set_mib shortGI80M=0
CMD: /bin/iwpriv wlan0-vap2 set_mib ampdu=1
CMD: /bin/iwpriv wlan0-vap2 set_mib amsdu=2
CMD: /bin/iwpriv wlan0 set_mib disable_DFS=0
CMD: /bin/iwpriv wlan0-vap2 set_mib gbwcmode=0
CMD: /bin/iwpriv wlan0-vap2 set_mib gbwcthrd_tx=0
CMD: /bin/iwpriv wlan0-vap2 set_mib gbwcthrd_rx=0
CMD: /bin/iwpriv wlan0-vap3 set_mib ssid=SSID-4-5G
CMD: /bin/iwpriv wlan0-vap3 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan0-vap3 set_mib fragthres=2346
CMD: /bin/iwpriv wlan0-vap3 set_mib dtimperiod=1
CMD: /bin/iwpriv wlan0-vap3 set_mib aclnum=0
CMD: /bin/iwpriv wlan0-vap3 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan0-vap3 set_mib authtype=2
CMD: /bin/iwpriv wlan0-vap3 set_mib band=76
CMD: /bin/iwpriv wlan0-vap3 set_mib autorate=1
CMD: /bin/iwpriv wlan0-vap3 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan0-vap3 set_mib qos_enable=1
CMD: /bin/iwpriv wlan0-vap3 set_mib block_relay=0
CMD: /bin/iwpriv wlan0-vap3 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan0-vap3 set_mib psk_enable=0
CMD: /bin/iwpriv wlan0-vap3 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan0-vap3 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan0-vap3 set_mib encmode=0
CMD: /bin/iwpriv wlan0-vap3 set_mib rm_activated=0
CMD: /bin/iwpriv wlan0-vap3 set_mib BssTransEnable=0
CMD: /bin/iwpriv wlan0-vap3 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan0-vap3 set_mib a4_enable=0
CMD: /bin/iwpriv wlan0-vap3 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan0-vap3 set_mib 802_1x=0
CMD: /bin/iwpriv wlan0-vap3 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan0-vap3 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan0-vap3 set_mib disable_protection=1
CMD: /bin/iwpriv wlan0-vap3 set_mib use40M=2
CMD: /bin/iwpriv wlan0-vap3 set_mib 2ndchoffset=1
!!! adjust 5G 2ndoffset for 8812 !!!
CMD: /bin/iwpriv wlan0-vap3 set_mib 2ndchoffset=2
CMD: /bin/iwpriv wlan0-vap3 set_mib coexist=0
CMD: /bin/iwpriv wlan0-vap3 set_mib shortGI20M=0
CMD: /bin/iwpriv wlan0-vap3 set_mib shortGI40M=0
CMD: /bin/iwpriv wlan0-vap3 set_mib shortGI80M=0
CMD: /bin/iwpriv wlan0-vap3 set_mib ampdu=1
CMD: /bin/iwpriv wlan0-vap3 set_mib amsdu=2
CMD: /bin/iwpriv wlan0 set_mib disable_DFS=0
CMD: /bin/iwpriv wlan0-vap3 set_mib gbwcmode=0
CMD: /bin/iwpriv wlan0-vap3 set_mib gbwcthrd_tx=0
CMD: /bin/iwpriv wlan0-vap3 set_mib gbwcthrd_rx=0
CMD: /bin/iwpriv wlan1 set_mib mp_specific=0
CMD: /bin/iwpriv wlan1 set_mib regdomain=1
CMD: /bin/iwpriv wlan1 set_mib led_type=7
br0: port 5(wlan0) entered forwarding state
CMD: /bin/iwpriv wlan1 set_mib ssid=YOTC-*redacted*
CMD: /bin/iwpriv wlan1 set_mib opmode=16
CMD: /bin/iwpriv wlan1 set_mib phyBandSelect=1
CMD: /bin/iwpriv wlan1 set_mib pwrlevebr0: port 1(eth0.2.0) entered forwarding state
lCCK_A=2b2b2b2a2a2a2a2a2a2a2a2a2a2a
CMD: /bin/iwpriv wlan1 set_mib pwrlevelCCK_B=2d2d2d2d2d2d2d2d2d2d2d2d2d2d
CMD: /bin/iwpriv wlan1 set_mib pwrlevel_TSSICCK_A=0000000000000000000000000000
CMD: /bin/iwpriv wlan1 set_mib pwrlevel_TSSICCK_B=0000000000000000000000000000
CMD: /bin/iwpriv wlan1 set_mib pwrlevelHT40_1S_A=2a2a2a2a29292929292929292929
CMD: /bin/iwpriv wlan1 set_mib pwrlevelHT40_1S_B=2c2c2c2c2c2c2c2b2b2b2b2b2b2b
CMD: /bin/iwpriv wlan1 set_mib pwrlevel_TSSIHT40_1S_A=0000000000000000000000000000
CMD: /bin/iwpriv wlan1 set_mib pwrlevel_TSSIHT40_1S_B=0000000000000000000000000000
CMD: /bin/iwpriv wlan1 set_mib pwrdiffHT40_2S=0000000000000000000000000001
CMD: /bin/iwpriv wlan1 set_mib pwrdiffHT20=0000000000000000000000000000
CMD: /bin/iwpriv wlan1 set_mib pwrdiffOFDM=2222222222222222222222222222
CMD: /bin/iwpriv wlan1 set_mib tssi_enable=0
CMD: /bin/iwpriv wlan1 set_mib ther=36
CMD: /bin/iwpriv wlan1 set_mib thermal1=36
CMD: /bin/iwpriv wlan1 set_mib xcap=32
CMD: /bin/iwpriv wlan1 set_mib countrycode=1
CMD: /bin/iwpriv wlan1 set_mib countrystr=US
CMD: /bin/iwpriv wlan1 set_mib bDPPathAOK=1
CMD: /bin/iwpriv wlan1 set_mib bDPPathBOK=1
CMD: /bin/iwpriv wlan1 set_mib pwsf_2g_a=1d1d1d
CMD: /bin/iwpriv wlan1 set_mib pwsf_2g_b=1d1d1d
CMD: /bin/iwpriv wlan1 set_mib lut_2g_even_a0=000d6fe4000d5fe9000d57e9000d67ea000d67ee000d7fef000daff1000dd7f3000e17f5000e47f6000e77f7000ea7f7000eeff9000f1ffb000f6ffd000fcfff000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_even_a1=000d77ea000d67eb000d5fed000d6fee000d77f0000d87f2000db7f3000df7f4000e1ff7000e5ff7000e87f8000eaff8000eeff9000f2ffa000f87fc000fcffe000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800 ip6tables v1.4.18:
Couldn't load target `NPT_PREROUTING_TBL':No such file or directory
Try `ip6tables -h' or 'ip6tables --help' for more information.
CMD: /bin/iwpriv wlan1 set_mib lut_2g_even_a2=000d77eb000d67ef000d67f0000d87f0000d7ff4000d8ff5000dbff6000dfff8000e27f9000e67f9000e7ffa000eaffa000ee7fb000f27fc000f7ffe000fd000000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_odd_a0=000d67e7000d5fe9000d5fe9000d67ed000d77ef000d9ff0000db7f2000dfff4000e2ff6000e5ff6000e8ff8000ebff8000f07fa000f47fc000faffd00100000000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
ip6tables: No chain/target/match by that name.
CMD: /bin/iwpriv wlan1 set_mib lut_2g_odd_a1=000d5fea000d67ec000d67ee000d77ef000d7ff1000daff1000dd7f4000e0ff6000e3ff7000e67f8000e9ff9000ecff9000f0ff9000f4ffc000fb7fc00100000000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_odd_a2=000d6fee000d67f1000d67f0000d7ff1000d87f4000daff5000dd7f6000e17f9000e4ff9000e67fa000e97fa000ebffb000f07fb000f57fc000fa7fd00100000000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_even_b0=000d97e4000d97e3000d9fe5000d9fe8000d9fea000db7ec000de7f0000e1ff2000e2ff4000e57f5000e6ff8000e7ff8000ea7f5000ee7f6000f4ffa000fbffe000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
ip6tables: No chain/target/match by that name.
CMD: /bin/iwpriv wlan1 set_mib lut_2g_even_b1=000d97e4000d97e7000d97e8000d8fea000d9fec000dbfef000df7f1000e27f4000e2ff5000e4ff7000e77f7000e87f4000ea7f5000ee7f7000f4ffa000fbffd000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_even_b2=000d87ea000da7ea000d9fe9000d9fec000dafee000dc7f0000e07f3000e27f5000e47f6000e67f9000e7ff9000e7ff5000eaff5000eeff8000f5ffb000fcfff000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_odd_b0=000d87e3000d9fe6000d8fe6000d97e9000dafeb000ddfed000e07f1000e2ff3000e47f5000e5ff6000e87f8000e87f4000ed7f5000f07f8000f77fc00100000000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800 ip6tables v1.4.18:
Couldn't load target `NPT_POSTROUTING_TBL':No such file or directory
Try `ip6tables -h' or 'ip6tables --help' for more information.
CMD: /bin/iwpriv wlan1 set_mib lut_2g_odd_b1=000d97e6000d97e6000d97e9000d97ea000db7ee000de7f0000e0ff4000e27f5000e47f6000e57f8000e7ff8000e8ff4000ecff5000f0ff8000f7ffc00100000000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
CMD: /bin/iwpriv wlan1 set_mib lut_2g_odd_b2=000da7e8000da7e9000d97ea000d9fed000dafef000df7f2000e17f5000e2ff6000e5ff8000e6ff9000e7ff8000e8ff6000ed7f7000f37fa000fb7fe00100000000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800000d7800
ip6tables: No chain/target/match by that name.
CMD: /bin/iwpriv wlan1 set_mib bcnint=100
CMD: /bin/iwpriv wlan1 set_mib channel=11
ip6tables: No chain/target/match by that name.
CMD: /bin/iwpriv wlan1 set_mib autoch_timeout=0
CMD: /bin/iwpriv wlan1 set_mib autoch_diff_pkt=0
CMD: /bin/iwpriv wlan1 set_mib autoch_1611_enable=0
CMD: /bin/iwpriv wlan1 set_mib basicrates=15
CMD: /bin/iwpriv wlan1 set_mib oprates=4095
CMD: /bin/iwpriv wlan1 set_mib autorate=1
CMD: /bin/iwpriv wlan1 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan1 set_mib fragthres=2346
CMD: /bin/iwpriv wlan1 set_mib dtimperiod=1
CMD: /bin/iwpriv wlan1 set_mib expired_time=30000
CMD: /bin/iwpriv wlan1 set_mib preamble=0
CMD: /bin/iwpriv wlan1 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan1 set_mib txbf=1
CMD: /bin/iwpriv wlan1 set_mib txbf_mu=1
CMD: /bin/iwpriv wlan1 set_mib mc2u_disable=0
CMD: /bin/iwpriv wlan1 set_mib aclnum=0
CMD: /bin/iwpriv wlan1 set_mib device wlan1 entered promiscuous mode
aclmode=0
CMD: /bin/iwpriv wlan1 set_mib stactrl_enable=0
CMD: /bin/iwpriv wlan1 set_mchip_version=0x100c,WlanSupportAbility = 0x7
ib stactrl_prefer_band=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan1 set_mib wsc_enable=0
RTNETLINK answers: File exists
CMD: /bin/iwpriv wlan1 set_mib authtype=2
CMD: /bin/iwpriv wlan1 set_mib wpa_cipher=0
CMD: /bin/iwpriv wlan1 set_mib wpa2_cipher=8
CMD: /bin/iwpriv wlan1 set_mib psk_enable=2
CMD: /bin/iwpriv wlan1 set_mib passphrase=782ump26
CMD: /bin/iwpriv wlan1 set_mib gk_rekey=86400
CMD: /bin/iwpriv wlan1 set_mib dot11IEEE80211W=1
CMD: /bin/iwpriv wlan1 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan1 set_mib encmode=2
CMD: /bin/iwpriv wlan1 set_mib rm_activated=0
CMD: /bin/iwpriv wlan1 set_mib BssTransEnable=0
CMD: /bin/iwpriv wlan1 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan1 set_mib a4_enable=0
CMD: /bin/iwpriv wlan1 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan1 set_mib 802_1x=1
CMD: /bin/iwpriv wlan1 set_mib band=11
CMD: /bin/iwpriv wlan1 set_mib deny_legacy=3
CMD: /bin/iwpriv wlan1 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan1 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan1 set_mib cts2self=1
CMD: /bin/iwpriv wlan1 set_mib disable_protection=1
CMD: /bin/iwpriv wlan1 set_mib block_relay=0
CMD: /bin/iwpriv wlan1 set_mib qos_enable=1
CMD: /bin/iwpriv wlan1 set_mib apsd_enable=0
CMD: /bin/iwpriv wlan1 set_mib use40M=0
CMD: /bin/iwpriv wlan1 set_mib 2ndchoffset=0
CMD: /bin/iwpriv wlan1 set_mib coexist=0
CMD: /bin/iwpriv wlan1 set_mib shortGI20M=0
CMD: /bin/iwpriv wlan1 set_mib shortGI40M=0
CMD: /bin/iwpriv wlan1 set_mib shortGI80M=0
CMD: /bin/iwpriv wlan1 set_mib ampdu=1
CMD: /bin/iwpriv wlan1 set_mib amsdu=0
CMD: /bin/iwpriv wlan1 set_mib vap_enable=1
CMD: /bin/iwpriv wlan1 set_mib stbc=1
CMD: /bin/iwpriv wlan1 set_mib ldpc=1
CMD: /bin/iwpriv wlan1 set_mib tdls_prohibited=0
CMD: /bin/iwpri[wlan1] SAE INIT...
v wlan1 set_mib SAE: pwd-seed - hexdump(len=32):tdls_cs_prohibit 62 eb 8f 35 5b c1 71 3b 96 59 27 5e 8a 51 38 3e 19 13 7c 72 fa 81 68 db e4 0c e2 ca c2 8c 92 a1
ed=0
CMD: /SAE: pwd-value (u1 P1) - hexdump(len=48):bin/iwpriv wlan1 bd da 66 b8 f4 e3 78 68 c8 0a 09 14 01 3d ec 4e c4 84 36 68 48 81 99 2a f9 61 b6 05 34 e8 5e b6 06 38 24 60 35 e4 c0 64 38 3f f5 b7 91 d2 1f 5f
set_mib gbwcmodSAE: u1 - hexdump(len=32):e=0
CMD: /b 13 04 43 94 7f 39 a3 c8 46 a3 d6 e3 77 fa dd 3a b8 a4 fc 70 e8 a2 9f 85 f5 2d 77 33 9d 3f ae 08
in/iwpriv wlan1 SSWU: m - hexdump(len=32):set_mib gbwcthrd 7b d1 b1 43 63 d7 7b f5 fe ef 3e b6 a6 f1 8f f1 82 f6 ed ef 70 ba 16 91 02 4f 63 b9 9b 58 e8 8d
_tx=0
CMD: SSWU: t - hexdump(len=32):/bin/iwpriv wlan c4 f8 0a 28 1f 66 cb 63 d4 47 4d 3f 1f 2b 58 9f df b2 80 e7 f9 e4 88 5f 43 a1 51 b7 d4 fe 4f 59
1 set_mib gbwcthSSWU: a - hexdump(len=32):rd_rx=0
CMD ff ff ff ff 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 00 ff ff ff ff ff ff ff ff ff ff ff fc
: /bin/brctl addSSWU: x1a = b / (z * a) - hexdump(len=32):if br0 wlan1
a5 28 bd 86 96 bd af 99 6c 65 b9 82 d9 49 59 d3 14 6f e6 a0 20 69 30 90 bd ba 13 13 23 75 f2 24
CMD: /bin/iwprSSWU: x1b = (-b/a) * (1 + t) - hexdump(len=32):iv wlan1 set_mib 8b f8 4f c7 cf 41 7d 03 fb f4 d6 df 30 ed 20 94 90 c3 33 48 74 81 17 e6 0b 68 05 8a 85 18 ea 89
func_off=0
SSWU: x1 = CSEL(l, x1a, x1b) - hexdump(len=32): CMD: /bin/ifcon 8b f8 4f c7 cf 41 7d 03 fb f4 d6 df 30 ed 20 94 90 c3 33 48 74 81 17 e6 0b 68 05 8a 85 18 ea 89
fig wlan1 up
SSWU: gx1 = x1^3 + a * x1 + b - hexdump(len=32): ac 53 b3 87 3a 3d d1 bc d4 3b f6 8c 82 a7 92 67 f2 de 6f 0e 39 68 7d a9 0c c1 32 87 a9 50 9b ed
SSWU: x2 = z * u^2 * x1 - hexdump(len=32): 83 5c 55 47 ee e3 f9 0f ae f7 94 b2 b1 49 81 1d 48 01 16 14 d0 1b e5 19 e0 df de e0 71 32 25 2a
SSWU: gx2 = x2^3 + a * x2 + b - hexdump(len=32): cc 1d 9d f8 c5 15 f1 2f 12 fa 67 f9 ef 6c 66 bd 34 b6 fe a2 54 2f f9 48 68 9a 22 99 15 da 98 d3
SSWU: gx1^((p-1)/2) modulo p: X - hexdump(len=1): 01
SSWU: v = CSEL(l, gx1, gx2) - hexdump(len=32): ac 53 b3 87 3a 3d d1 bc d4 3b f6 8c 82 a7 92 67 f2 de 6f 0e 39 68 7d a9 0c c1 32 87 a9 50 9b ed
SSWU: x = CSEL(l, x1, x2) - hexdump(len=32): 8b f8 4f c7 cf 41 7d 03 fb f4 d6 df 30 ed 20 94 90 c3 33 48 74 81 17 e6 0b 68 05 8a 85 18 ea 89
SSWU: y = sqrt(v) - hexdump(len=32): 39 2a d1 78 0b c4 82 c4 69 e3 50 4f c2 22 78 c1 bd 8c d1 2a 45 94 cb ab f6 68 da f4 89 ca f2 a0
SSWU: p - y - hexdump(len=32): c6 d5 2e 86 f4 3b 7d 3c 96 1c af b0 3d dd 87 3e 42 73 2e d6 ba 6b 34 54 09 97 25 0b 76 35 0d 5f
SSWU: P.x - hexdump(len=32): 8b f8 4f c7 cf 41 7d 03 fb f4 d6 df 30 ed 20 94 90 c3 33 48 74 81 17 e6 0b 68 05 8a 85 18 ea 89
SSWU: P.y - hexdump(len=32): 39 2a d1 78 0b c4 82 c4 69 e3 50 4f c2 22 78 c1 bd 8c d1 2a 45 94 cb ab f6 68 da f4 89 ca f2 a0
SAE: pwd-value (u2 P2) - hexdump(len=48): 6c 10 be 83 38 ea 39 eb b3 6c f2 ad de 7a e6 4c ef 2d 0b c2 3d f5 73 29 99 4b 68 f0 c1 8b 6b 39 a1 9b 72 3e 74 16 66 e3 f1 59 25 a3 fe c8 a9 fc
SAE: u2 - hexdump(len=32): 28 ac f9 9f ac 0d 9a 2e f4 50 70 81 d5 34 3e a0 e7 d5 16 4b 19 11 5f 52 dd b0 52 3d 24 9f c4 73
SSWU: m - hexdump(len=32): e6 64 ff 35 b8 9a 52 1f 01 01 1b 1a 6f 17 0a b8 17 19 96 c4 1f 0d 94 14 0c 98 93 f5 79 5a 57 18
SSWU: t - hexdump(len=32): 80 fb 5a 51 9d 1e d8 c9 29 ae 01 5e 7b 62 e0 d4 f4 f5 70 e9 5f 8c 07 03 07 4f 8e c7 fe fa e1 95
SSWU: a - hexdump(len=32): ff ff ff ff 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 00 ff ff ff ff ff ff ff ff ff ff ff fc
SSWU: x1a = b / (z * a) - hexdump(len=32): a5 28 bd 86 96 bd af 99 6c 65 b9 82 d9 49 59 d3 14 6f e6 a0 20 69 30 90 bd ba 13 13 23 75 f2 24
SSWU: x1b = (-b/a) * (1 + t) - hexdump(len=32): 71 0c 3e 4f 10 a7 55 5c 97 0a 35 26 c3 c7 d3 fe b0 62 56 ca 9f ea 9f 16 5b fe 3f f0 ed 66 12 44
SSWU: x1 = CSEL(l, x1a, x1b) - hexdump(len=32): 71 0c 3e 4f 10 a7 55 5c 97 0a 35 26 c3 c7 d3 fe b0 62 56 ca 9f ea 9f 16 5b fe 3f f0 ed 66 12 44
SSWU: gx1 = x1^3 + a * x1 + b - hexdump(len=32): 04 b0 16 71 9e b9 7a 8e 4e df 28 89 c1 d0 67 fd 6b d1 63 bf ce 9a ba 9b 47 57 19 e6 b4 f2 00 3e
SSWU: x2 = z * u^2 * x1 - hexdump(len=32): d0 be 94 71 2d c6 5d 2c ff d4 e5 82 8a e1 8f 94 6b 6a 98 9e 5f 7d 85 c4 67 61 e3 e1 a3 d9 62 36
SSWU: gx2 = x2^3 + a * x2 + b - hexdump(len=32): 06 1a f0 55 ed 9d 93 22 44 3b 8a 09 4f 92 98 d7 ee 19 57 d8 39 38 d8 7d 7e 44 7a 39 87 1c 5c f3
SSWU: gx1^((p-1)/2) modulo p: X - hexdump(len=1): 01
SSWU: v = CSEL(l, gx1, gx2) - hexdump(len=32): 04 b0 16 71 9e b9 7a 8e 4e df 28 89 c1 d0 67 fd 6b d1 63 bf ce 9a ba 9b 47 57 19 e6 b4 f2 00 3e
SSWU: x = CSEL(l, x1, x2) - hexdump(len=32): 71 0c 3e 4f 10 a7 55 5c 97 0a 35 26 c3 c7 d3 fe b0 62 56 ca 9f ea 9f 16 5b fe 3f f0 ed 66 12 44
SSWU: y = sqrt(v) - hexdump(len=32): 32 20 f2 58 f7 c2 3c 53 a0 27 5b 21 91 0d 44 54 e9 24 c6 cc 59 14 dd 0a fb 64 64 dc f8 3d ee 73
SSWU: p - y - hexdump(len=32): cd df 0d a6 08 3d c3 ad 5f d8 a4 de 6e f2 bb ab 16 db 39 34 a6 eb 22 f5 04 9b 9b 23 07 c2 11 8c
SSWU: P.x - hexdump(len=32): 71 0c 3e 4f 10 a7 55 5c 97 0a 35 26 c3 c7 d3 fe b0 62 56 ca 9f ea 9f 16 5b fe 3f f0 ed 66 12 44
SSWU: P.y - hexdump(len=32): 32 20 f2 58 f7 c2 3c 53 a0 27 5b 21 91 0d 44 54 e9 24 c6 cc 59 14 dd 0a fb 64 64 dc f8 3d ee 73
eric-8822 [ODM_software_init][15562]
clock 25MHz
[PHY_REG_PG_8192Fmp]
upg_app init
===> Do flow flush <===
0
0
start_addr=(0x2000), end_addr=(0x10000), buffer_size=(0xe000), smp_number_max=(7168)
br0: port 6(wlan1) entered forwarding state
br0: port 6(wlan1) entered forwarding state
CMD: /bin/iwpriv wlan1-vap0 set_mib ssid=SSID-1
CMD: /bin/iwpriv wlan1-vap0 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan1-vap0 set_mib fragthres=2346
CMD: /bin/iwpriv wlan1-vap0 set_mib dtimperiod=1
CMD: /bin/iwpriv wlan1-vap0 set_mib aclnum=0
CMD: /bin/iwpriv wlan1-vap0 set_mib aclmode=0
4 cpu
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan1-vap0 set_mib authtype=2
CMD: /bin/iwpriv wlan1-vap0 set_mib band=11
CMD: /bin/iwpriv wlan1-vap0 set_mib autorate=1
CMD: /bin/iwpriv wlan1-vap0 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan1-vap0 set_mib qos_enable=1
CMD: /bin/iwpriv wlan1-vap0 set_mib block_relay=0
CMD: /bin/iwpriv wlan1-vap0 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan1-vap0 set_mib psk_enable=0
CMD: /bin/iwpriv wlan1-vap0 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan1-vap0 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan1-vap0 set_mib encmode=0
CMD: /bin/iwpriv wlan1-vap0 set_mib rm_activated=0
CMD: /bin/iwpriv wlan1-vap0 set_mib BssTransEnable=0
CMD: /bin/iwpriv wlan1-vap0 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan1-vap0 set_mib a4_enable=0
CMD: /bin/iwpriv wlan1-vap0 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan1-vap0 set_mib 802_1x=0
CMD: /bin/iwpriv wlan1-vap0 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan1-vap0 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan1-vap0 set_mib disable_protection=1
CMD: /bin/iwpriv wlan1-vap0 set_mib use40M=0
CMD: /bin/iwpriv wlan1-vap0 set_mib 2ndchoffset=0
CMD: /bin/iwpriv wlan1-vap0 set_mib coexist=0
CMD: /bin/iwpriv wlan1-vap0 set_mib shortGI20M=0
CMD: /bin/iwpriv wlan1-vap0 set_mib shortGI40M=0
CMD: /bin/iwpriv wlan1-vap0 set_mib shortGI80M=0
CMD: /bin/iwpriv wlan1-vap0 set_mib ampdu=1
CMD: /bin/iwpriv wlan1-vap0 set_mib amsdu=0
CMD: /bin/iwpriv wlan1-vap0 set_mib gbwcmode=0
CMD: /bin/iwpriv wlan1-vap0 set_mib gbwcthrd_tx=0
CMD: /bin/iwpriv wlan1-vap0 set_mib gbwcthrd_rx=0
CMD: /bin/iwpriv wlan1-vap1 set_mib ssid=SSID-2
CMD: /bin/iwpriv wlan1-vap1 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan1-vap1 set_mib fragthres=2346
CMD: /bin/iwpriv wlan1-vap1 set_mib dtimperiod=1
CMD: /bin/iwpriv wlan1-vap1 set_mib aclnum=0
CMD: /bin/iwpriv wlan1-vap1 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan1-vap1 set_mib authtype=2
CMD: /bin/iwpriv wlan1-vap1 set_mib band=11
CMD: /bin/iwpriv wlan1-vap1 set_mib autorate=1
CMD: /bin/iwpriv wlan1-vap1 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan1-vap1 set_mib qos_enable=1
CMD: /bin/iwpriv wlan1-vap1 set_mib block_relay=0
CMD: /bin/iwpriv wlan1-vap1 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan1-vap1 set_mib psk_enable=0
CMD: /bin/iwpriv wlan1-vap1 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan1-vap1 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan1-vap1 set_mib encmode=0
CMD: /bin/iwpriv wlan1-vap1 set_mib rm_activated=0
CMD: /bin/iwpriv wlan1-vap1 set_mib BssTransEnable=0
CMD: /bin/iwpriv wlan1-vap1 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan1-vap1 set_mib a4_enable=0
CMD: /bin/iwpriv wlan1-vap1 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan1-vap1 set_mib 802_1x=0
CMD: /bin/iwpriv wlan1-vap1 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan1-vap1 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan1-vap1 set_mib disable_protection=1
CMD: /bin/iwpriv wlan1-vap1 set_mib use40M=0
CMD: /bin/iwpriv wlan1-vap1 set_mib 2ndchoffset=0
CMD: /bin/iwpriv wlan1-vap1 set_mib coexist=0
CMD: /bin/iwpriv wlan1-vap1 set_mib shortGI20M=0
CMD: /bin/iwpriv wlan1-vap1 set_mib shortGI40M=0
CMD: /bin/iwpriv wlan1-vap1 set_mib shortGI80M=0
CMD: /bin/iwpriv wlan1-vap1 set_mib ampdu=1
CMD: /bin/iwpriv wlan1-vap1 set_mib amsdu=0
CMD: /bin/iwpriv wlan1-vap1 set_mib gbwcmode=0
CMD: /bin/iwpriv wlan1-vap1 set_mib gbwcthrd_tx=0
CMD: /bin/iwpriv wlan1-vap1 set_mib gbwcthrd_rx=0
CMD: /bin/iwpriv wlan1-vap2 set_mib ssid=SSID-3
CMD: /bin/iwpriv wlan1-vap2 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan1-vap2 set_mib fragthres=2346
CMD: /bin/iwpriv wlan1-vap2 set_mib dtimperiod=1
CMD: /bin/iwpriv wlan1-vap2 set_mib aclnum=0
CMD: /bin/iwpriv wlan1-vap2 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan1-vap2 set_mib authtype=2
CMD: /bin/iwpriv wlan1-vap2 set_mib band=11
CMD: /bin/iwpriv wlan1-vap2 set_mib autorate=1
CMD: /bin/iwpriv wlan1-vap2 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan1-vap2 set_mib qos_enable=1
CMD: /bin/iwpriv wlan1-vap2 set_mib block_relay=0
CMD: /bin/iwpriv wlan1-vap2 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan1-vap2 set_mib psk_enable=0
CMD: /bin/iwpriv wlan1-vap2 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan1-vap2 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan1-vap2 set_mib encmode=0
CMD: /bin/iwpriv wlan1-vap2 set_mib rm_activated=0
CMD: /bin/iwpriv wlan1-vap2 set_mib BssTransEnable=0
CMD: /bin/iwpriv wlan1-vap2 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan1-vap2 set_mib a4_enable=0
CMD: /bin/iwpriv wlan1-vap2 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan1-vap2 set_mib 802_1x=0
CMD: /bin/iwpriv wlan1-vap2 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan1-vap2 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan1-vap2 set_mib disable_protection=1
CMD: /bin/iwpriv wlan1-vap2 set_mib use40M=0
CMD: /bin/iwpriv wlan1-vap2 set_mib 2ndchoffset=0
CMD: /bin/iwpriv wlan1-vap2 set_mib coexist=0
CMD: /bin/iwpriv wlan1-vap2 set_mib shortGI20M=0
CMD: /bin/iwpriv wlan1-vap2 set_mib shortGI40M=0
CMD: /bin/iwpriv wlan1-vap2 set_mib shortGI80M=0
CMD: /bin/iwpriv wlan1-vap2 set_mib ampdu=1
CMD: /bin/iwpriv wlan1-vap2 set_mib amsdu=0
CMD: /bin/iwpriv wlan1-vap2 set_mib gbwcmode=0
CMD: /bin/iwpriv wlan1-vap2 set_mib gbwcthrd_tx=0
CMD: /bin/iwpriv wlan1-vap2 set_mib gbwcthrd_rx=0
CMD: /bin/iwpriv wlan1-vap3 set_mib ssid=SSID-4
CMD: /bin/iwpriv wlan1-vap3 set_mib rtsthres=2347
CMD: /bin/iwpriv wlan1-vap3 set_mib fragthres=2346
CMD: /bin/iwpriv wlan1-vap3 set_mib dtimperiod=1
CMD: /bin/iwpriv wlan1-vap3 set_mib aclnum=0
CMD: /bin/iwpriv wlan1-vap3 set_mib aclmode=0
CMD: /bin/ebtables -F wlan_block
CMD: /bin/iwpriv wlan1-vap3 set_mib authtype=2
CMD: /bin/iwpriv wlan1-vap3 set_mib band=11
CMD: /bin/iwpriv wlan1-vap3 set_mib autorate=1
CMD: /bin/iwpriv wlan1-vap3 set_mib hiddenAP=0
CMD: /bin/iwpriv wlan1-vap3 set_mib qos_enable=1
CMD: /bin/iwpriv wlan1-vap3 set_mib block_relay=0
CMD: /bin/iwpriv wlan1-vap3 set_mib deny_legacy=0
CMD: /bin/iwpriv wlan1-vap3 set_mib psk_enable=0
CMD: /bin/iwpriv wlan1-vap3 set_mib dot11IEEE80211W=0
CMD: /bin/iwpriv wlan1-vap3 set_mib enableSHA256=0
CMD: /bin/iwpriv wlan1-vap3 set_mib encmode=0
CMD: /bin/iwpriv wlan1-vap3 set_mib rm_activated=0
CMD: /bin/iwpriv wlan1-vap3 set_mib BssTransEnable=0
CMD: /bin/iwpriv wlan1-vap3 set_mib multiap_bss_type=0
CMD: /bin/iwpriv wlan1-vap3 set_mib a4_enable=0
CMD: /bin/iwpriv wlan1-vap3 set_mib multiap_monitor_mode_disable=1
CMD: /bin/iwpriv wlan1-vap3 set_mib 802_1x=0
CMD: /bin/iwpriv wlan1-vap3 set_mib lgyEncRstrct=15
CMD: /bin/iwpriv wlan1-vap3 set_mib wifi_specific=2
CMD: /bin/iwpriv wlan1-vap3 set_mib disable_protection=1
CMD: /bin/iwpriv wlan1-vap3 set_mib use40M=0
CMD: /bin/iwpriv wlan1-vap3 set_mib 2ndchoffset=0
CMD: /bin/iwpriv wlan1-vap3 set_mib coexist=0
CMD: /bin/iwpriv wlan1-vap3 set_mib shortGI20M=0
CMD: /bin/iwpriv wlan1-vap3 set_mib shortGI40M=0
CMD: /bin/iwpriv wlan1-vap3 set_mib shortGI80M=0
CMD: /bin/iwpriv wlan1-vap3 set_mib ampdu=1
CMD: /bin/iwpriv wlan1-vap3 set_mib amsdu=0
CMD: /bin/iwpriv wlan1-vap3 set_mib gbwcmode=0
CMD: /bin/iwpriv wlan1-vap3 set_mib gbwcthrd_tx=0
CMD: /bin/iwpriv wlan1-vap3 set_mib gbwcthrd_rx=0
====> wlan_valid_interface:wlan1-vap3 wlan0-vap3 wlan0-vxd wlan1-vap2 wlan1 pwlan0 wlan1-vxd wlan0-vap2 wlan1-vap1 wlan0 wlan0-vap1 wlan1-vap0 wlan0-vap0
CMD: mkdir /var/wps
CMD: /bin/sh -c /bin/cp /etc/simplecfg*.xml /var/wps
CMD: route del -net 239.255.255.250 netmask 255.255.255.255 br0
route: SIOCDELRT: No such process
CMD: route add -net 239.255.255.250 netmask 255.255.255.255 br0
WiFi Simple Config v2.20-wps2.0 [20210622] (2025.07.09-02:28+0000).
br0: port 6(wlan1) entered forwarding state
Total WPA/WPA2 number is 2
iwcontrol RegisterPID to (wlan0)
iwcontrol RegisterPID to (wlan1)
Multi_AP_Service is starting, profile number is : 2
CMD: /bin/ebtables -N wlan_map_block -P RETURN
CMD: /bin/ebtables -D FORWARD -j wlan_map_block
Sorry, rule does not exist.
CMD: /bin/ebtables -I FORWARD -j wlan_map_block
CMD: /bin/ebtables -N map_portmapping -P RETURN
CMD: /bin/ebtables -D FORWARD -j map_portmapping
Sorry, rule does not exist.
CMD: /bin/ebtables -A FORWARD -j map_portmapping
CMD: /bin/ebtables -F wlan_map_block
CMD: /bin/iptables -F tr069
CMD: /bin/ip6tables -F ipv6_tr069
CMD: /bin/cwmpClient
sh: can't create /proc/br_igmpsnoop: nonexistent directory
sh: can't create /proc/br_igmpquery: nonexistent directory
sh: can't create /proc/br_mldsnoop: nonexistent directory
sh: can't create /proc/br_mldquery: nonexistent directory
IGMP Snooping: enabled
MLD Snooping: enabled
CMD: /bin/ebtables -D br_lan_forward -p IPv4 --ip-proto igmp -j BR_IGMP_MLD_DROP
CMD: /bin/ebtables -D br_lan_forward -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 143:143/0:255 -j BR_IGMP_MLD_DROP
CMD: /bin/ebtables -D br_lan_forward -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 130:132/0:255 -j BR_IGMP_MLD_DROP
CMD: /bin/ebtables -F BR_IGMP_MLD_DROP
CMD: /bin/ebtables -X BR_IGMP_MLD_DROP
CMD: /bin/ebtables -N BR_IGMP_MLD_DROP
CMD: /bin/ebtables -P BR_IGMP_MLD_DROP RETURN
CMD: /bin/ebtables -A BR_IGMP_MLD_DROP -i eth+ -o eth+ -j DROP
CMD: /bin/ebtables -A BR_IGMP_MLD_DROP -i eth+ -o wlan+ -j DROP
CMD: /bin/ebtables -A BR_IGMP_MLD_DROP -i wlan+ -o eth+ -j DROP
CMD: /bin/ebtables -A BR_IGMP_MLD_DROP -i wlan+ -o wlan+ -j DROP
CMD: /bin/ebtables -A br_lan_forward -p IPv4 --ip-proto igmp -j BR_IGMP_MLD_DROP
CMD: /bin/ebtables -A br_lan_forward -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 143:143/0:255 -j BR_IGMP_MLD_DROP
cwmp_flag=70
<main.c>Set No Debug Message!
CMD: /bin/ebtables -A br_lan_forward -p IPv6 --ip6-proto ipv6-icmp --ip6-icmp-type 130:132/0:255 -j BR_IGMP_MLD_DROP
<cwmp_utility.c>Set No Debug Message[1]
<main.c>Set Delay!
<cwmp_utility.c>Set Delay[16]
<main.c>Set DisConReqAuth!
<cwmp_utility.c>Set DisConReqAuth[1]
<cwmp_utility.c>Set gPrintSoap[0]
<cwmp_utility.c>Set gsupportPOST[0]
<cwmp_utility.c>Set gRandomInform[0]
<cwmp_utility.c>Set gLibUseIpv6[1]
<cwmp_utility.c>Set gEnableTimeZone[1]
<main.c,189>[cwmp]begin handle signal thread
<cwmp_solarInit:24>INFO: Prepare to init maserati listener.
[update_monitor_list_file:23790] process_name = cwmpClient, action = 1
<cwmp_solarListener:46>INFO: Start maserati event listener thread.
enter cwmp_main!
Start cwmp_main() !
========== CWMP library ==========
91ebde00
Tue Apr 26 17:04:04 2022 +0800
Merge [tr069]move mib operation outside of libcwmp. into release/usdk_v2_2_0/cwmp-tr069
Build time: 20220511_04:21:07
==================================
<port_update_CWMP_diagnose_status:5022> diagnose_type = 1, status_code = 0
CMD: /bin/ebtables -D INPUT -j portmapping_input
Illegal target name 'portmapping_input'.
CMD: /bin/ebtables -F portmapping_input
Chain 'portmapping_input' doesn't exist.
CMD: /bin/ebtables -X portmapping_input
Chain 'portmapping_input' doesn't exist.
CMD: /bin/ebtables -D OUTPUT -j portmapping_output
Illegal target name 'portmapping_output'.
CMD: /bin/ebtables -F portmapping_output
Chain 'portmapping_output' doesn't exist.
CMD: /bin/ebtables -X portmapping_output
Chain 'portmapping_output' doesn't exist.
CMD: /bin/ebtables -F portmapping_service
Chain 'portmapping_service' doesn't exist.
CMD: /bin/ebtables -X portmapping_service
Chain 'portmapping_service' doesn't exist.
CMD: /bin/ebtables -D FORWARD -j portmapping
Illegal target name 'portmapping'.
CMD: /bin/ebtables -F portmapping
Chain 'portmapping' doesn't exist.
CMD: /bin/ebtables -X portmapping
Chain 'portmapping' doesn't exist.
CMD: /bin/ebtables -t broute -D BROUTING -j portmapping_broute
Illegal target name 'portmapping_broute'.
CMD: /bin/ebtables -t broute -F portmapping_broute
Chain 'portmapping_broute' doesn't exist.
CMD: /bin/ebtables -t broute -X portmapping_broute
Chain 'portmapping_broute' doesn't exist.
CMD: /bin/iptables -t mangle -D FORWARD -j portmapping_rt_tbl
iptables v1.4.18: Couldn't load target `portmapping_rt_tbl':No such file or directory
Try `iptables -h' or 'iptables --help' for more information.
CMD: /bin/iptables -t mangle -F portmapping_rt_tbl
iptables: No chain/target/match by that name.
CMD: /bin/iptables -t mangle -X portmapping_rt_tbl
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -t mangle -D PREROUTING -j portmapping_rt_tbl
ip6tables v1.4.18: Couldn't load target `portmapping_rt_tbl':No such file or directory
Try `ip6tables -h' or 'ip6tables --help' for more information.
CMD: /bin/ip6tables -t mangle -F portmapping_rt_tbl
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -t mangle -X portmapping_rt_tbl
ip6tables: No chain/target/match by that name.
CMD: /bin/ebtables -N portmapping_input
CMD: /bin/ebtables -P portmapping_input RETURN
CMD: /bin/ebtables -A INPUT -j portmapping_input
CMD: /bin/ebtables -N portmapping_output
CMD: /bin/ebtables -P portmapping_output RETURN
CMD: /bin/ebtables -A OUTPUT -j portmapping_output
CMD: /bin/ebtables -N portmapping_service
CMD: /bin/ebtables -P portmapping_service RETURN
CMD: /bin/ebtables -A portmapping_service -p ipv4 --ip-proto udp --ip-dport 67:68 -j DROP
CMD: /bin/ebtables -A portmapping_service -p ipv4 --pkttype-type multicast -j DROP
CMD: /bin/ebtables -A portmapping_service -p ipv6 --ip6-proto udp --ip6-dport 546:547 -j DROP
CMD: /bin/ebtables -A portmapping_service -p ipv6 --ip6-proto ipv6-icmp --ip6-icmp-type 133:134 -j DROP
CMD: /bin/ebtables -A portmapping_service -p ipv6 --ip6-proto ! ipv6-icmp --pkttype-type multicast -j DROP
CMD: /bin/ebtables -N portmapping
CMD: /bin/ebtables -P portmapping RETURN
CMD: /bin/ebtables -A FORWARD -j portmapping
CMD: /bin/ebtables -t broute -N portmapping_broute
CMD: /bin/ebtables -t broute -P portmaploop_eth_type=0xfffa
ping_broute RETURN
CMD: /bin/ebtables -t broute -A BROUTING -j portmapping_broute
CMD: /bin/iptables -t mangle -N portmapping_rt_tbl
CMD: /bin/iptables -t mangle -A FORWARD -j portmapping_rt_tbl
CMD: /bin/ip6tables -t mangle -N portmapping_rt_tbl
CMD: /bin/ip6tables -t mangle -A PREROUTING -j portmapping_rt_tbl
subr_qos_3.c: setupIPQ 6732
[setupLanItfMap:810] lan_itf_map.map[1].name:eth0.2.0
[setupLanItfMap:810] lan_itf_map.map[2].name:eth0.3.0
[setupLanItfMap:810] lan_itf_map.map[3].name:eth0.4.0
[setupLanItfMap:810] lan_itf_map.map[4].name:eth0.5.0
[setupLanItfMap:825] lan_itf_map.map[5].name:wlan0
[setupLanItfMap:825] lan_itf_map.map[6].name:wlan1
subr_qos_3.c: setupDefaultQdisc 6553
<subr_qos_3.c 6830 setupIPQ> Config QoS total upstream 2097144 Kbps downstream 1024000 Kbps
<fc_api.c 3716 rtk_fc_total_upstream_bandwidth_set> bandwidth=2097144
mib_info_id: get mib info id failed! (id=532)
CMD: /bin/iptables -t mangle -D POSTROUTING -p tcp --tcp-flags ALL ACK -m length --length 40:84 -m conntrack --ctstate ESTABLISHED -j TCP_SMALLACK_PROTECT
iptables v1.4.18: Couldn't load target `TCP_SMALLACK_PROTECT':No such file or directory
Try `iptables -h' or 'iptables --help' for more information.
CMD: /bin/iptables -t mangle -F TCP_SMALLACK_PROTECT
iptables: No chain/target/match by that name.
CMD: /bin/iptables -t mangle -X TCP_SMALLACK_PROTECT
iptables: No chain/target/match by that name.
CMD: /bin/ip6tables -t mangle -D POSTROUTING -p tcp --tcp-flags ALL ACK WLAN0 Dispatch mode: 1, cpu: 0
-m length --lengenable loopback detect
th 60:104 -m conntrack --ctstate ESTABLISHED -j TCP_SMALLACK_PROTECT
ip6tables v1.4.18: Couldn't load target `TCP_SMALLACK_PROTECT':No such file or directory
Try `ip6tables -h' or 'ip6tables --help' for more information.
CMD: /bin/ip6tables -t mangle -F TCP_SMALLACK_PROTECT
ip6tables: No chain/target/match by that name.
CMD: /bin/ip6tables -t mangle -X TCP_SMALLACK_PROTECT
ip6tables: No chain/target/match by that name.
CMD: /bin/sh -c echo 0x0 > /proc/fc/ctrl/flow_swFwded_aclTrapPri_mask
CMD: /bin/sh -c echo mode kernel > /proc/fc/ctrl/flow_delay
CMD: /bin/sh -c echo count 10 > /proc/fc/ctrl/flow_delay
mib_info_id: get mib info id failed! (id=533)
CMD: /bin/sysconf send_unix_sock_message /var/run/systemd.usock do_flow_flush 8
CMD: /bin/smbd -s /var/smb.conf --option=netbios name=Realtek --option=server string=Realtek Samba Server -D
echo "0 1 2 3" > /proc/sys/loopback_detect/lan_port_remapping
CMD: /bin/smuxctl --if eth0.2 --rx --hub 1-0:1.0: USB hub found
tags 1 --rule-rehub 1-0:1.0: 1 port detected
move-alias eth0.usb usb1: authorized to connect
2-rx-loopdetect+
CMD: /bin/smuxctl --if eth0.3 --rx --tags 1 --rule-remove-alias eth0.3-rx-loopdetect+
CMD: /bin/smuxctl --if eth0.4 --rx --tags 1 --rule-remove-alias eth0.4-rx-loopdetect+
CMD: /bin/smuxctl --if eth0.5 --rx --tags 1 --rule-remove-alias eth0.5-rx-loopdetect+
echo 0xfffa > /proc/loopback_detect_ethtype
CMD: /bin/loopback
[stop_upnp:20258] Stop miniupnpd! (wanIf=ppp0)
CMD: /bin/upnpctrl down ppp0 br0
lhub 2-0:1.0: USB hub found
oopback: LoopExihub 2-0:1.0: 1 port detected
stPeriod = 5
lousb usb2: authorized to connect
opback: LoopCancelPeriod = 300
loopback: EthernetType = 0xFFFA
loopback: vid = untagged
total 1 vlan values
upnpctrl(down): MINIUPNPD did not start!
ERROR: error to file open /var/spool/cron/crontabs/Admin .
CMD: /bin/sysconf send_unix_sock_message /var/run/systemd.usock do_LanV6Server restart
4 cpu
do_restartLanV6Server - 520
do_cleanLanV6Server - 580
<subr_pon.c,837>ERROR: failed to open /dev/rtk_tr142
CMD: /bin/sh -c echo 1 > /proc/sys/net/ipv6/conf/br0/dad_transmits
[setup_dhcpdv6_conf_with_single_br:795]
[resetUsbDevice]reset /sys/bus/usb/devices/usb1/authorized
[resetUsbDevice]reset /sys/bus/usb/devices/usb2/authorized
[resetUsbDevice]reset /sys/bus/usb/devices/usb3/authorized
hub 3-0:1.0: USB hub found
hub 3-0:1.0: 1 port detected
usb usb3: authorized to connect
[resetUsbDevice]reset /sys/bus/usb/devices/usb4/authorized
hub 4-0:1.0: USB hub found
hub 4-0:1.0: 1 port detected
usb usb4: authorized to connect
[update_monitor_list_file:23790] process_name = systemd, action = 1
CMD: /bin/monitord
System startup success !
===== monitord =====
Debug message: off
Monitor Timer: 15 sec.
Internet Systems Consortium DHCP Server 4.4.1
Copyright 2004-2018 Internet Systems Consortium.
All rights reserved.
For info, please visit https://www.isc.org/software/dhcp/
Config file: /var/dhcpd6.conf
Database file: /var/dhcpd6.leases
PID file: /var/run/dhcpd6.pid
Wrote 0 NA, 0 TA, 0 PD leases to lease file.
No subnet6 declaration for br0 (fe80::9228:f6ff:fe34:9b6d).
** Ignoring requests on br0. If this is not what
you want, please write a subnet6 declaration
in your dhcpd.conf file for the network segment
to which interface br0 is attached. **
Not configured to listen on any interfaces!
If you think you have received this message due to a bug rather
than a configuration issue please read the section on submitting
bugs on either our web page at www.isc.org or in the README file
before submitting a bug. These pages explain the proper
process and the information we find helpful for debugging.
exiting.
[stop_upnp:20258] Stop miniupnpd! (wanIf=ppp0)
upnpctrl(down): MINIUPNPD did not start!
===> Do flow flush <===
0
0List of Software versions
- 518_V300R02B15 (doesn't have upg_app, wget, wget_manage)
- 518_V300R02B21
- 518_V300R02B22
- 518_V300R02B25
- 518_V300R02B31
List of partitions (MTD)
| dev | size | erasesize | name |
|---|---|---|---|
| mtd0 | 000c0000 | 00020000 | "boot" |
| mtd1 | 00020000 | 00020000 | "env" |
| mtd2 | 00020000 | 00020000 | "env2" |
| mtd3 | 00020000 | 00020000 | "static_conf" |
| mtd4 | 07c60000 | 00020000 | "ubi_device" |
| mtd5 | 0081d000 | 0001f000 | "ubi_Config" |
| mtd6 | 00516000 | 0001f000 | "ubi_k0" |
| mtd7 | 0141a000 | 0001f000 | "ubi_r0" |
| mtd8 | 00516000 | 0001f000 | "ubi_k1" |
| mtd9 | 0141a000 | 0001f000 | "ubi_r1" |
List of volumes (UBI)
| dev | size | type | name |
|---|---|---|---|
| ubi0_0 | 8507392B | dynamic | "ubi_Config" |
| ubi0_1 | 5332992B | dynamic | "ubi_k0" |
| ubi0_2 | 21078016B | dynamic | "ubi_r0" |
| ubi0_3 | 5332992B | dynamic | "ubi_k1" |
| ubi0_4 | 21078016B | dynamic | "ubi_r1" |
To back up a volume, cat the appropriate /dev/ubi0_X device to a file or pipe, to restore a volume, use the ubiupdatevol utility.
This ONT supports dual boot.
Volumes ubi_k0 and ubi_r0 respectively contain kernel and rootfs of the first image, while ubi_k1 and ubi_r1 contain kernel and rootfs of the second one.
Useful files and binaries
Useful files
User Configuration:
/var/config/config.xmlCustom Default Configuration:
/var/config/config_custom_default.xmlCustom Configuration (on reset):
/var/config/custom_config.shHardware Configuration:
/var/config/config_hs.xmlStartup Script (ran at rc35 in init.d):
/var/config/run_test.shGPON/OMCI settings
Set OMCI mode to customized so versions don't reset
mib set OMCI_OLT_MODE 3Setting OMCI software version (ME 7)
mib set OMCI_SW_VER1 YOURSWVER
mib set OMCI_SW_VER2 YOURSWVERSetting OMCI vendor ID (ME 256)
mib set PON_VENDOR_ID VENDSetting ONU GPON Serial Number
mib set GPON_SN VEND1234ABCDSetting OMCI hardware version (ME 256)
mib set HW_HWVER YOURHWVERSetting OMCC version (ME 257), only accepts decimal values.
mib set OMCC_VER 128Setting Product Code (ME 257), only accepts decimal values.
mib set OMCI_VENDOR_PRODUCT_CODE 0Setting OMCI equipment ID (ME 257)
mib set GPON_ONU_MODEL YOUREQUIPMENTIDSetting VEIP slot ID (example for 255), only accepts decimal values.
mib set OMCI_VEIP_SLOT_ID 255Commit Changes.
mib commitVerification commands for settings changed above (all settings take a reboot to apply)
Verify SwVer (ME 7)
omcicli mib get 7Verify Vendor ID, HwVer, and G984 Serial (ME 256)
omcicli mib get 256Verify OMCC version, Equipment ID and Product Code (ME 257)
omcicli mib get 257Verify VEIP customized slot ID (ME 329)
omcicli mib get 329Advanced Settings
Setting management MAC
mib set ELAN_MAC_ADDR 1A2B3C4D5E6FSetting management IP
mib set LAN_IP_ADDR 192.168.8.1Switch PON Mode
# RJ45 Ethernet Mode
mib set PON_MODE 0
mib set WAN_PHY_PORT 0# GPON mode
mib set WAN_PHY_PORT 5
mib set PON_MODE 1# EPON mode
mib set WAN_PHY_PORT 5
mib set PON_MODE 2# Fiber Ethernet mode
mib set WAN_PHY_PORT 5
mib set PON_MODE 3RJ45 Ethernet PON_MODE mapping:
#for the first rj45 port (ge1)
mib set WAN_PHY_PORT 0
#for the 2nd rj45 port (ge2)
mib set WAN_PHY_PORT 1Checking the currently active image
nv getenv sw_activeBooting to a different image
# Switch to image 0
nv setenv sw_commit 0
nv setenv sw_tryactive 0# Switch to image 1
nv setenv sw_commit 1
nv setenv sw_tryactive 1Cloning of image 0 into image 1
cp /dev/ubi0_1 /tmp/
cp /dev/ubi0_2 /tmp/
ubiupdatevol /dev/ubi0_3 /tmp/ubi0_1
ubiupdatevol /dev/ubi0_4 /tmp/ubi0_2Rebooting the ONU
rebootEnable Ethernet Ports
# enable lan1
mib set SW_PORT_TBL.0.Enable 1
# disable lan1 power down state
diag port set phy-force-power-down port 0 state disable
#enable lan 2
mib set SW_PORT_TBL.1.Enable 1
# disable lan 2 power down state
diag port set phy-force-power-down port 1 state disable
mib commitEnable WiFi
# 5GHz
mib set WLAN_MBSSIB_TBL.0.wlanDisabled 0
# 2.4GHz
mib set WLAN1_MBSSIB_TBL.0.wlanDisabled 0
wlan_apply restartTeardown and other photos
