Hardware Specifications

Vendor/Brand	Nokia
Model	G-010S-A
ODM	✅[1]
Chipset	Lantiq PEB98035
Flash	16 MB
RAM	64 MB
CPU	MIPS 34Kc interAptiv
CPU Clock	400MHz
System	OpenWRT
HSGMII	Yes
Optics	SC/UPC
IP address	192.168.1.10
Web Gui	✅ user adminadmin, password ALC#FGU
SSH	✅ user ONTUSER, password SUGAR2A041
Telnet
Serial	✅ on SFP
Serial baud	115200
Serial encoding	8-N-1
Form Factor	miniONT SFP

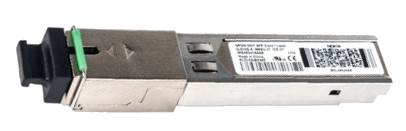

G-010S-A

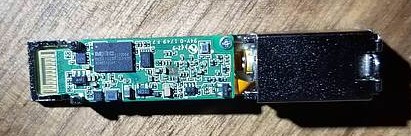

G-010S-A Teardown

Modifying firmware

The Nokia G-010S-A can be flashed with the Nokia G-010S-P firmware, provided the MTD layout has been changed beforehand to match the new one. For the full procedure, see this post on lafibre.info

List of software versions

• https://github.com/hwti/G-010S-A/tree/main/firmwares

Serial

The stick has a TTL 3.3v UART console (configured as 115200 8-N-1) that can be accessed from the SFP connector.

USB TTL(UART) Adapter	SFP 20pins Molex connector
3.3V	pin #15 and #16
TX	pin #3
RX	pin #6
GND	pin #14 and #10

Note

Try PIN 10 or other GND PINs if the connection doesn't work by using PIN 14.

Note

Some USB TTL adapters label TX and RX pins the other way around: try to swap them if the connection doesn't work.

List of partitions

dev	size	erasesize	name
mtd0	00040000	00010000	"uboot"
mtd1	00080000	00010000	"uboot_env"
mtd2	00600000	00010000	"linux"
mtd3	004d81b6	00010000	"rootfs"
mtd4	000b0000	00010000	"rootfs_data"
mtd5	00600000	00010000	"image1"
mtd6	00100000	00010000	"configfs"
mtd7	00210000	00010000	"logfs"
mtd8	00010000	00010000	"ri"
mtd9	00010000	00010000	"sfp"
mtd10	00010000	00010000	"ribackup"

List of software versions

• 3FE46398AFGA95
• 3FE46398AFGB89
• 3FE46398BFGA06
• 3FE46398BFGB18
• 3FE46398BFIB36
• 3FE46398BGCB22
• 3FE47111AFGB89
• 3FE47111BFHB32

See more info on: Firmwares G-010S-A

Usage

Enabling serial

fw_setenv bootdelay 5
fw_setenv asc0 0
fw_setenv preboot

GPON ONU status

Getting the operational status of the ONU

onu ploamsg

Getting information on the OLT vendor

omci_pipe.sh meg 131 0

Querying a particular OMCI ME

omci_pipe.sh meg MIB_IDX ME_IN

Where MIB_IDX is the MIB ID and ME_IN is the ME instance number

Getting/Setting Speed LAN Mode

Velue	Speed
4	1 Gbps / SGMII
5	2.5 Gbps / HSGMII with auto-neg on

To enable the interface to sync at 2.5 Gbps speeds / using HSGMII with auto-neg on:

fw_setenv sgmii_mode 5

To revert the change back to default:

fw_setenv sgmii_mode

To get the (H)SGMII Mode:

onu lanpsg 0

The link_status variable tells the current speed

GPON/OMCI settings

Enabling parameter modification

This setting must be set in order to perform other parameter modifications

ritool set OperatorID 0000

Getting/Setting ONU GPON Serial Number

To check the current serial number:

onu gtcsng

To set the current serial number:

ritool set MfrID ABCD
ritool set G984Serial 012345678
ritool set YPSerialNum 012345678

Getting/Setting ONU GPON PLOAM password

To check the current password (the password field contains decimal values of ASCII characters):

onu gtccg

This value can be changed using the web interface.

Getting/Setting OMCI software version (ME 7)

The software version must be changed by directly modifying firmware by using the patches found in the wiki's page about the Nokia G-010-A ONT and then adding a folder 0001_swversion that contins a file patch.sh with the following content:

#!/bin/sh

set -e

ROOTFS=$1

echo "Changing to software version desidered"
sed -i s/3FE46398BGCB22/3FE45655BOCK99/g "$ROOTFS/usr/etc/buildinfo"

Where 3FE46398BGCB22 is the current software version and 3FE45655BOCK99 the desired software version

Getting/Setting OMCI hardware version (ME 256)

ritool set HardwareVersion 3FE47211EGAA
ritool set ICS 01

Getting/Setting OMCI equipment ID (ME 257)

This ONT is designed to save Nokia's equipment ID, specifically to set the equipment ID of a Nokia G-010G-Q the following commands are to be used:

ritool set CleiCode __________
ritool set Mnemonic G-010G-Q__

Where CleiCode is the prefix and Mnemonic the postfix.

Advanced settings

Transferring files to the stick

Info

If you use a modern OpenSSH version (e.g. >= 8.8) you will have to use the legacy protocol and enable some deprecated algorithms: scp -oKexAlgorithms=+diffie-hellman-group1-sha1 -oHostKeyAlgorithms=+ssh-dss [...]

# scp rootfs.bin root@192.168.1.10:/tmp/

Backup of all partition

Make a backup of all partitions, an easy way is to run these commands:

• On the stick run:

cat /proc/mtd

• For each mtdX run this command in the lantiq shell:

cp /dev/mtdX /tmp

Info

If you use a modern OpenSSH version (e.g. >= 8.8) you will have to use the legacy protocol and enable some deprecated algorithms: scp -oKexAlgorithms=+diffie-hellman-group1-sha1 -oHostKeyAlgorithms=+ssh-dss [...]

And in the computer shell:

scp ONTUSER@192.168.1.10:/tmp/mtdX ./

Checking the currently active image

upgradestatus

Setting management MAC

ritool set MACAddress 12:34:56:78:9A:BC

Setting management IP

ifconfig eth0:1 192.168.1.10 netmask 255.255.255.0

Flashing a new rootfs via SSH

Info

Only the inactive image can be flashed

Info

It is recommended to enable serial access via TTL

The following commands are used to flash a new rootfs to image1 and then boot to it:

mtd write /tmp/rootfs.bin image1
update_env_flag 1
reboot

Disabling Dying Gasp

uci set gpon.gtc.nDyingGaspEnable='0'; uci commit gpon

Rebooting the ONU

reboot

Miscellaneous commands

cat /configs/image_version
cat /usr/etc/buildinfo
ritool dump
omciMgr

Miscellaneous Links

• G-010S-A
• Usage GPON module SFP in Spain
• Bypassing the HH3K up to 2.5Gbps using a BCM57810S NIC
• Nokia G-010S-A Pin 6 Iusse - Rsaxvc.net
• Might require solder mod in order to work with BCM57810S NIC

---

---
