Hardware Specifications

Vendor/Brand	Nokia
Model	G-010G-P
ODM	CIG
ODM Product Code	G-97C1
Chipset	Realtek RTL9601B
Flash
RAM
System	Linux (Luna SDK 1.9.0)
2.5GBaseT	No
Optics	SC/APC
IP address	192.168.100.1 (after a factory reset the ONT uses 10.89.42.157/16)
Web Gui	✅ user admin, password 1234
SSH
Telnet	✅ user root, password huigu309
Serial	✅
Serial baud	115200
Serial encoding	8-N-1
Form Factor	ONT

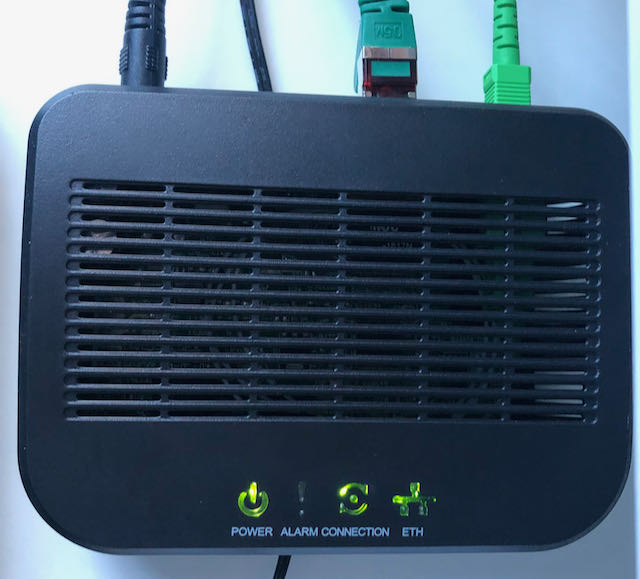

Nokia G-010G-P

List of software versions

• 3FE45655AOCK94
• 3FE45655AOCK88

Usage of GponSLID

Access Full Shell

To access a complete linux shell just type:

#ONT>system
#ONT/system>shell

To exit the shell and reach the parent menu type exit or x, in each menu the help command will show how to use the shell

GPON ONU status

Getting the operational status of the ONU

#ONT>traffic
#ONT/system>pon
#ONT/system/pon>show link

 ----------------- LINK STATE -----------------
 Link State:              ACTIVE
 Operation State Machine: OPERATION (O5)
 ----------------- STATE  END -----------------

Querying a particular OMCI ME

#ONT>system
#ONT/system>mib
#ONT/system/mib>show 256
Table Ontg, Ont-g, total 1 instances

EntityID                  = 0x0000
VID                       = "ALCL"
Version                   = AA BB CC DD EE FF 11 22 33 44 55 66 00 00
SerialNum                 = AA BB CC DD EE FF 11 22
TraffMgtOpt               = 0
AtmCCOpt                  = 0
BatteryBack               = 1
AdminState                = 0
OpState                   = 0
OnuSurvivalTime           = 0
Loid                      = ""
Password                  = ""
AuthState                 = 0
OntState                  = 1

GPON/OMCI settings

Committing changes to the OMCI MIB tables for GPON operation

#ONT>system
#ONT/system>mib
#ONT/system/mib>reset

Getting/Setting ONU GPON Serial Number

#ONT>system
#ONT/system>misc
#ONT/system/misc>eqsn set "ALCL00000001"
---ATECMDRESULT--- OK
#ONT/system/misc>eqsn get
eqsn: ALCL00000001
---ATECMDRESULT--- OK

Getting/Setting PLOAM

#ONT>system
#ONT/system>misc
#ONT/system/misc>pon_passwd set "123456789"
---ATECMDRESULT--- OK
#ONT/system/misc>pon_passwd get
pon_passwd: 31323334353637383900
---ATECMDRESULT--- OK
#ONT/system/misc>register_id set "123456789"
---ATECMDRESULT--- OK
#ONT/system/misc>register_id get
pon_passwd: 31323334353637383900
---ATECMDRESULT--- OK

Setting OMCI software version (ME 7)

The following command must be typed into the standard linux shell:

# echo SWVER=3FE49337AOCK80 > /mnt/rwdir/sys.cfg

Getting/Setting OMCI hardware version (ME 256)

#ONT>system
#ONT/system>misc
#ONT/system/misc>eqvid get
eqvid: 3FE45458ABAA06
hex_eqvid: 0x3346453435343538414241413036
---ATECMDRESULT--- OK
#ONT/system/misc>eqvid set "YOUR_CUSTOM_VID"

Getting/Setting OMCI vendor ID (ME 256)

#ONT>system
#ONT/system>misc
#ONT/system/misc>vendor get
vendor: ALCL
---ATECMDRESULT--- OK
#ONT/system/misc>vendor set "ALCL"
---ATECMDRESULT--- OK

Getting/Setting OMCI equipment ID (ME 257)

#ONT>system
#ONT/system>misc
#ONT/system/misc>eqid set "YOUR_CUSTOM_EQUID"
---ATECMDRESULT--- OK
#ONT/system/misc>eqid get
eqid: YOUR_CUSTOM_EQUID
hex_eqid: 0x594F55525F435553544F4D5F4551554944000000000000
---ATECMDRESULT--- OK

Getting/Setting MAC address

mac1 = Lower MAC ID (printed on label)

mac2 = Upper MAC ID (usually = mac1+3)

#ONT>system
#ONT/system>misc
#ONT/system/misc>mac1 get
mac1: aa.bb.12.34.56.78
---ATECMDRESULT--- OK
#ONT/system/misc>mac2 get
mac2: aa.bb.12.34.56.7b
---ATECMDRESULT--- OK
#ONT/system/misc>mac1 set 12:34:56:11:22:33
---ATECMDRESULT--- OK
#ONT/system/misc>mac2 set 12:34:56:11:22:44
---ATECMDRESULT--- OK

Advanced settings

Setting management IP

#ONT>system
#ONT/system>misc
#ONT/system/misc>admin_ip get
admin_ip: 192.168.100.1
---ATECMDRESULT--- OK
#ONT/system/misc>admin_ip set 192.168.1.1
#ONT/system/misc>admin_mask get
admin_mask: 255.255.255.0
---ATECMDRESULT--- OK
#ONT/system/misc>admin_mask set 255.255.255.0

(Re-)enable webinterface

#ONT>system
#ONT/system>manu
#ONT/system/manu>internal_ip_en

Miscellaneous Links

• MIB file parser for NOKIA's GPON ONTs (helps you parsing the .mib file located in /mnt/rwdir)
