Hardware Specifications

Vendor/Brand	Nokia
Model	G-010S-P
ODM	SourcePhotonics
ODM Product Code
Chipset	Lantiq PEB98035
Flash	16 MB
RAM	64 MB
CPU	MIPS 34Kc interAptiv
CPU Clock	400MHz
System	OpenWRT
HSGMII	Yes
Optics	SC/APC
IP address
Web Gui	Can be enabled
SSH	✅ user ONTUSER, password SUGAR2A041
Telnet
Serial	✅ on SFP
Serial baud	115200
Serial encoding	8-N-1
Form Factor	miniONT SFP

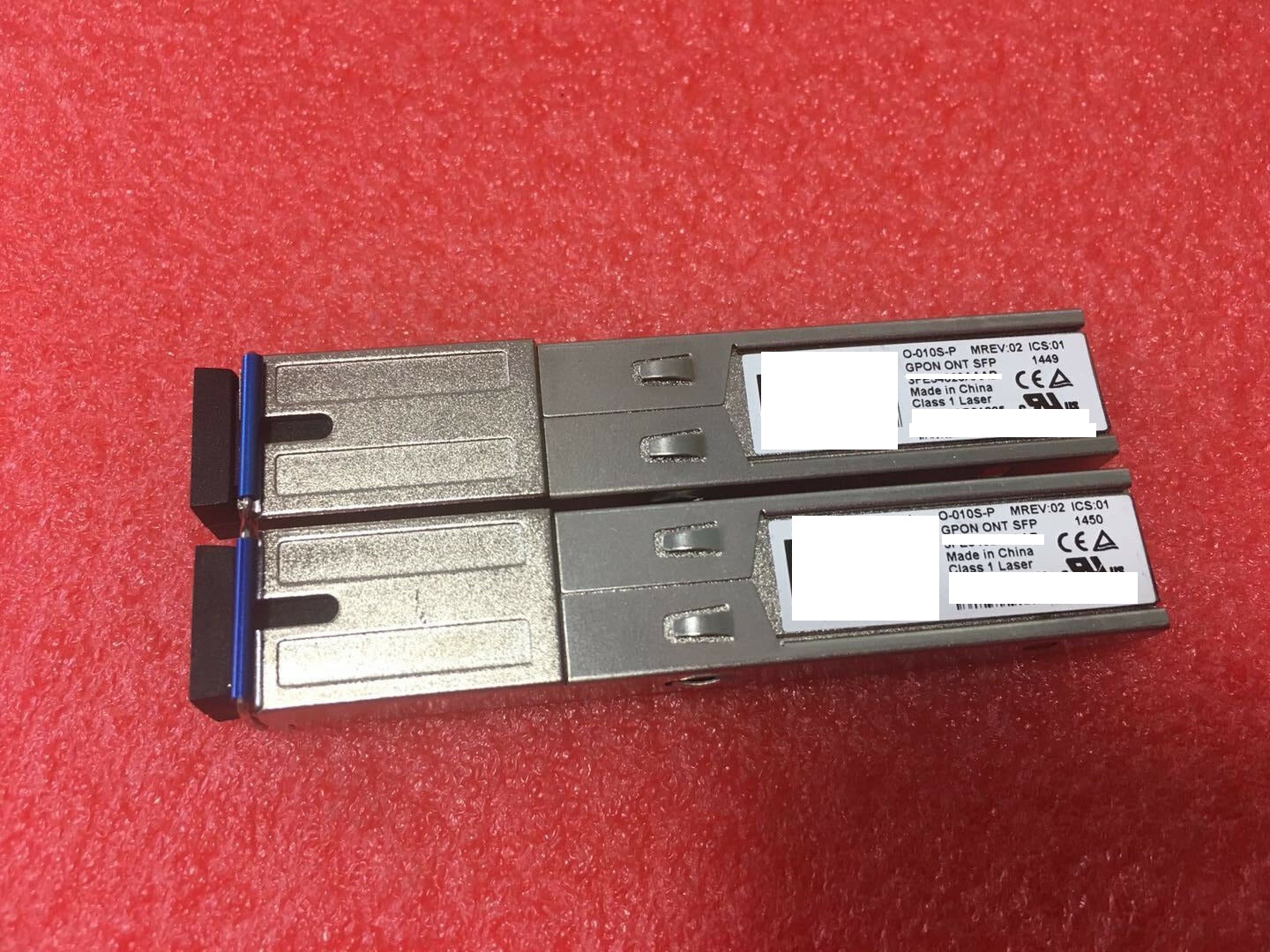

G-010S-P

G-010S-P and MA5671A Teardown

::: warning Warning G-010S-P and other models will not expose an ethernet interface unless the fiber cable is connected ([source](https://forum.mikrotik.com/viewtopic.php?t=116364&start=300)) :::

Firmware is interchangeable with:

• Huawei MA5671A
• FS.com GPON ONU Stick with MAC / SourcePhotonics SPS-34-24T-HP-TDFO
• Hilink HL23446
• Dasan H650SFP
• DpOptics D23446
• Photonics SPS-34-24T-HP-TDFO {.text-red-200} The Nokia G-010S-A can be flashed with the Nokia G-010S-P firmware, provided the MTD layout has been changed beforehand to match the new one. For the full procedure, see the post on lafibre.info

Serial

The stick has a TTL 3.3v UART console (configured as 115200 8-N-1) that can be accessed from the SFP connector.

USB TTL(UART) Adapter	SFP 20pins Molex connector
3.3V	pin #15 and #16
TX	pin #2
RX	pin #7
GND	pin #14 and #10

Note

Try PIN 10 or other GND PINs if the connection doesn't work by using PIN 14.

Note

Some USB TTL adapters label TX and RX pins the other way around: try to swap them if the connection doesn't work.

List of partitions

dev	size	erasesize	name
mtd0	00040000	00010000	"uboot"
mtd1	00080000	00010000	"uboot_env"
mtd2	00740000	00010000	"linux"
mtd3	0061eedc	00010000	"rootfs"
mtd4	00370000	00010000	"rootfs_data"
mtd5	00800000	00010000	"image1"

General Settings and Useful Commands

Disabling Dying Gasp

fw_setenv nDyingGaspEnable 0

Enabling the Web UI

To activate the web-ui you can use this guide from dslreport forum archived on archive.org.

Miscellaneous Links

• alcatel_lucent-lantiq_falcon
• uboot lantiq falcon
• Usage GPON module SFP in Spain
